Onkyo TXSR 674 Service Bulletin
This is the 3 pages manual for Onkyo TXSR 674 Service Bulletin.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXSR 674 Service Bulletin (Ocr-read)
Page 1

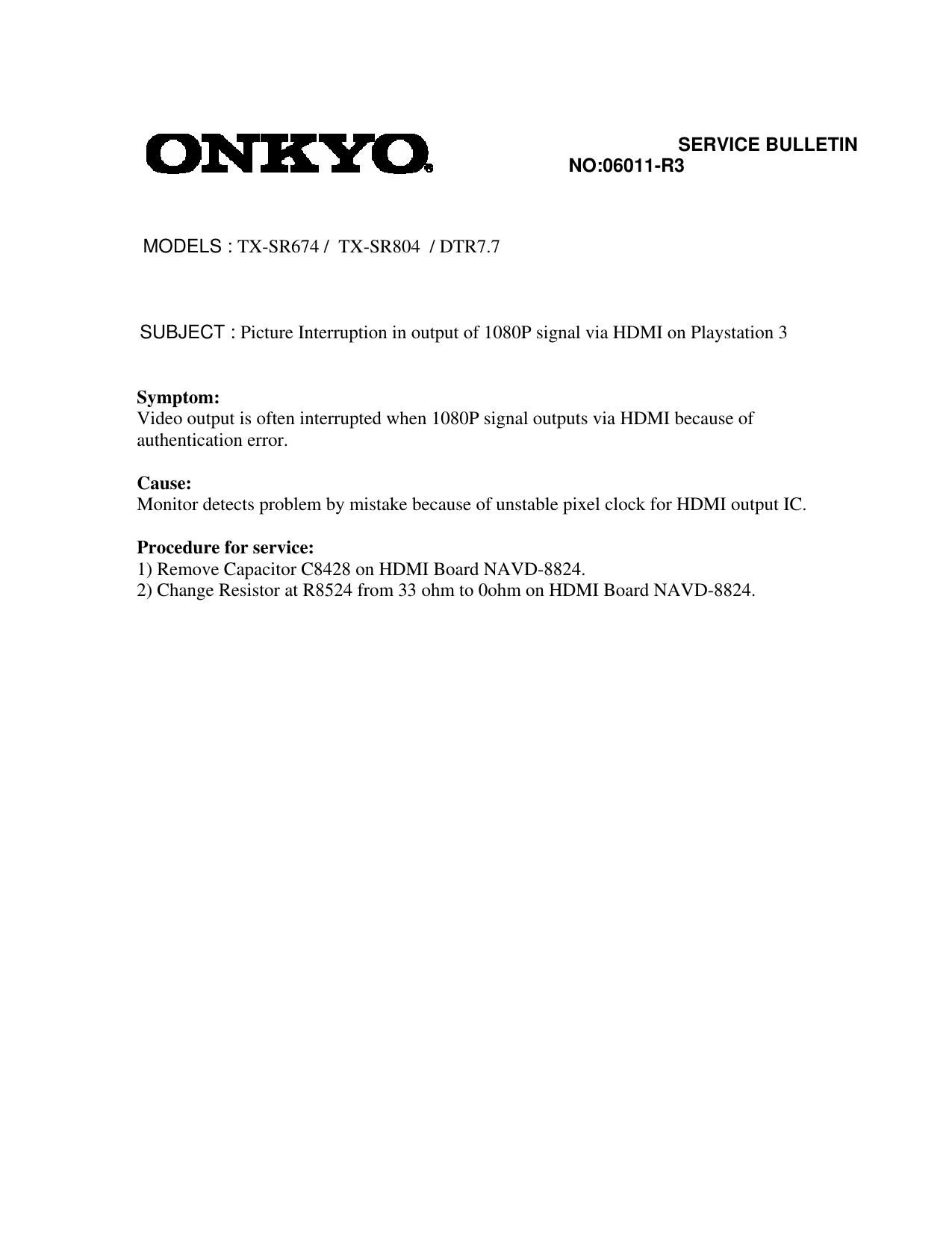

Note: Th e resistan ce value of R8524 was ch anged to 22o hm first and th en to 10o hm ag ain . and finally to 0ohm . 0ohm is the best and 10ohm is better, but 10ohm and 22ohm are also effec\ tive. Therefore, when 22 or 10 ohm Resistor is mounted at R8524, it is not necessary to replace it by 0ohm Resistor as long as the unit \ has no problem.
Page 2
Parts : Circuit No. Part name Description Part No. Q'ty R8524 C-CARBON R RN72K1J-000JE 435030004R1 1 pc Application to production: This measure has been applied to production. Mark "F"/"A" or "G"/"B" has been added to the end of serial numbers. "F"/"A" means 22ohm at R8524, and "G"/"B" means 10ohm at R8524. and "H"/"C" means 0 ohm at R8524. The range of serial numbers of target units are as follows: TX-SR674 MDD, MDC (UPC Lavel ) F: N/A G: 14451st or later H 19,151~ TX-SR804 MDC (UPC Lavel) A: 4101st to 6400th B: 6401th or later C : unknown DTR-7.7 MDD (UPC Lavel) H: 215\ 1st or later e.g. Serial Number: ###1##2345 was manufactured as the 12345th unit of the model.
