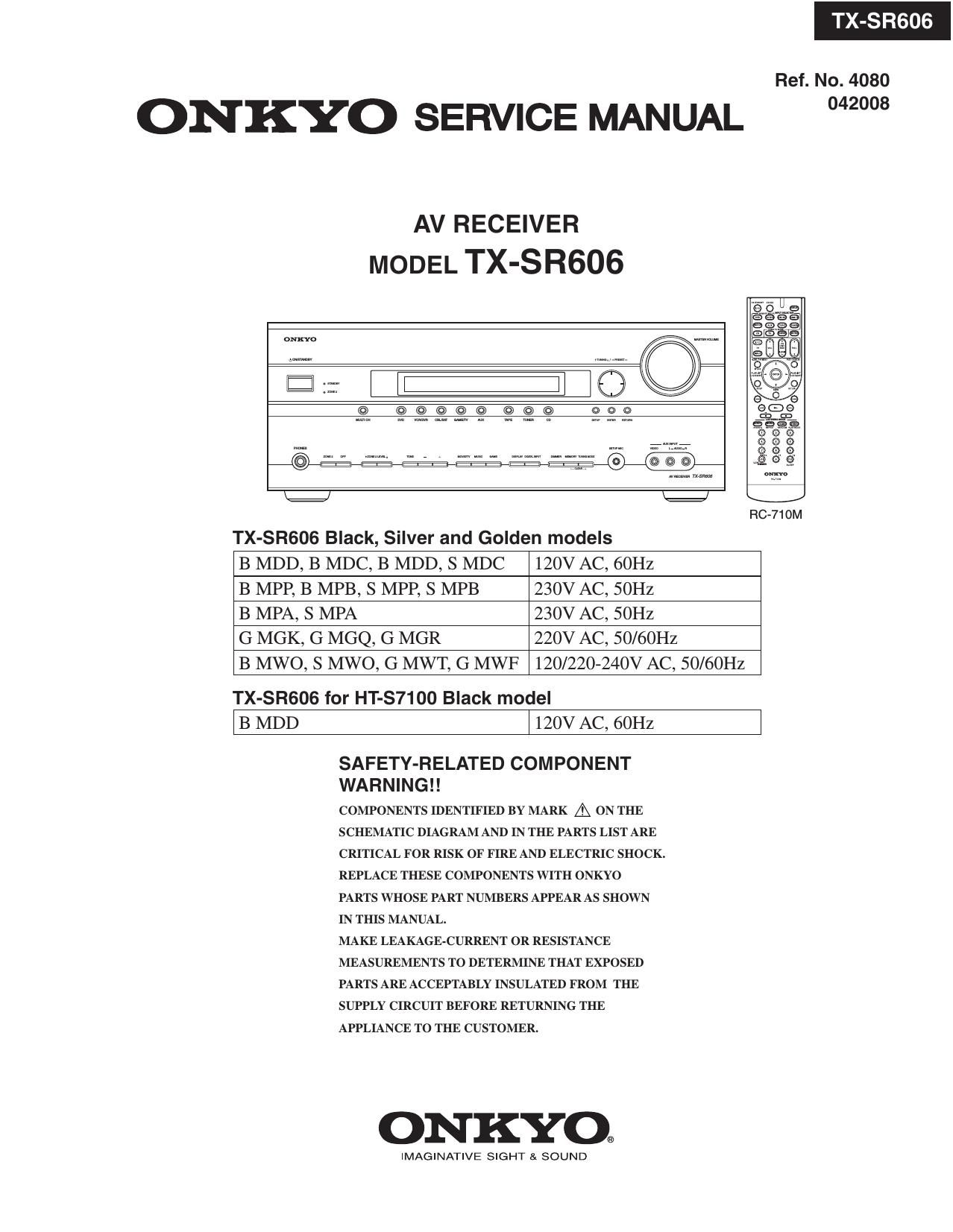

Page 1
TX-S R606
Ref. No. 4080
ONKYO SERVICE MANUAL 2"
AV RECEIVER
MODEL TX-SR606
TX-SRGOG Black, Silver and Golden models
B MDD, B MDC, B MDD, S MDC 120V AC, 60Hz
B MPP, B MPB, S MPP, S MPB 230V AC, SOHZ
B MPA, S MPA 230V AC, SOHZ
G MGK, G MGQ, G MGR 220V AC, 50/60Hz
B MWO, S MWO, G MWT, G MWF 120/220-240V AC, 50/60Hz
TX-SRGOG for HT-S7100 Black model
\ B MDD \ 120V AC, 60Hz
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE To THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
Page 100
DEBUG MODE-4
SERVICE INFORMATION MODE
Trouble Shooting by Displaying Service information
This service information display system is helpful in analyze the status when the unit goes into Protect mode and is powered off.
Pay attention that the status will change if a button is pushed.
1. Press and hold down DISPLAY button, then press ON/STANDBY button while the unit is powered ON.
The version of main microprocessor is displayed only for 3 seconds.
*Number depends on the version.
2 Press SETUP button within 3 seconds above, the following informations are displayed.
#
Power off Cause Temperature Volume Level Listenning Mode
P : Protect : xx F or xx C xx xx ---> Refer to the code list below.
- : Other
Listening Mode Code List
Code Listening Mode Code Listening Mode Code Listening Mode
01 Pure Audio 26 Neo:6 Cinema 30 DTS-HD High Resolution
02 Direct 27 Neo:6 Music 30 DTS-HD Master Audio
03 Stereo 28 Neural Surround 30 DSD
04 Mono 4O PLII Movie THX 39 +PLIIx Movie
07 Mono Movie 41 PLIIx Movie THX 3A +PLIIx Music
09 Orchestra 42 Neo:6 Cinema THX 38 Dolby EX
0A Unplugged 43 PLII Movie THX Games 37 +Neo:6
OB Studio-Mix 44 Neo:6 Cinema THX Games 31 DTS Matrix
00 TV Logic 29 Neural-THX 31 DTS Discrete
0D All CH Stereo 30 Dolby Digital 50 THX Cinema
0E Full Mono 30 DTS 58 THX Surround EX
0F PLII Movie T-D BB DTS96/24 5C THX UltraZ Cinema
20 PLII Movie 30 AAC 5D THX Music Mode
21 PLII Music 30 MultiCh 5E THX Games
22 PLII Game 30 Dolby Digital Plus 59 +PLIIx Movie THX
23 PLIIx Movie 30 Dolby TrueHD 57 +Neo:6 THX
24 PLIIx Music 3D +Neural»THX
25 PLIIx Game 51 DTX Matrix THX
52 DTS Discrete THX
3 Press SETUP button again The following information are displayed.
Time after Power on Time after Initialize
xx : xx xx hour
4 Press RETURN button. The information will be cleared.
ProtectData CLFI
