Onkyo TXSR 602 Service Manual
This is the 119 pages manual for Onkyo TXSR 602 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXSR 602 Service Manual (Ocr-read)
Page 1

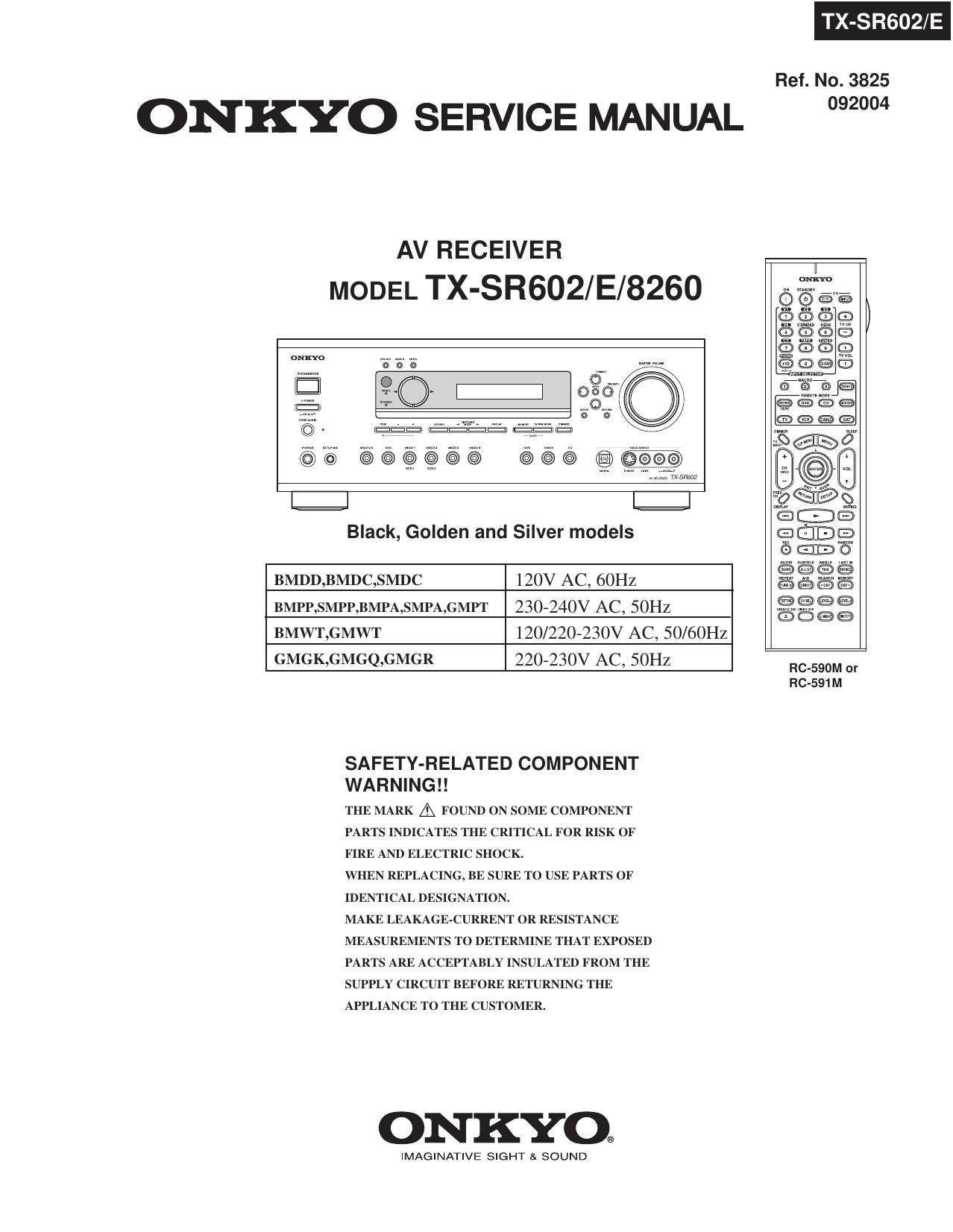

ONKYO SERVICE MANUAL
AV RECEIVER
MODEL TX-SR602/E/8260
@©
szRsaz
%
Black, Golden and Silver models
TX-SR602/ E
Ref. No. 3825
092004
BMDD,BMDC,SMDC 120V AC, 60Hz
BMPP,SMPP,BMPA,SMPA,GMPT 230-240V AC, SOHZ
BMWT,GMWT 120/220-230V AC, 50/60Hz
GMGK,GMGQ,GMGR 220-230V AC, 50Hz
SAFETY-RELATED COMPONENT
WARNING
THE MARK A FOUND ON SOME COMPONENT
PARTS INDICATES THE CRITICAL FOR RISK OF
FIRE AND ELECTRIC SHOCK.
WHEN REPLACING, BE SURE TO USE PARTS OF
IDENTICAL DESIGNATION.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO.
IMAGINATIVE SIGHT & SOUND
RC-590M or
FIG-591 M
