Onkyo TXSR 602 E Service Manual
This is the 115 pages manual for Onkyo TXSR 602 E Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXSR 602 E Service Manual (Ocr-read)
Page 1

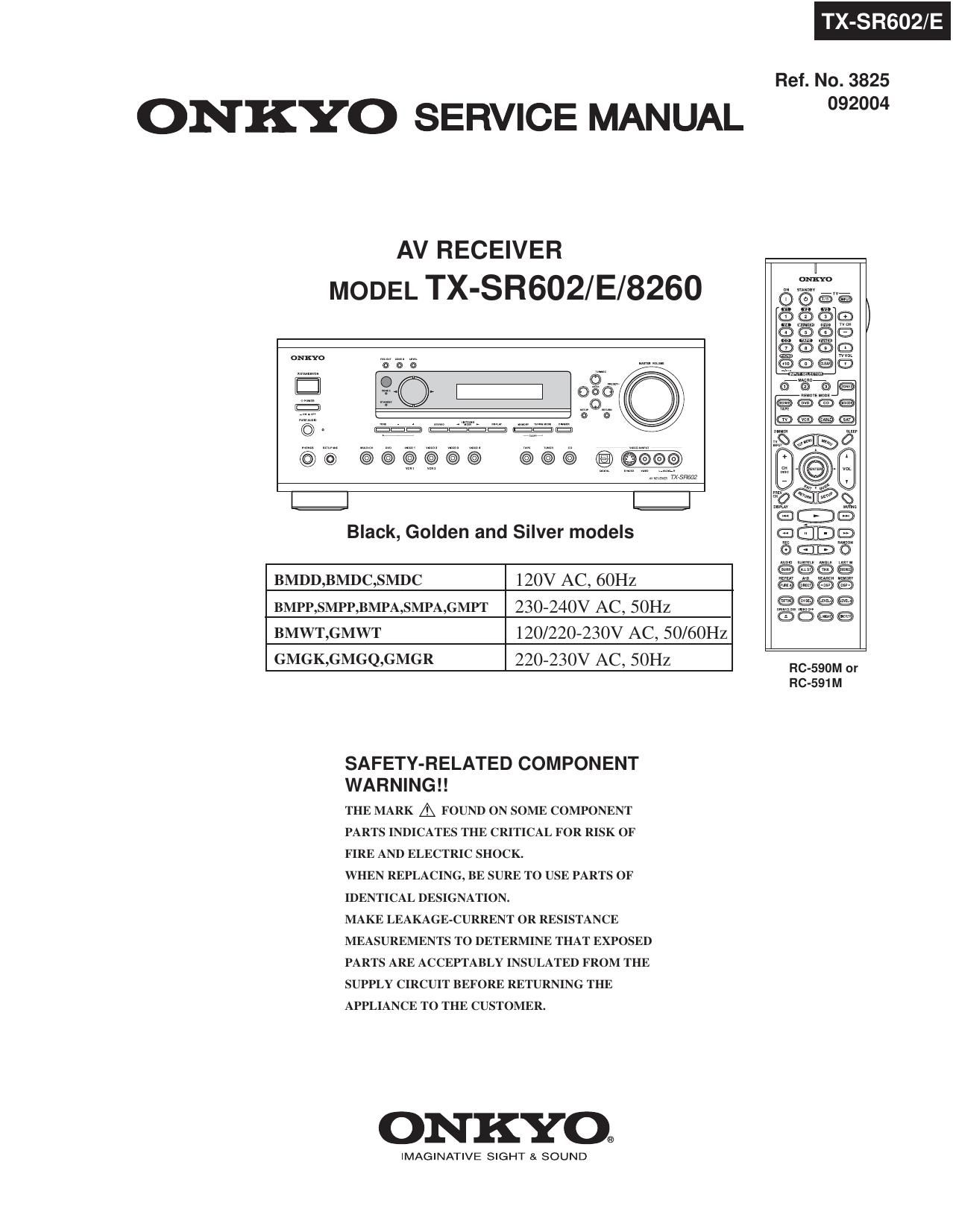

ONKYO SERVICE MANUAL
AV RECEIVER
MODEL TX-SR602/E/8260
@©
szRsaz
%
Black, Golden and Silver models
TX-SR602/ E
Ref. No. 3825
092004
BMDD,BMDC,SMDC 120V AC, 60Hz
BMPP,SMPP,BMPA,SMPA,GMPT 230-240V AC, SOHZ
BMWT,GMWT 120/220-230V AC, 50/60Hz
GMGK,GMGQ,GMGR 220-230V AC, 50Hz
SAFETY-RELATED COMPONENT
WARNING
THE MARK A FOUND ON SOME COMPONENT
PARTS INDICATES THE CRITICAL FOR RISK OF
FIRE AND ELECTRIC SHOCK.
WHEN REPLACING, BE SURE TO USE PARTS OF
IDENTICAL DESIGNATION.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO.
IMAGINATIVE SIGHT & SOUND
RC-590M or
FIG-591 M
