Onkyo TXSR 600 E Service Manual

Extracted text from Onkyo TXSR 600 E Service Manual (Ocr-read)

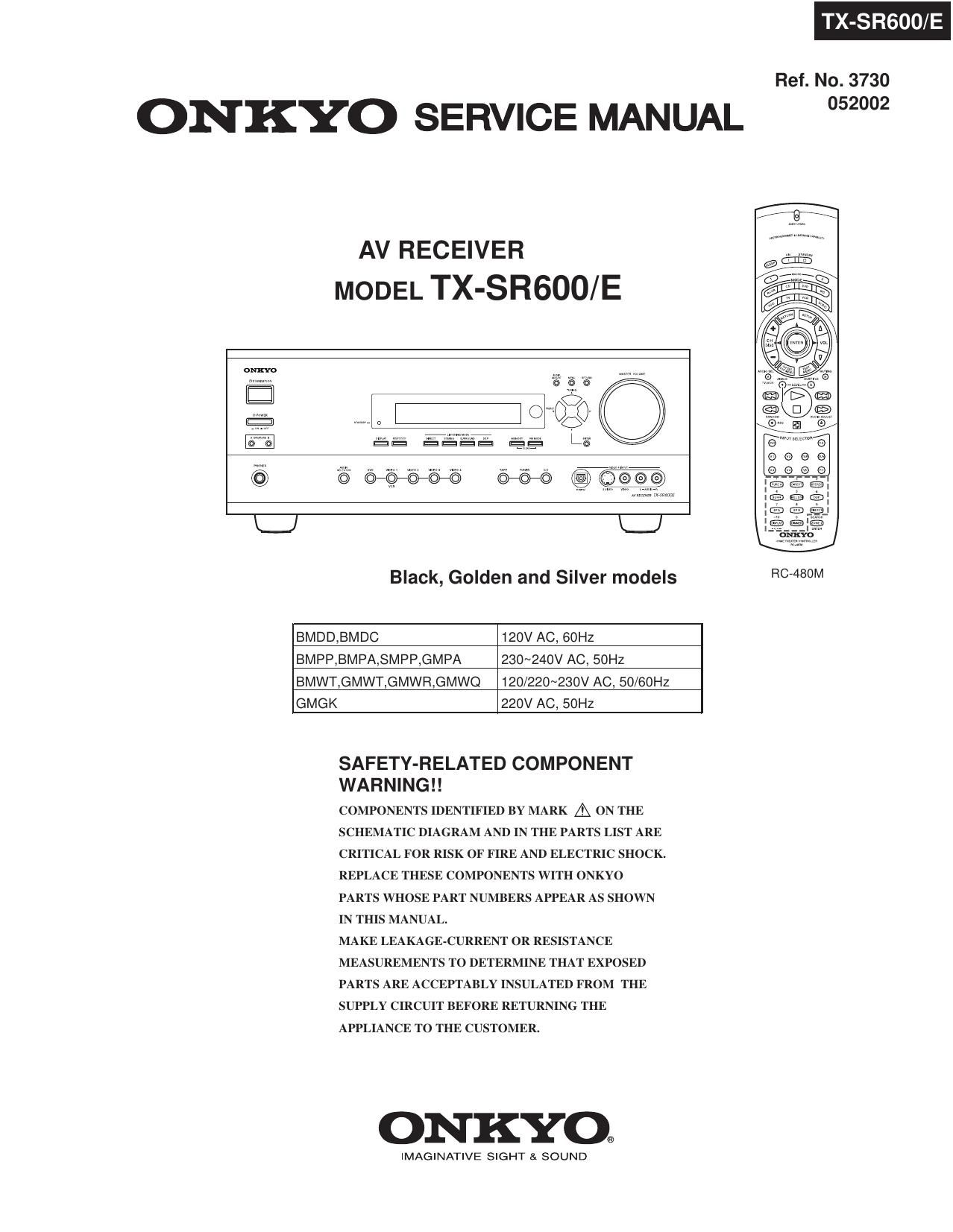

Page 1

ONKYO SERVICE MANUAL

AV RECEIVER
MODEL TX-SR600/ E

6 @+ .44 6+. _):@@
\_J

Black, Golden and Silver models

T SRBOO/

Ref. No. 3730
052002

BMDD,BMDC

120v AC, 60Hz

BMPP,BMPA,SMPP,GMPA

230~240V AC. 50HZ

BMWT,GMWT,GMWR,GMWQ

120/220~23OV AC, 50/60Hz

GMGK

220V AC, 50HZ

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT & SOUND

RC-480M
