Onkyo TXSR 575 Service Manual
This is the 75 pages manual for Onkyo TXSR 575 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXSR 575 Service Manual (Ocr-read)

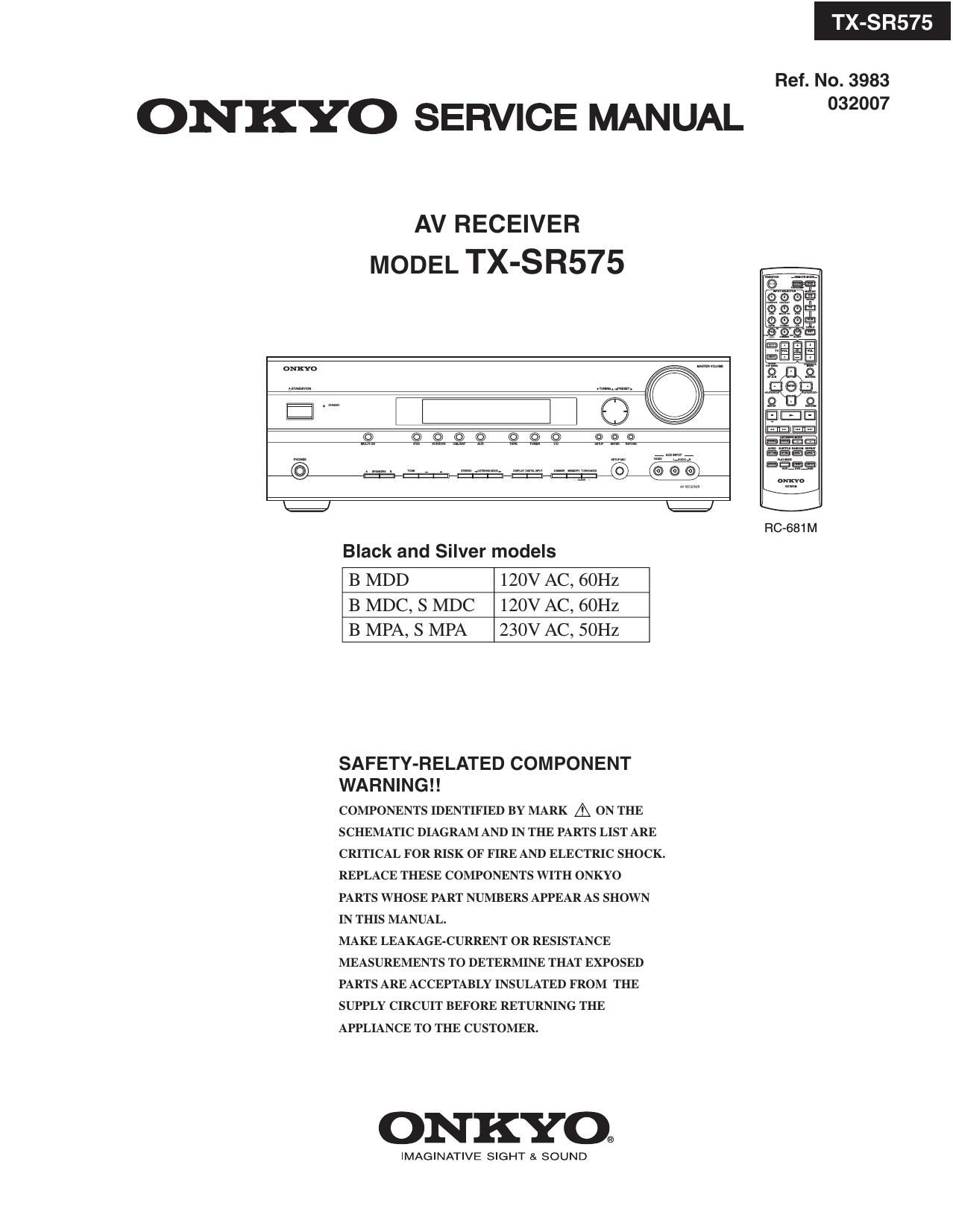

Page 1
TX-S R575
Ref. No. 3983
ONKYO SERVICE MANUAL °32°°7
AV RECEIVER
MODEL TX-S R575
©©©
O
RC-681 M
Black and Silver models
B MDD 120V AC, 60Hz
B MDC, S MDC 120V AC, 60Hz
B MPA, S MPA 230V AC, SOHZ
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE To THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT SI SOUND
Page 21
PACKING PROCEDURE
TX-S R575
Left side
marking
Front side
marking
Large side
\
Front side
Front side
marking
Right side
marking
