Onkyo TXSR 505 Service Manual
This is the 73 pages manual for Onkyo TXSR 505 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXSR 505 Service Manual (Ocr-read)
Page 1
TX-SR505/505E
Ref. No. 3987

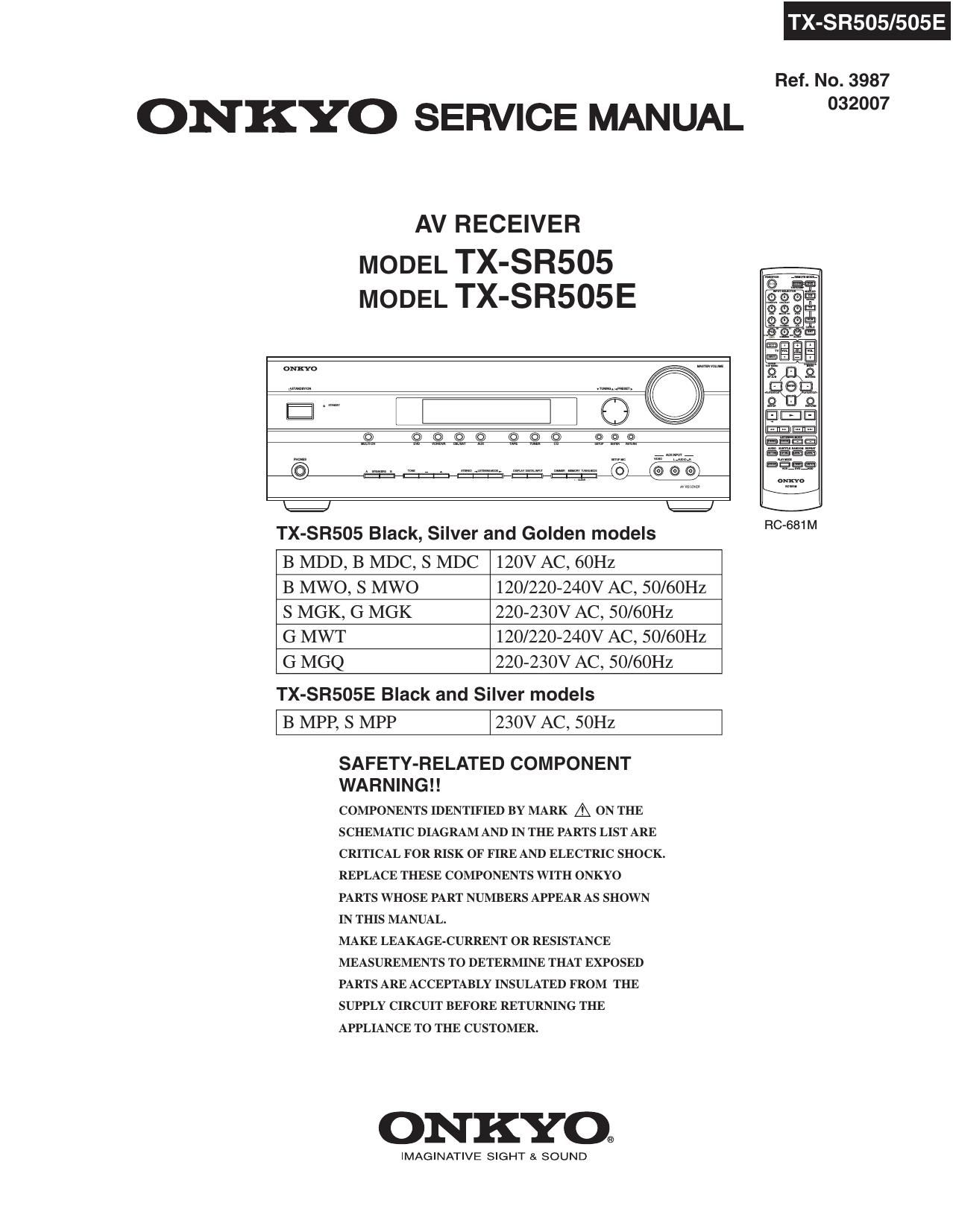

ONKYO SERVICE MANUAL °32°°7
AV RECEIVER
MODEL TX-SR505
MODEL TX-SR505E
I Q
O
TX-SR505 Black, Silver and Golden models RC'BBIM
B MDD, B MDC, S MDC 120V AC, 60Hz
B MWO, S MWO 120/220-240V AC, 50/60Hz
S MGK, G MGK 220-230V AC, 50/60Hz
G MWT 120/220-240V AC, 50/60Hz
G MGQ 220-230V AC, 50/60Hz
TX-SR505E Black and Silver models
| B MPP, s MPP |230V AC, SOHZ
SAFETY-RELATED COMPONENT
WA R N I N G I I
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE To THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT SI SOUND
Page 21
PACKING PROCEDURE-2
TX-SR505E
Left side
marking
Front side
marking
TX-SR505/505E
Large side
Front side
Front side
marking
Right side
marking
