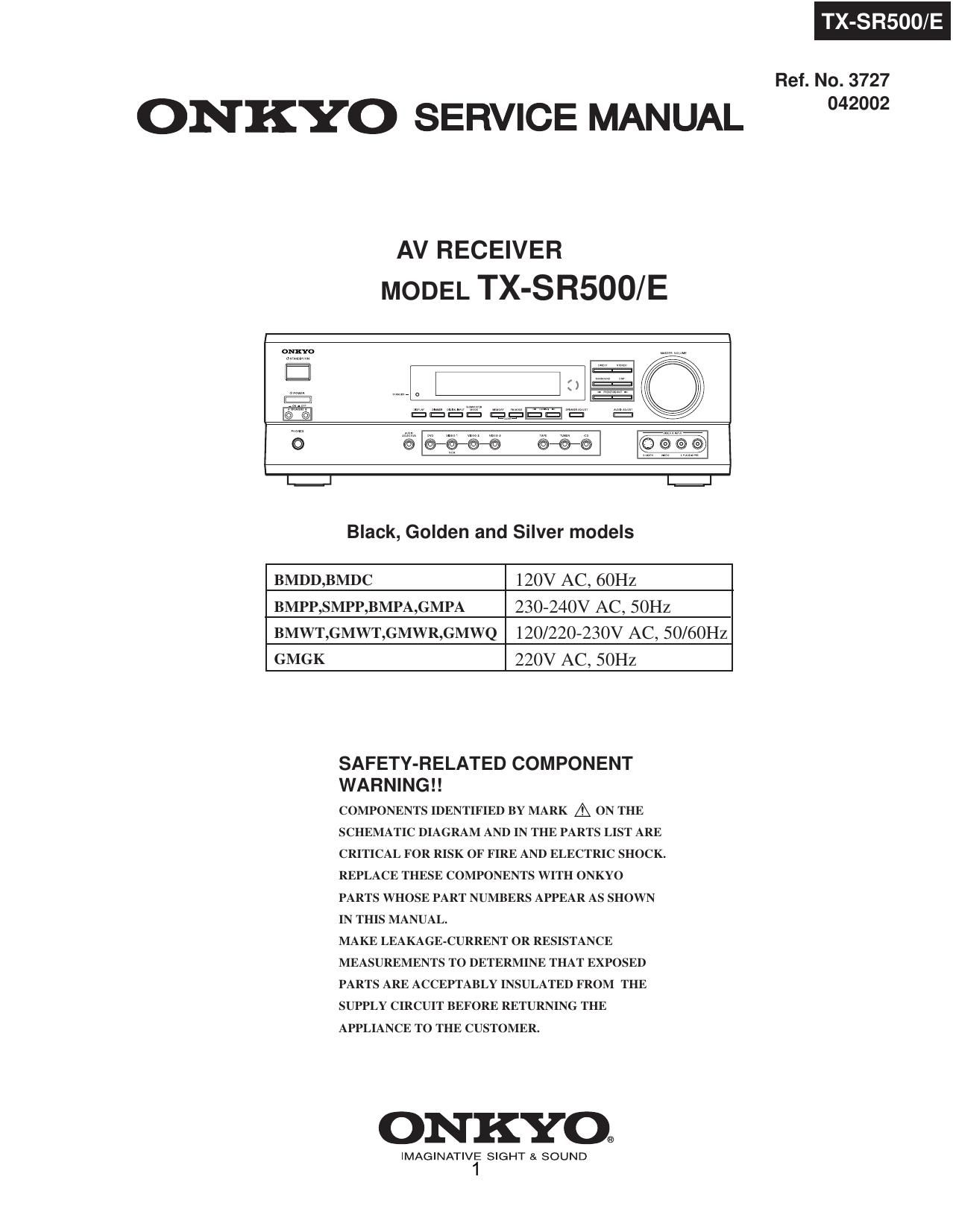

ONKYO SERVICE MANUAL

AV RECEIVER
MODEL TX-SR500/ E

@ ©
6
L.=J
Black, Golden and Silver models
BMDD,BMDC 120V AC, 60Hz
BMPP,SMPP,BMPA,GMPA 230-240V AC, 50Hz
BMWT,GMWT,GMWR,GMWQ 120/220-230V AC, 50/60Hz
GMGK 220V AC, SOHZ

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO

|MAGINAT|V1E SIGHT & SOUND

X-SRSOO/ E

I

Ref. No. 3727
042002
