Onkyo TXSR 500 Service Bulletin 2
This is the 3 pages manual for Onkyo TXSR 500 Service Bulletin 2.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXSR 500 Service Bulletin 2 (Ocr-read)
Page 1

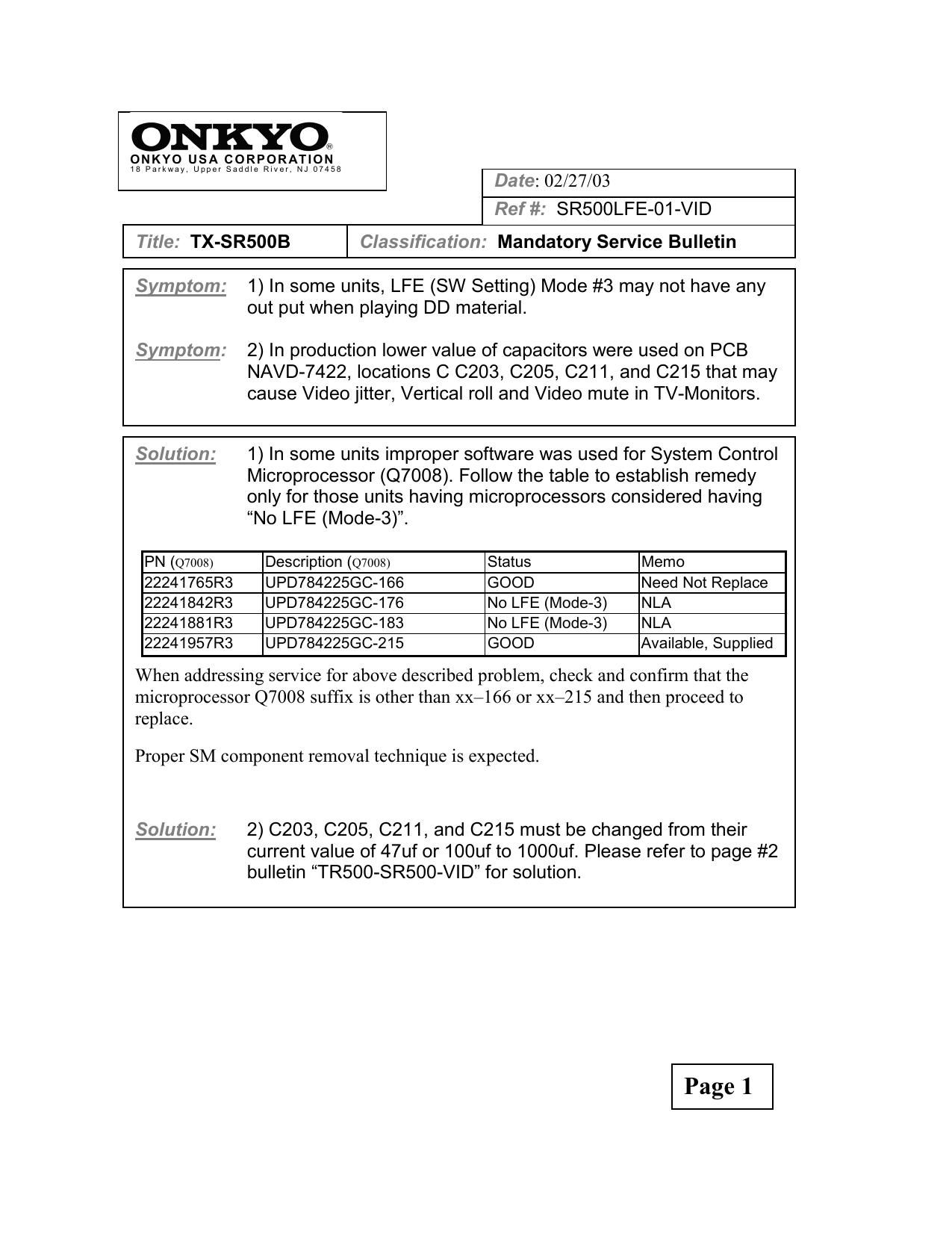

Model: HTR-500, TX-SR500 Problem: In some rare occasions, some TV-Monitors may experience Video Mute, Unusable Signal and Vertical Jumping video conditions when S-Video and Video is sent through receiver. Solution: Replace C203, C205, C211, and C215 with 1000uf 6.3v capacitors. Part Number 354721029. Ref: TR500-SR500-VID Application: Mandatory Service Bulletin Page 2
Page 2
Before C205 Changed Multi-Burst Wave Form After C205 Changed In HT-R500 a change in C205 from its current value 100uf16V capacitor to 1000/6.3V will help eliminate the ringing and jitter in video waveform. NOISE in video HT-R500 and TX-SR500 Disclosed information is only based on Composite Monitor Output. The change and modification will also apply to the S-Video Monitor Output as well. Pa ge 3
