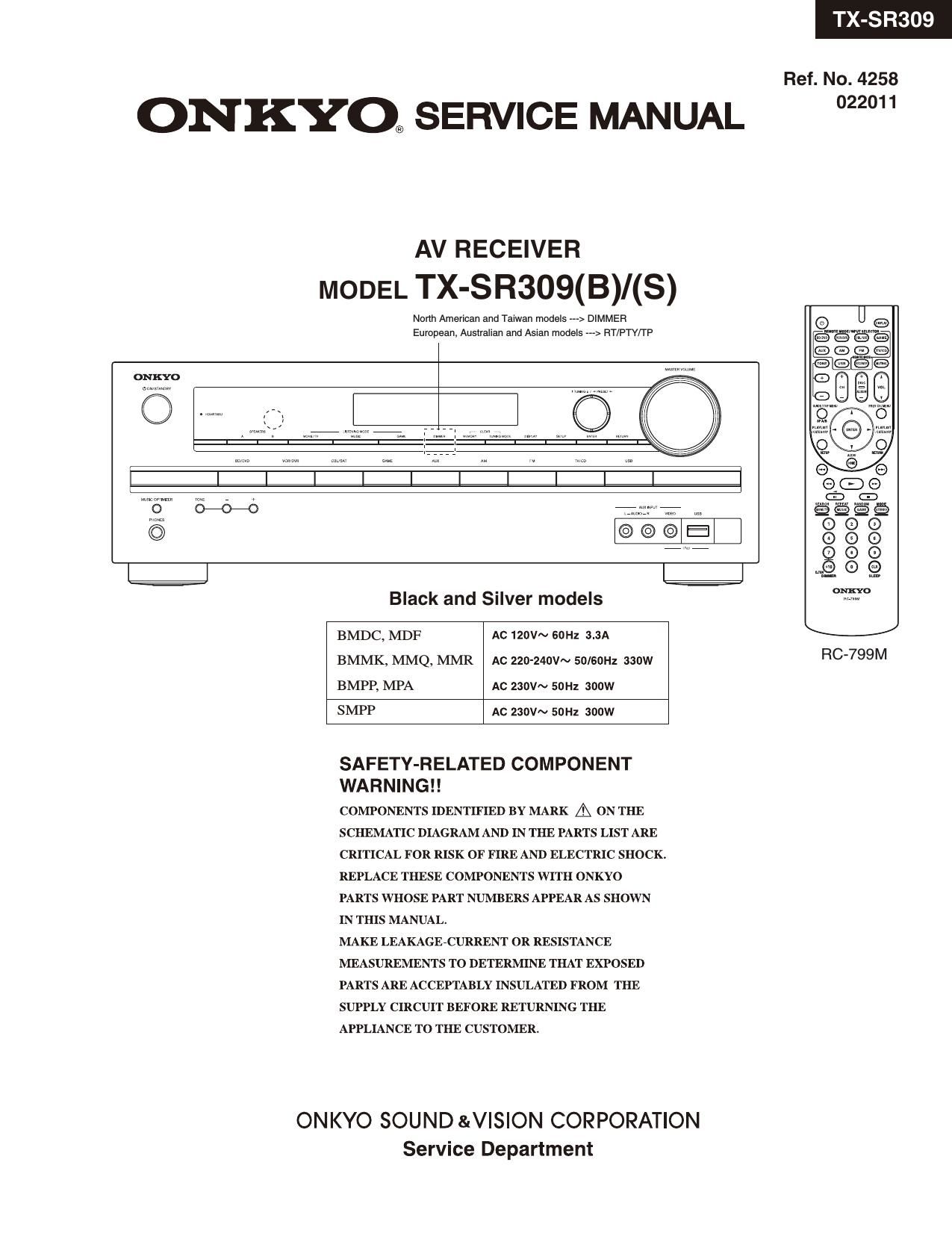

ONKYO® SERVICE MANUAL
AV RECEIVER
MODEL TX-SR309(B)/(S)
Noth American and Taiwan models ---> DIMMER
European, AusIraIian and Asian models ---> FIT/PTV/TP
ONHYO
Black and Silver models
BMDC, MDF AC 120V~ 60H: 3.3A
BMMK, MMQ, MMR AC 220-24DV~ 50/60Hz 330W
BMPP, MPA AC ZSOVN 50Hz 300W
SMPP AC 230V~ 50H2 300W
SAFETY-RELATED COMPONENT
WA R N I N G I I
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO SOUND &V|SION CORPORATION
Service Department
TX-S R309
Ref. NO. 4258
02201 1
Page 60
38/63 PAGE
R7041 C-CARBON R RN72K1]»1011E 435031014R1
R7042 C-CARBON R RN72K11-102JE 435031024R1
R7101 C-CARBON R RN72K1]»2711E 435032714R1
R7102 C-CARBON R RN72K11-3315E 435033314Rl
R7103 C-CARBON R RN72K11-4711E 435034714R1
R7106 C-CARBON R RN72K11-2715E 435032714R1
R7107 C-CARBON R RN72K1]»3311E 435033314R1
R7108 C-CARBON R RN72K11-4715E 435034714Rl
R7109 C-CARBON R RN72K1]»5611E 435035614R1
R7110 C-CARBON R RN72K11-8215E 435038214R1
R7111 C-CARBON R RN72K1]»122JE 435031224R1
R7112 C-CARBON R RN72K11-222JE 435032224R1
R7113 C-CARBON R RN72K1]»392JE 435033924R1
R7114 C-CARBON R RN72K11-123JE 435031234R1
R7115 C-CARBON R RN72K1]»271.IE 435032714R1
R7116 C-CARBON R RN72K11-3311E 435033314R1
R7117 C-CARBON R RN72K1]»471.IE 435034714R1
R7118 C-CARBON R RN72K11-5611E 435035614R1
R7119 C-CARBON R RN72K1]»821.IE 435038214R1
R7120 C-CARBON R RN72K11-122JE 435031224R1
R7121 C-CARBON R RN72K1]»222JE 435032224R1
R7122 C-CARBON R RN72K11-392JE 435033924R1
R7123 C-CARBON R RN72K1]»271.IE 435032714R1
R7124 C-CARBON R RN72K11-3311E 435033314R1
R7125 C-CARBON R RN72K1]»471.IE 435034714R1
R7126 C-CARBON R RN72K11-5611E 435035614R1
R7127 C-CARBON R RN72K1]»821.IE 435038214R1
R7128 C-CARBON R RN72K11-122JE 435031224R1
R7129 C-CARBON R RN72K1]»222JE 435032224R1
R7152 C-CARBON R RN72K11-222JE 435032224R1
R7301 C-CARBON R RN72K1]»331.IE 435033314R1
R7302 C-CARBON R RN72K11-3311E 435033314R1
R9014 C-CARBON R RN72K1]»104JE 435031044R1
