Onkyo TXSR 307 Service Manual
This is the 78 pages manual for Onkyo TXSR 307 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXSR 307 Service Manual (Ocr-read)
Page 1

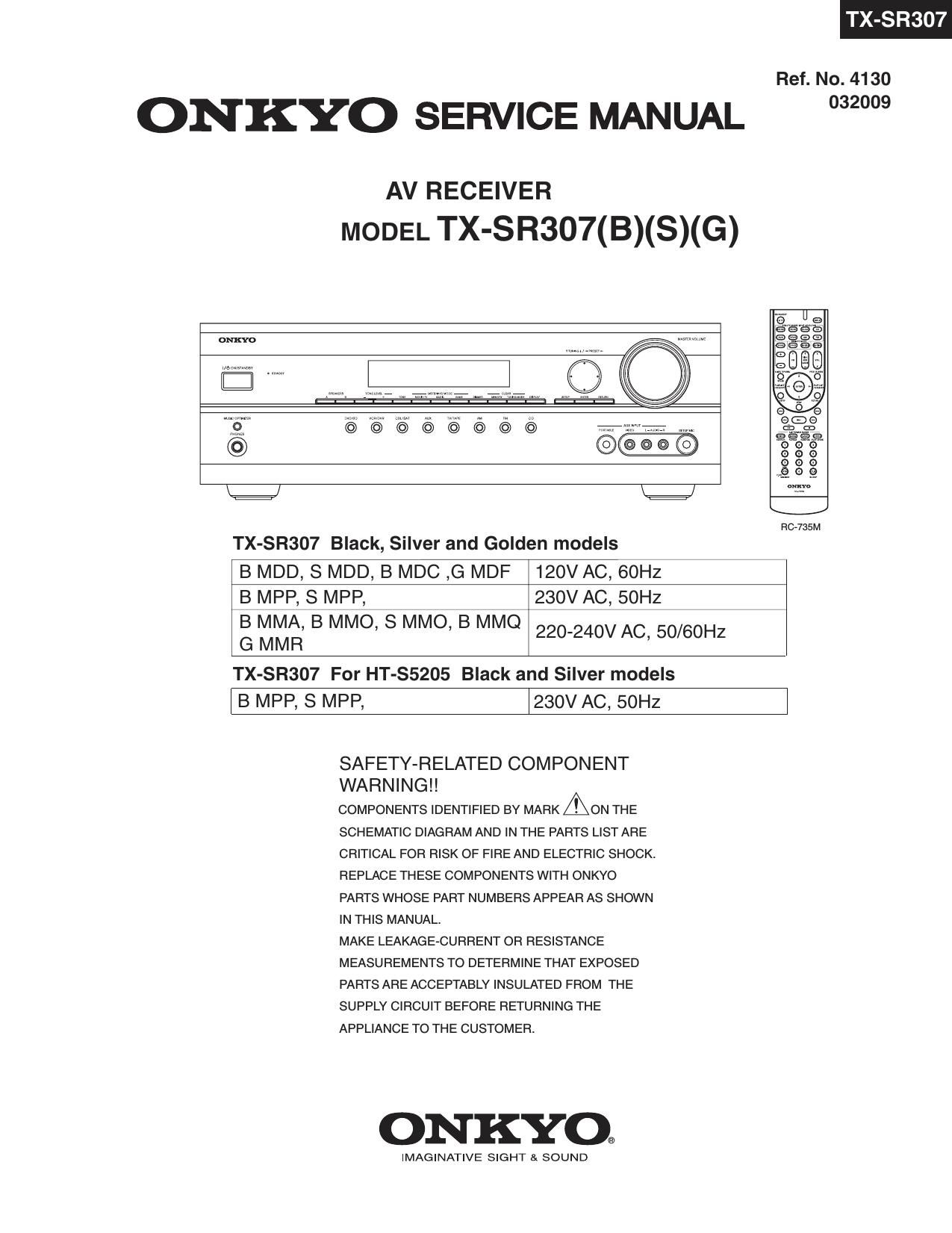

Ref. No. 4130
ONKYO SERVICE MANUAL °32°°9
AV RECEIVER
MODEL TX-SR307(B)(S)(G)
TX-SR307 Black, Silver and Golden models
B MDD, S MDD, B MDC ,G MDF 120V AC, 60Hz
B MPP, S MPP, 230V AC, 50Hz
B MMA, B MMO, S MMO, B MMO _
G MMR 220 240V AC, 50/6OHZ
TX-SR307 For HT-35205 Black and Silver models
I B MPP, s MPP, I230v AC, 50Hz
SAFETY-RELATED COMPONENT
WARNING
COMPONENTS IDENTIFIED BY MARK AON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
