Ref. No. 4130

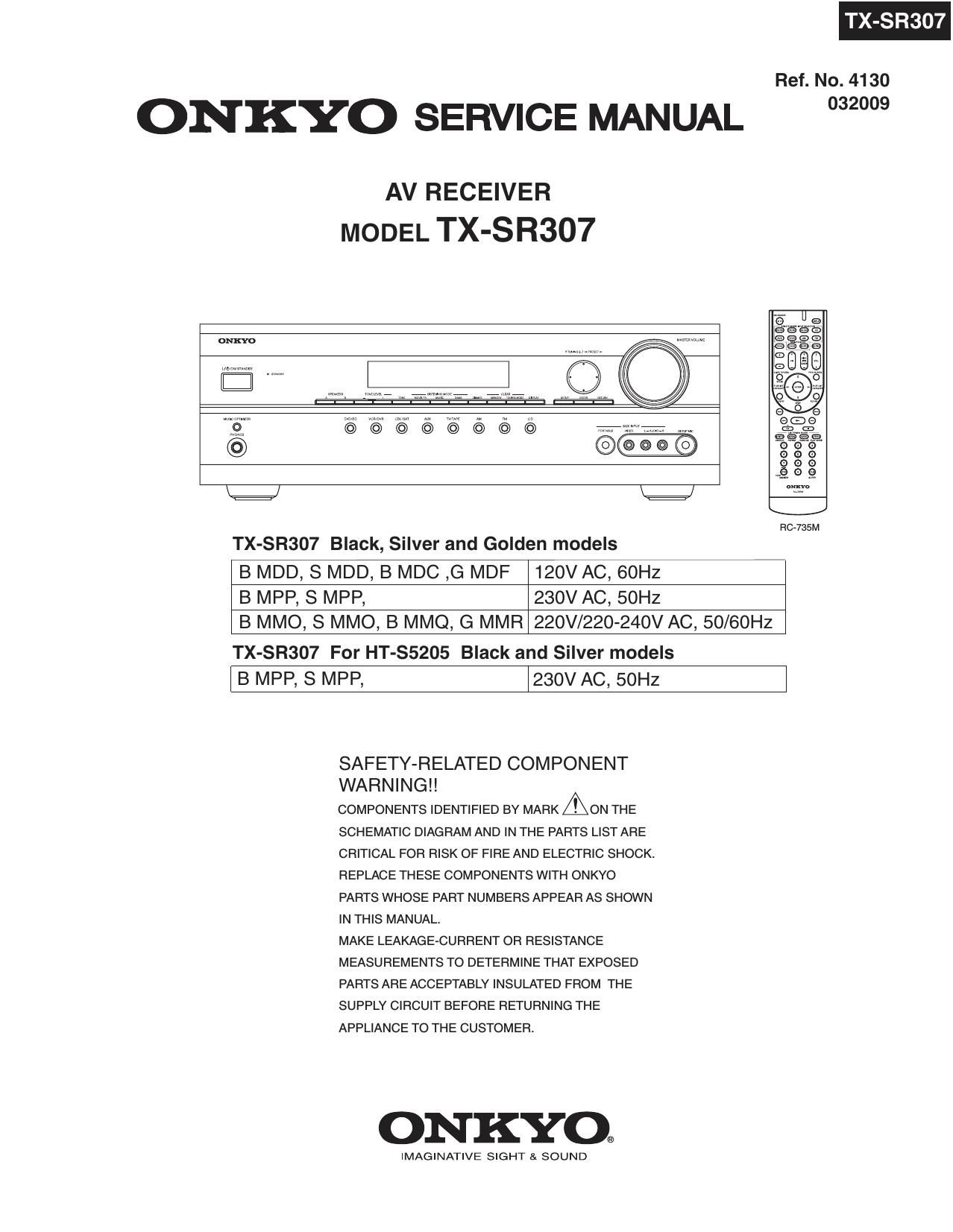

ONKYO SERVICE MANUAL °32°°9
AV RECEIVER
MODEL TX-SR307
TX-SR307 Black, Silver and Golden models
B MDD, S MDD, B MDC ,G MDF 120V AC, 60Hz
B MPP, S MPP, 230V AC, 50Hz
B MMO, 8 MMO, B MMQ, G MMR 220V/220-240V AC. 50/60Hz
TX-SR307 For HT-35205 Black and Silver models
I B MPP, s MPP, I230v AC, 50Hz I
SAFETY-RELATED COMPONENT
WARNING
COMPONENTS IDENTIFIED BY MARK AON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
