Onkyo TXSA 876 Service Manual

This is the 285 pages manual for Onkyo TXSA 876 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 285
Onkyo TXSA 876 Service Manual

Extracted text from Onkyo TXSA 876 Service Manual (Ocr-read)

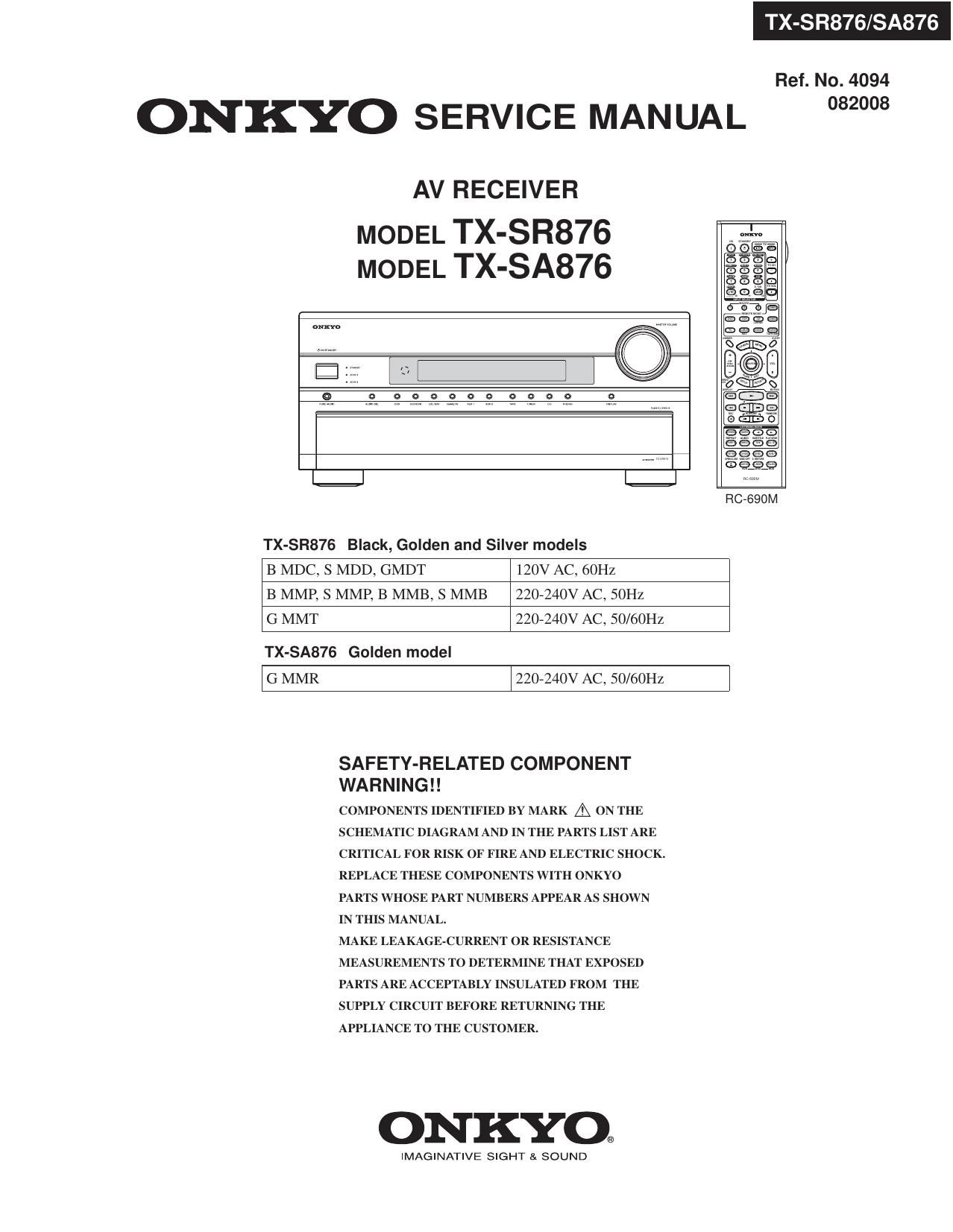

Page 1

AV RECEIVER
MODEL TX-SR876

Ref. No. 4094
082008

ON KYO SERVICE MANUAL

MODEL TX-SA876
| ,,,,,

TX-SR876 Black, Golden and Silver models

RC-GQOM

B MDC, S MDD, GMDT 120V AC, 601-12
B MMP, S MMP, B MMB, S MMB 220-240V AC, SOHZ
G MMT 220-240V AC, 50/60H2

TX-SA876 Golden model

G MMR 220-240V AC, 50/60Hz

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT & SOUND
