Onkyo TXSA 8560 Service Manual
This is the 218 pages manual for Onkyo TXSA 8560 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXSA 8560 Service Manual (Ocr-read)
Page 1
Ref. No. 3993

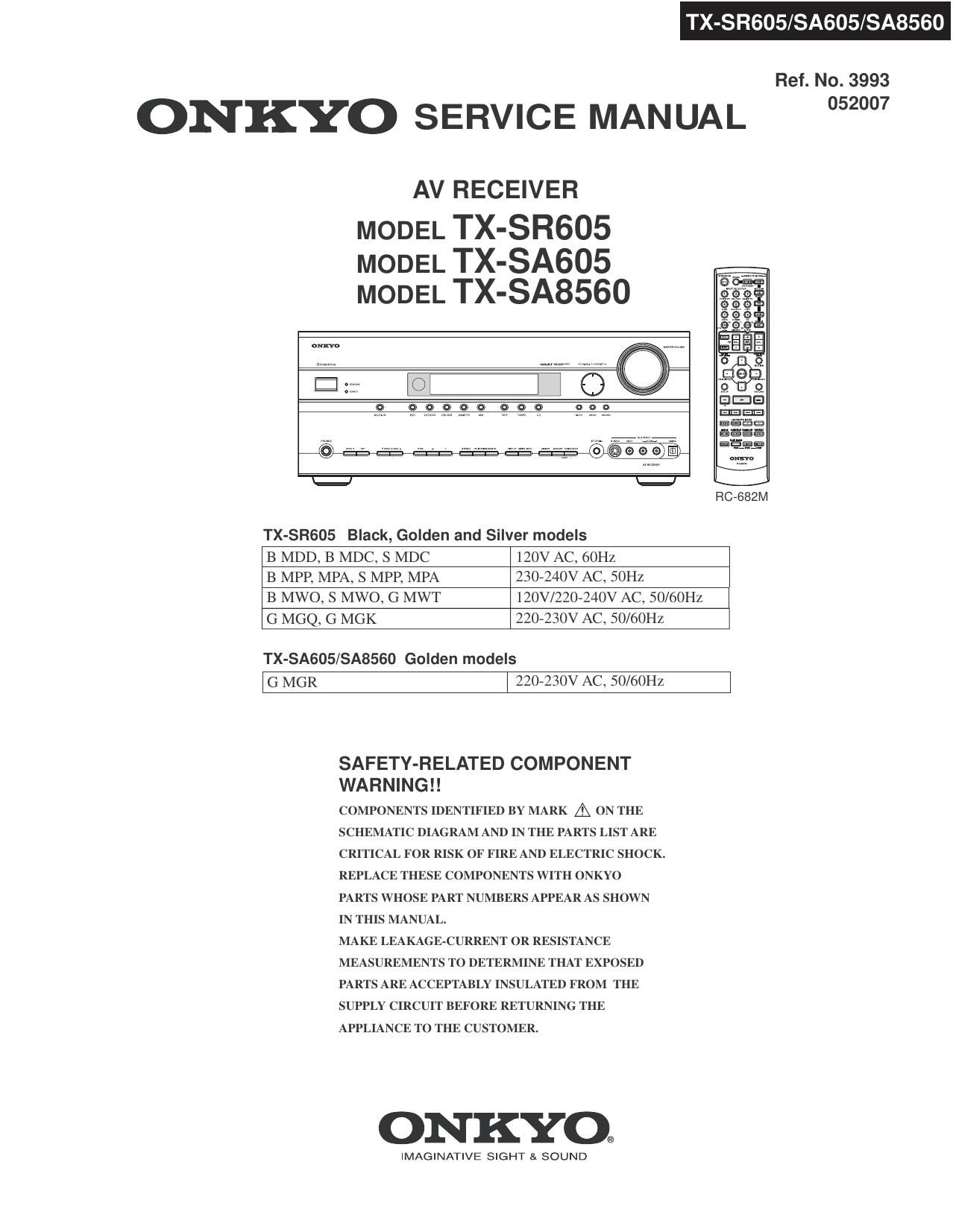

ON KYO SERVICE MANUAL 52°
AV RECEIVER
MODEL TX-SR605
MODEL TX-SA605
MODEL TX-SA8560
E 3:: 0 WW 0
@ @©©@©©@© 090
@I a: =. =« 7 == =. ==w @ETQT
\= \=
RC-682M
TX-SRGOS Black, Golden and Silver models
B MDD, B MDC, S MDC 120V AC, 60Hz
B MPP, MPA, S MPP, MPA 230-240V AC, 501-11
B MWO, S MWO, G MWT 120V/220-240V AC, 50/60Hz
G MGQ, G MGK 220-230V AC, 50/60Hz
TX-SA605/SA8560 Golden models
| G MGR \ 220-230v AC, 50/60Hz
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO.
IMAGINATIVE SIGHT & SOUND
