Onkyo TXSA 706 Service Manual
This is the 120 pages manual for Onkyo TXSA 706 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXSA 706 Service Manual (Ocr-read)
Page 1

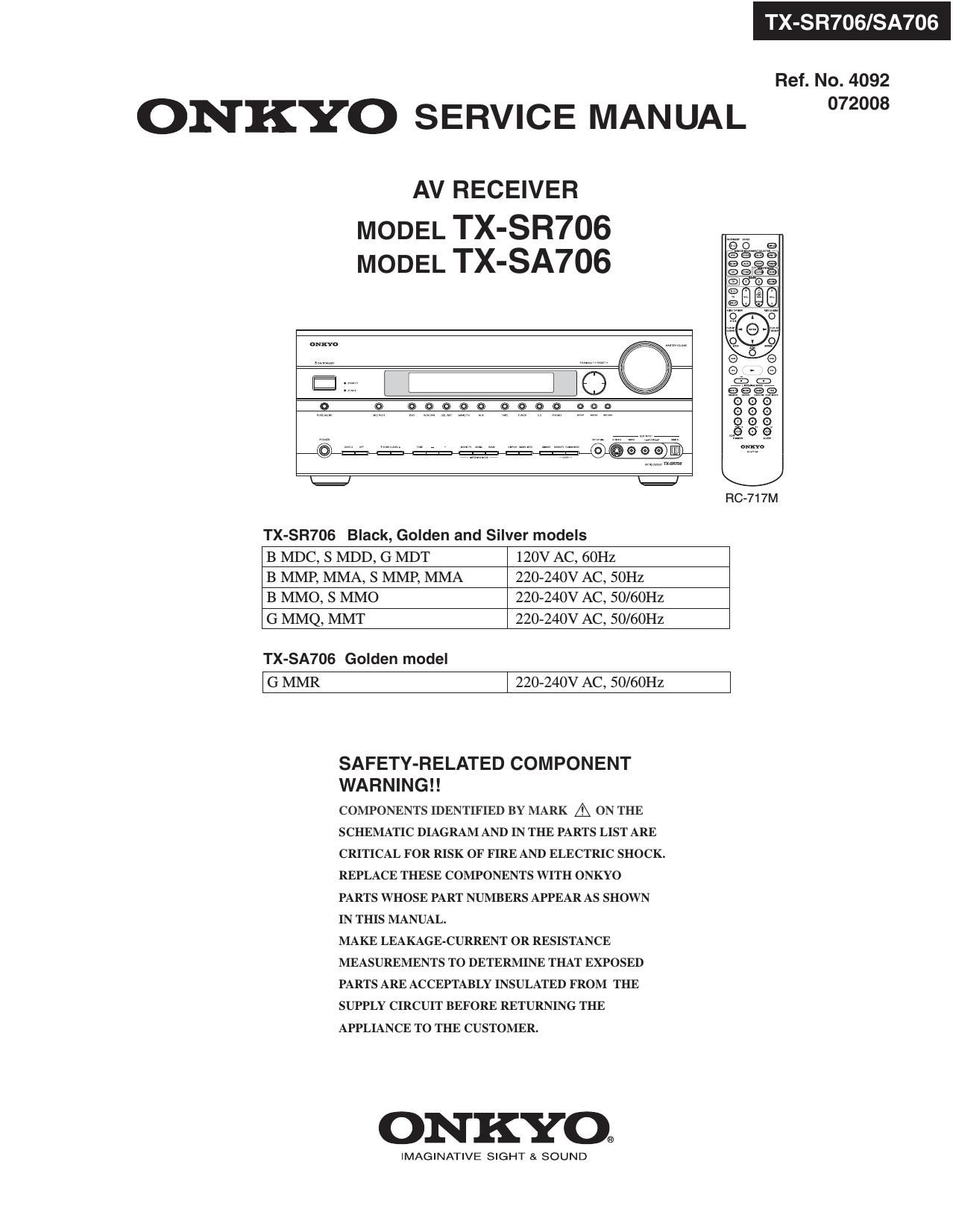

TX-SR706/SA706
Ref. No. 4092
ON KYO SERVICE MANUAL °72°°3
AV RECEIVER
MODEL TX-S R706
MODEL TX-SA706
0 © ©©©©©©©©©ooo
RC-717M
TX-SR706 Black, Golden and Silver models
B MDC, S MDD, G MDT 120V AC, 601-12
B MMP, MMA, S MMP, MMA 220-240V AC, SOHZ
B MMO, S MMO 220-240V AC, 50/60Hz
G MMQ, MMT 220-240V AC, 50/60Hz
TX-SA706 Golden model
| G MMR 220-240V AC, 50/601-12
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT SI SOUND
