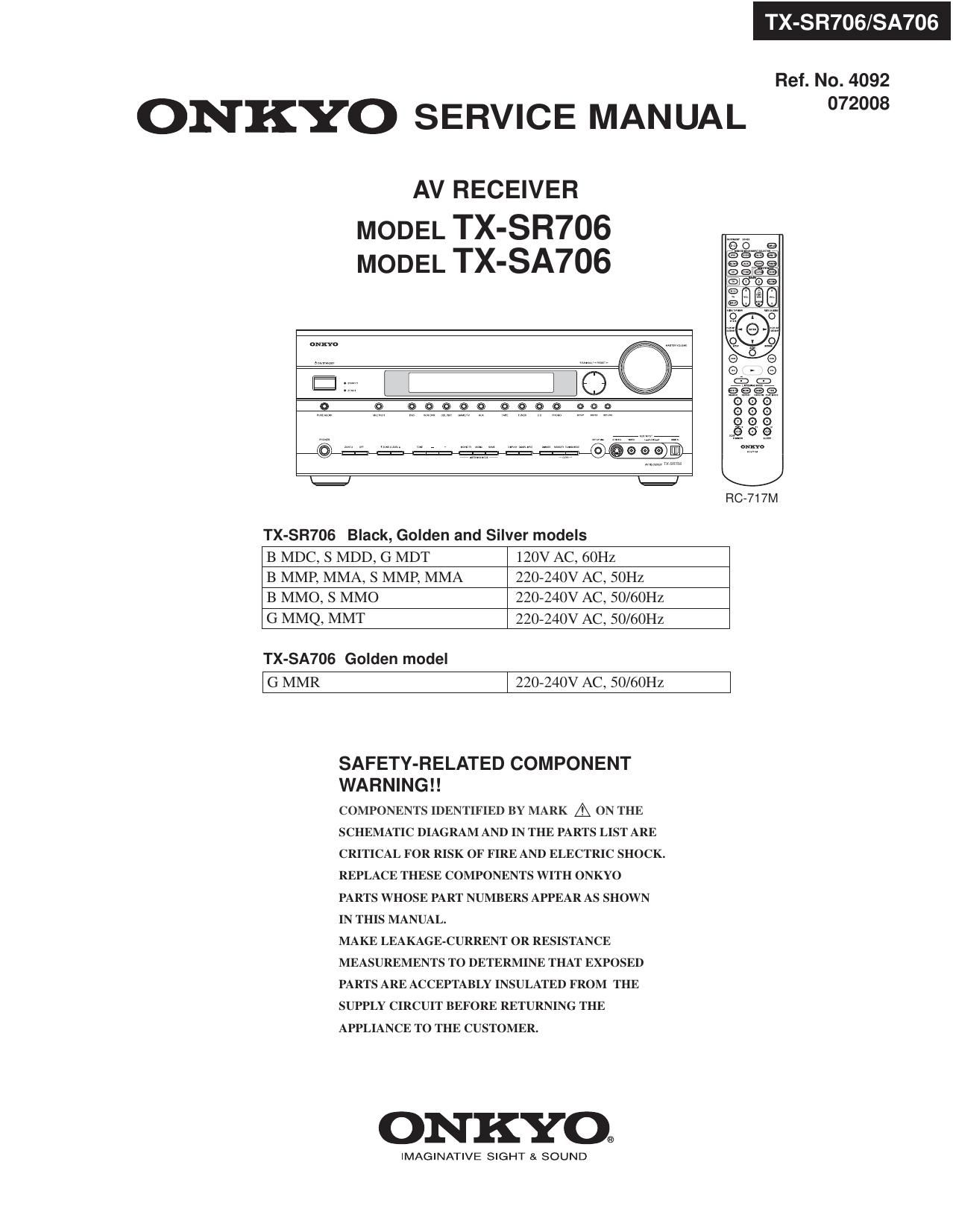

T SR706/ A706
Ref. No. 4092
ON KYO SERVICE MANUAL °72°°8
AV RECEIVER
MODEL TX-SR706
MODEL TX-SA706
0 © ©©©©©©©©©ooo
RC-717M
TX-SR706 Black, Golden and Silver models
B MDC, S MDD, G MDT 120V AC, 60Hz
B MMP, MMA, S MMP, MMA 220-240V AC, SOHZ
B MMO, S MMO 220-240V AC, 50/601-12
G MMQ, MMT 220-240V AC, 50/60Hz
TX-SA706 Golden model
I G MMR 220-240V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WARNING I !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
