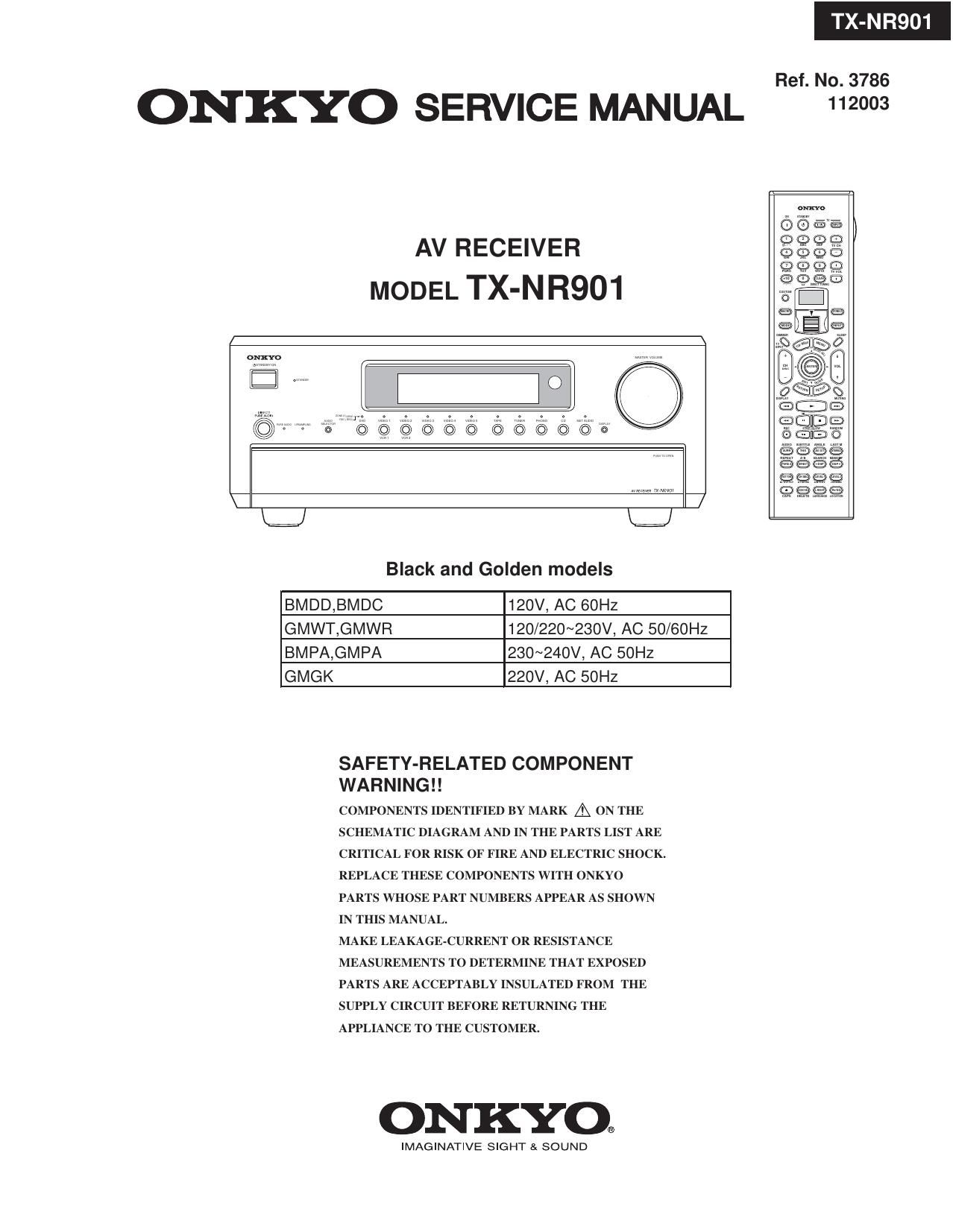

ONKYO SERVICE MANUAL

AV RECEIVER
MODEL TX-N R901

Black and Golden models

BMDD,BMDC 120V, AC 60HZ
GMWT,GMWR 120/220~230V, AC 50/6OHZ
BMPA,GMPA 230~24OV, AC 50HZ
GMGK 220V, AC SOHZ

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT & SOUND

TX-NR901

Ref. No. 3786
112003
