Onkyo TXNR 900 Service Manual

This is the 82 pages manual for Onkyo TXNR 900 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 82
Onkyo TXNR 900 Service Manual

Extracted text from Onkyo TXNR 900 Service Manual (Ocr-read)

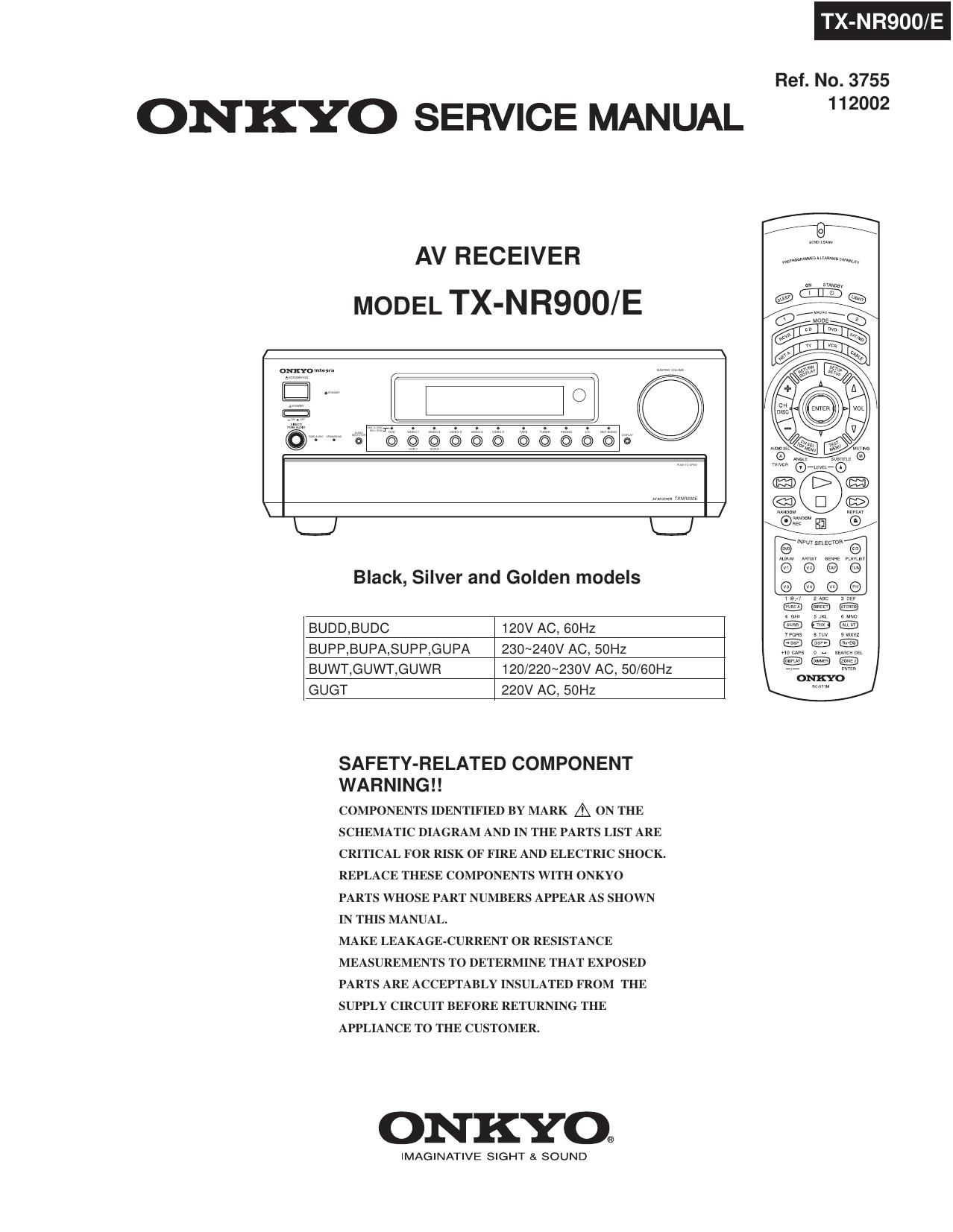

Page 1

TX-NR900/ E

Ref. No. 3755

ONKYO SERVICE MANUAL 2°

AV RECEIVER
MODEL TX-NR900/ E

"5&6666666665

u @G
\ ~ 6) <9
@3
<9

LJ LJ

Black, Silver and Golden models

BUDD,BUDC 120V AC, 60Hz
BUPP.BUPA,SUPP,GUPA 230~240V AC, 50Hz
BUWT,GUWT.GUWR 120/220~230V AC, 50/60HZ
GUGT 220V AC, 50Hz

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO.

IMAGINATIVE SIGHT & SOUND
