Onkyo TXNR 818 Service Manual

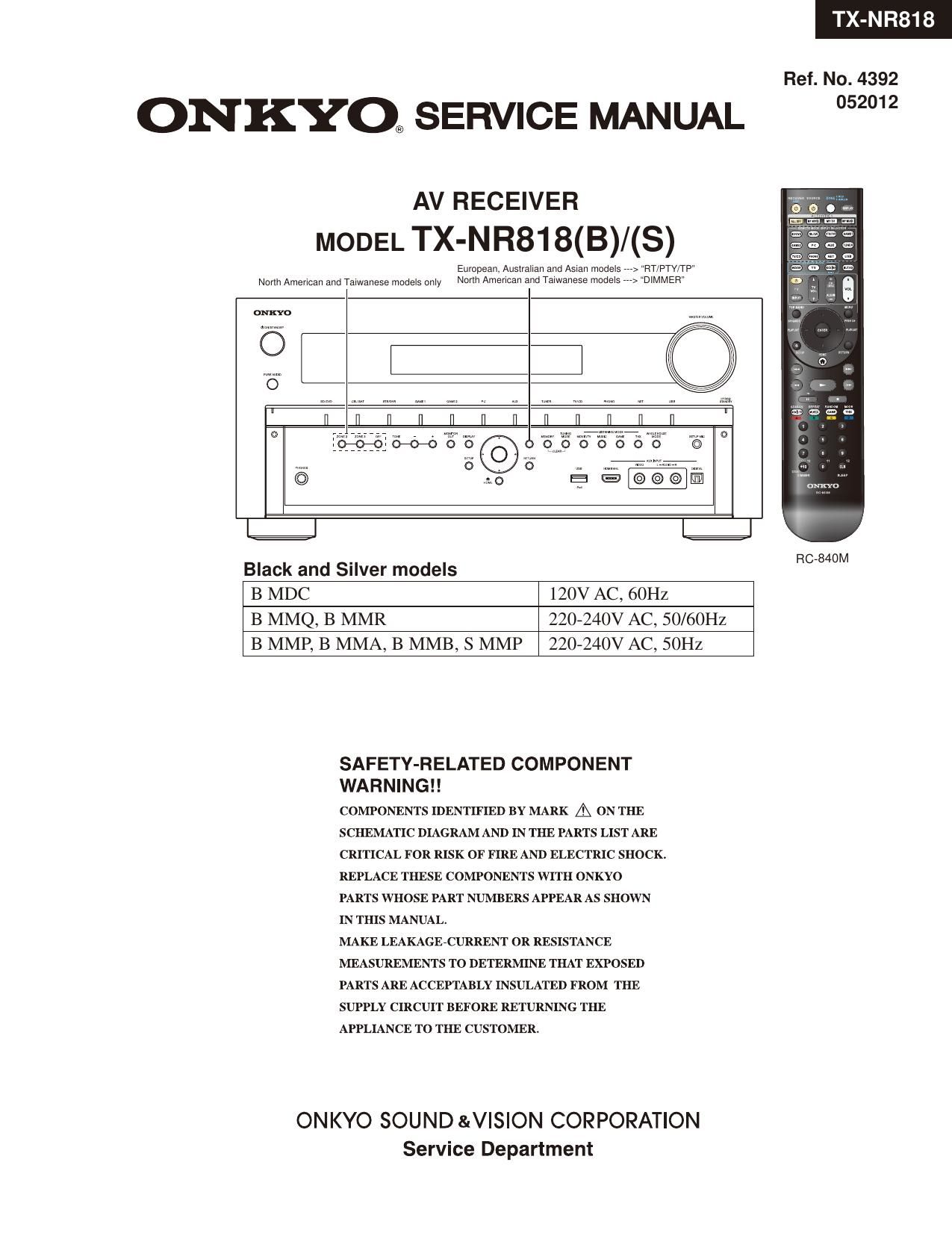

Page 1

ONKYO® SERVICE MANUAL

AV RECEIVER

MODEL TX-NR818(B)/(S)

European, Austrahan and AsIan models ,,,> FIT/PTYITP"

North Amencan and Tawwanese models only Nonh AmerICan and Taiwanese models ,,,> DIMMER

Black and Silver models

B MDC

120V AC, 60Hz

B MMQ, B MMR 220-240V AC, 50/60HZ

B MMP, B MMA, B MMB, S MMP 220-240V AC, 50Hz

SAFETY-RELATED COMPONENT
WA R N I N G I I

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTARLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO SOUND &V|SION CORPORATION

Service Department

TX-NR818

Ref. No. 4392
052012

FIG-840M
