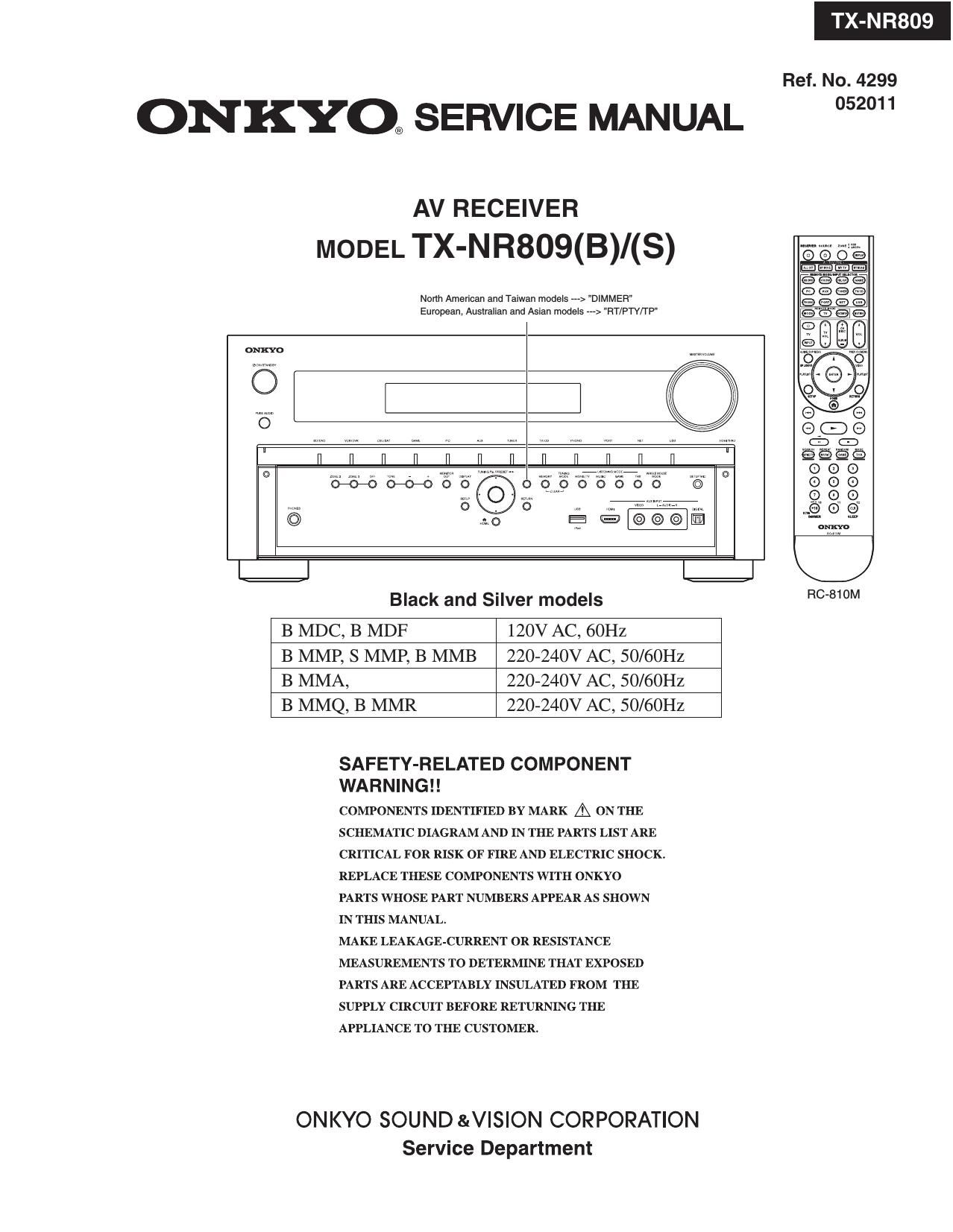

Page 1
ONKYO, SERVICE MANUAL
AV RECEIVER
MODEL TX-N R809(B)/(S)
North American and Taiwan models -»-> "DIMMEFl"
European, Australian and Asian models ---> "RT/PTY/TP"
Black and Silver models
B MDC, B MDF 120V AC, 60Hz
B MMP, S MMP, B MMB 220-240V AC, 50/60Hz
B MMA, 220-240V AC, 50/60Hz
B MMQ, B MMR 220-240V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WARNING
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL,
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO SOUND &V|SION CORPORATION
Service Department
TX-N R809
Ref. No. 4299
05201 1
RC-81 OM
