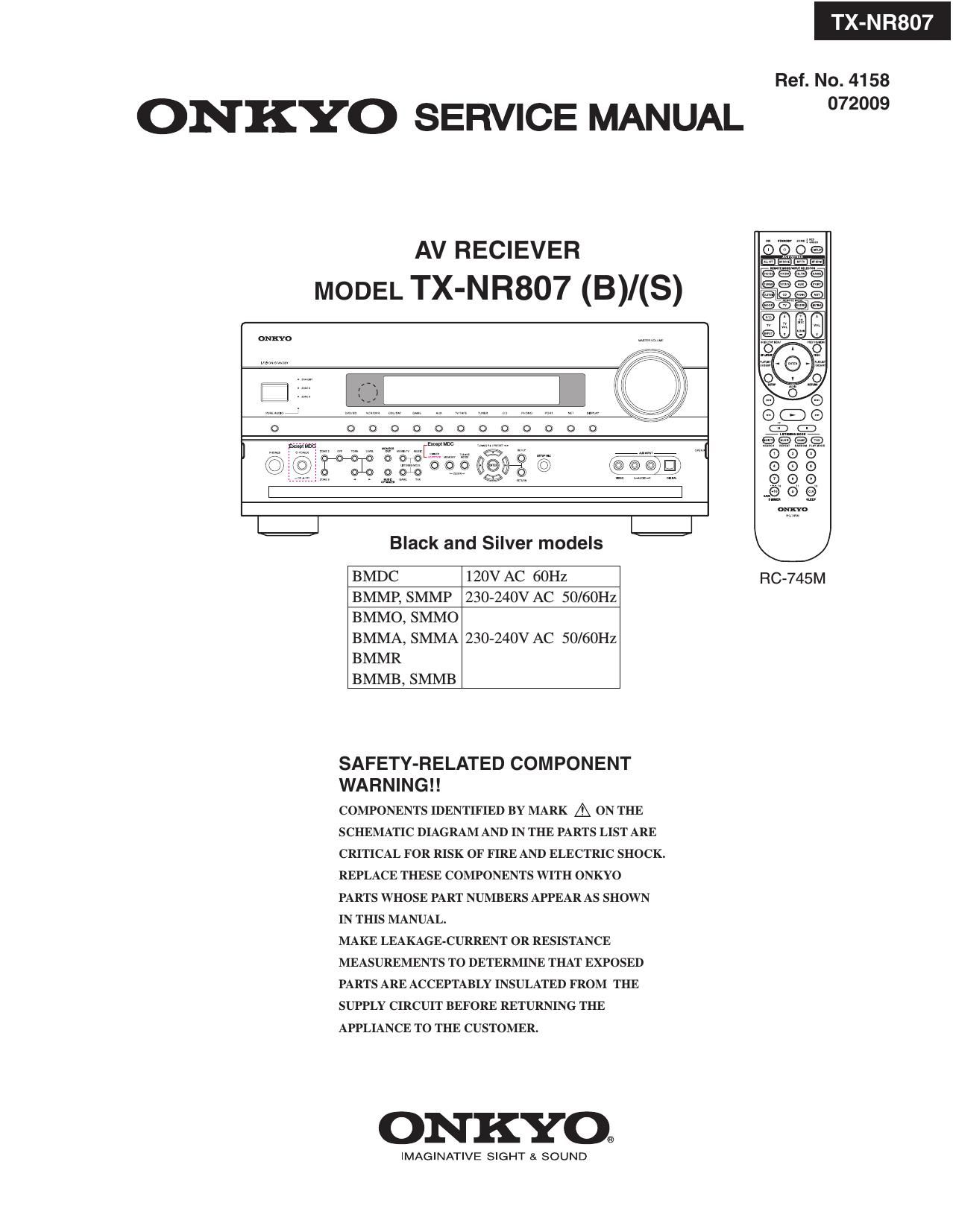

TX-N R807
Ref. No. 4158
ONKYO SERVICE MANUAL °72°°9
AV RECIEVER
MODEL TX-N R807 (B)/(S)
Black and Silver models
BMDC 120V AC 60HZ RC.745M
BMMR SMMP 230-24OV AC 50/60Hz
BMMO, SMMO
BMMA, SMMA 230-240V AC 50/60Hz
BMMR
BMMB, SMMB
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT SI SOUND
