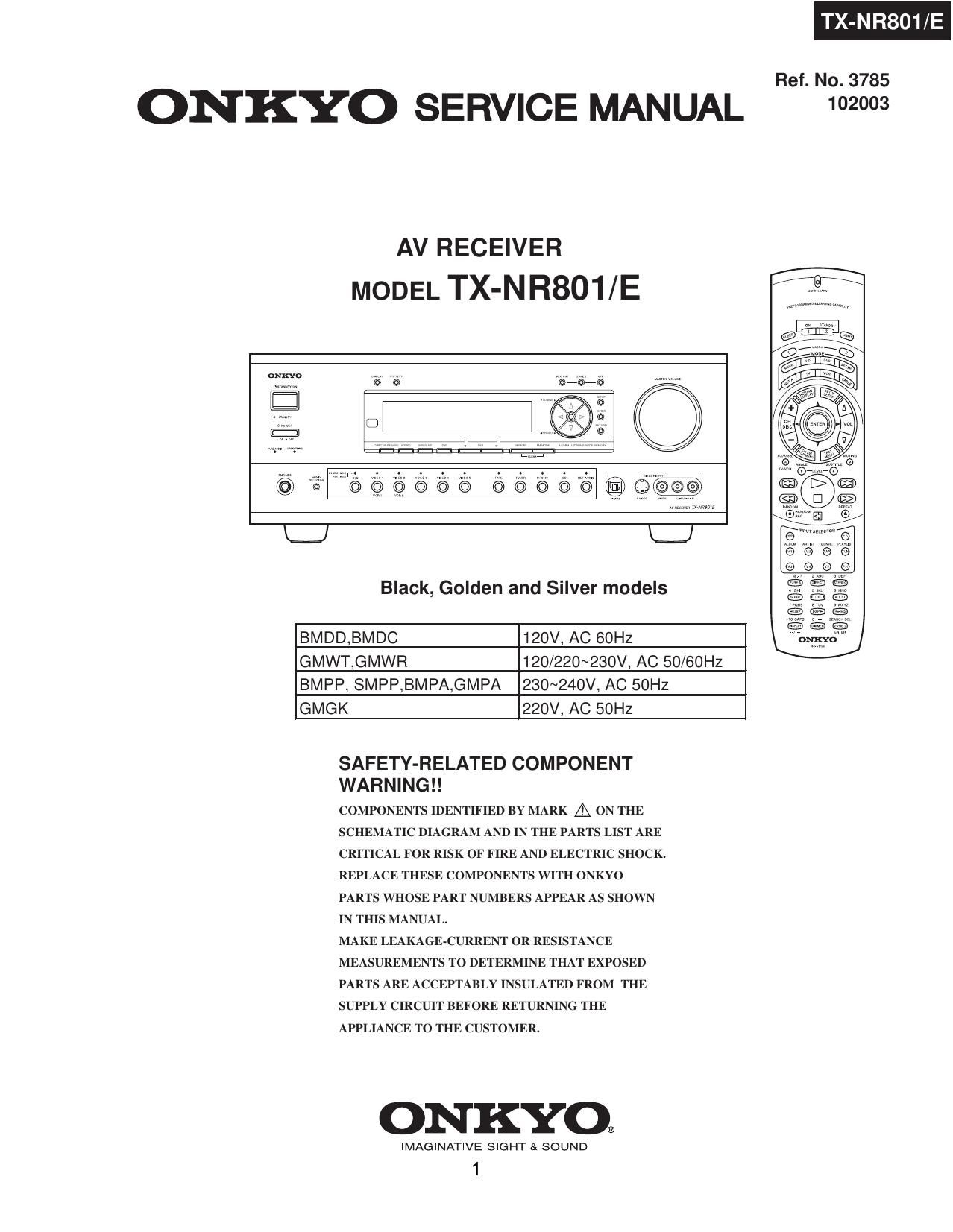

Page 1
TX-NR801/E
Ref. No. 3785
ONKYO SERVICE MANUAL 002000
AV RECEIVER
MODEL TX-NR801/E
Black, Golden and Silver models
BMDD,BMDC 120V, AC 60HZ
GMWT,GMWR 120/220~230V, AC 50/60Hz
BMPP, SMPP,BMPA,GMPA 230~240V, AC SOHZ
GMGK 220V, AC 50HZ
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
1
