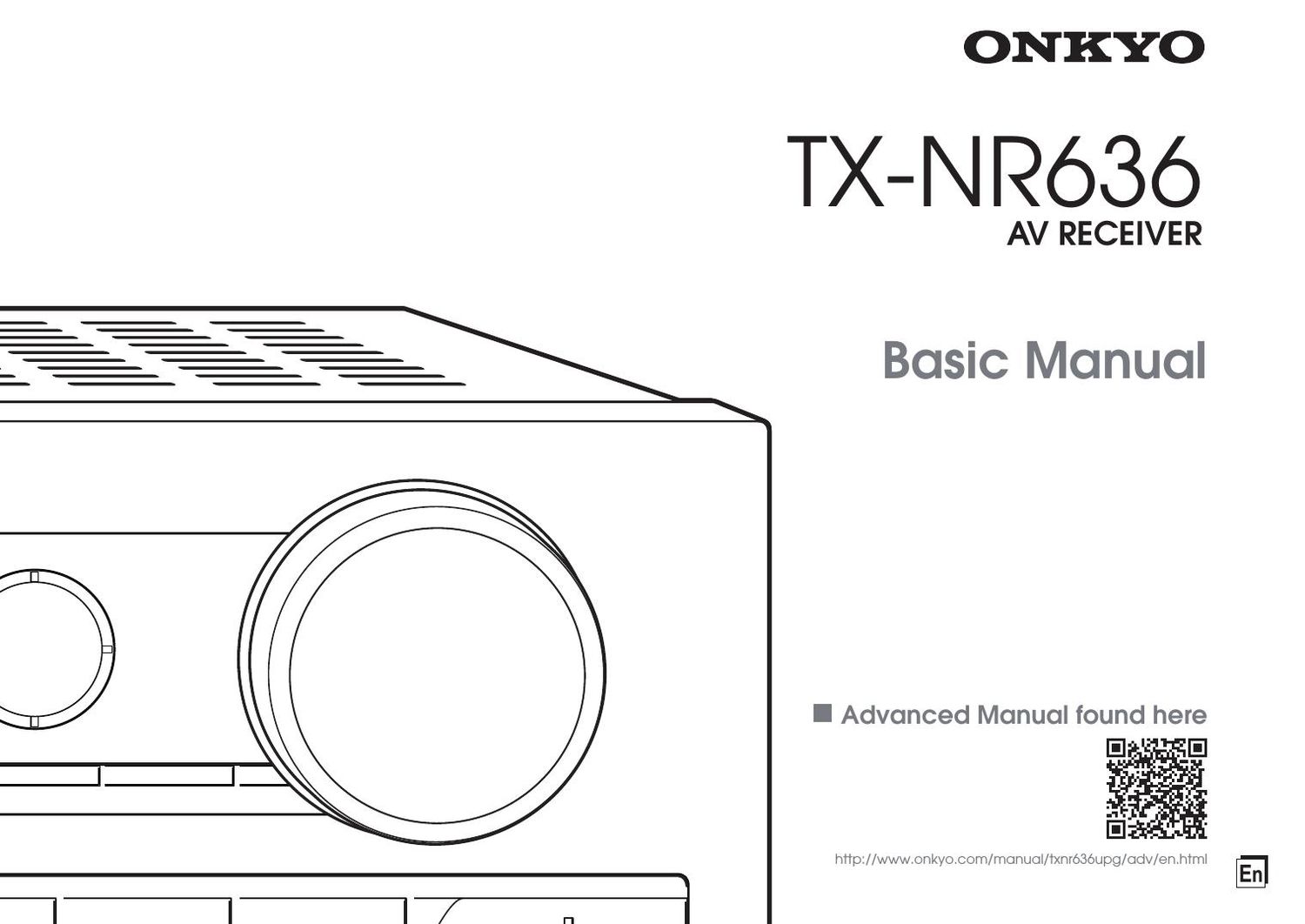

Onkyo TXNR 636 Owners Manual
This is the 126 pages manual for Onkyo TXNR 636 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXNR 636 Owners Manual (Ocr-read)
Page 1
Before Start 2 About the Basic Manual The Basic Manual leads you through the fundamental steps to enjoy the AV Receiver from connections to TV, speaker system and playback components, to necessary functions for playback. As well as that, Basic Manual informs you with the instructions on frequently used functions. Besides, there is another part of the manual called Advanced Manual to inform you with more detailed information, which we have decided to publish on the web from the ecological point of view. Advanced Manual Advanced Manual is always updated with the latest information and its user friendly interface, which does not matter whether you access from PC or Smartphone, helps you to understand more deeply about the AV Receiver. Advanced Manual is consisted of the following chapters. AM/FM Radio Receiving Function Playing Music Files on a USB Storage Device Listening to Internet Radio Playing Music with DLNA Playing Music Files in a Shared Folder Operating Music Files with the Remote Controller Listening Mode Advanced Settings Operating Other Components with the Remote Controller Advanced Speaker Connection Connecting and Operating Onkyo RI Components Firmware Update Troubleshooting Reference Information Advanced Manual found here http://www.onkyo.com/manual/txnr636upg/adv/en.html Features Equipped with 7 channel amplifier Supports playback in Dolby Atmos format which provides 360-degree placement and movement of sounds including overhead sound Dolby Surround listening mode expands 2 ch, 5.1 ch or 7.1 ch source to available speaker configurations Incorporates Qdeo™ technology for HDMI video upscaling Equipped with 4K/60 Hz Passthrough-compatible HDMI IN/OUT jacks (IN1 to IN4 of HDMI IN jacks are 4K compatible) Supports the HDMI Through function which allows transmission from playback devices to the TV in standby state Supports HDCP2.2, a strict copy-protection for providing high quality content (HDMI IN3/HDMI OUT MAIN only) Supports ARC (Audio Return Channel) Supports USB storage playback Supports variety of network functions such as Internet Radio, DLNA, etc. Supports Wi-Fi, Bluetooth and MHL-enabled mobile device Bi-Amping capability A/V Sync Control Function to correct deviation of audio and video Multi-zone function which allows you to play a different source in another room from the main room 32 bit DSP (Digital Signal Processor) with excellent calculation performance Music Optimizer™ for Compressed Digital Music files Phase Matching Bass System Automatic speaker setup available using supplied calibrated microphone (AccuEQ Room Calibration) Supports playback of MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, Apple Lossless, DSD, Dolby TrueHD via network and USB storage device (the supported formats will differ depending on the use environment) Supplied Accessories Indoor FM antenna --- (1) AM loop antenna --- (1) 321Speaker Cable Color labels for speaker cable --- (1) Remote controller (RC-880M) --- (1) Batteries (AA/R6) --- (2) Power cord (Taiwanese models) --- (1) Speaker setup microphone --- (1) The number in parenthesis indicates the quantity. On packaging, the letter at the end of the product name indicates the color. How to use the remote controller Batteries (AA/R6) Remote control sensor Approx. 16 ft. (5 m)AV Receiver If you do not use the remote controller for a long time, remove the batteries to prevent leakage. Note that keeping consumed batteries inside may cause corrosion resulting in damage of the remote controller.
Page 2
Step 1: Connections 3 1 Connecting the TV and players Important: The power cord must be connected only after all other connections are completed. HDMI cable connection The unit has many HDMI jacks on its rear panel and each of them corresponds to an input selector button of the same name on the front panel. For example, a Blu-ray Disc player will be connected to the HDMI IN1 jack and the BD/DVD button on the front panel will be used to listen to the playback sound (if the player is CEC compliant, input will be switched automatically). If you add another Blu-ray Disc player, you can use any other jack than HDMI IN1. It is possible to change assignment of the input jacks and input selector buttons. For how to make settings, see the Advanced Manual. To connect the TV and the unit, connect the HDMI OUT MAIN jack of the unit and the HDMI IN jack of the TV using an HDMI cable. With this connection, it becomes possible to display the setting screen of the unit on the TV or transmit video/audio signals from the player to the TV. If your TV supports ARC (Audio Return Channel), it is possible to play the TV sound with the AV receiver's speakers with this connection only. If your TV does not support ARC, you need, in addition to the HDMI OUT MAIN jack connection, a digital optical cable connection between the digital audio out optical jack of the TV and the DIGITAL IN OPTICAL jack of the unit or an analog audio cable connection between the audio output jack of the TV and the VIDEO/AUDIO IN TV/CD jack of the unit. DIGITAL OPTICAL OUT AUDIO OUT TV Audio connection with a TV not supporting ARC Select an appropriate connection for your TV. The unit supports the HDMI Through function that allows transmission from players to the TV even if the unit is in standby. You have to modify the settings to enable the input selection link with CEC compliant device, connection with ARC compatible TV, and HDMI Through function. See HDMI OUT HDMIOUT HDMIOUT HDMIOUT HDM I IN HDMI OUT TV Blu-ray Disc/ DVD player Set-top box/Digital video recorder, etc. Satellite/Cable set-top box, etc. Game console Personal computer HDMI cable To use the ARC function, connect to the ARC compatible HDMI jack of the TV and make an appropriate setting on the unit. See the section 2 "2nd Step : Source Connection" of "Step 2: Setting Up".
