Onkyo TXNR 616 Service Manual

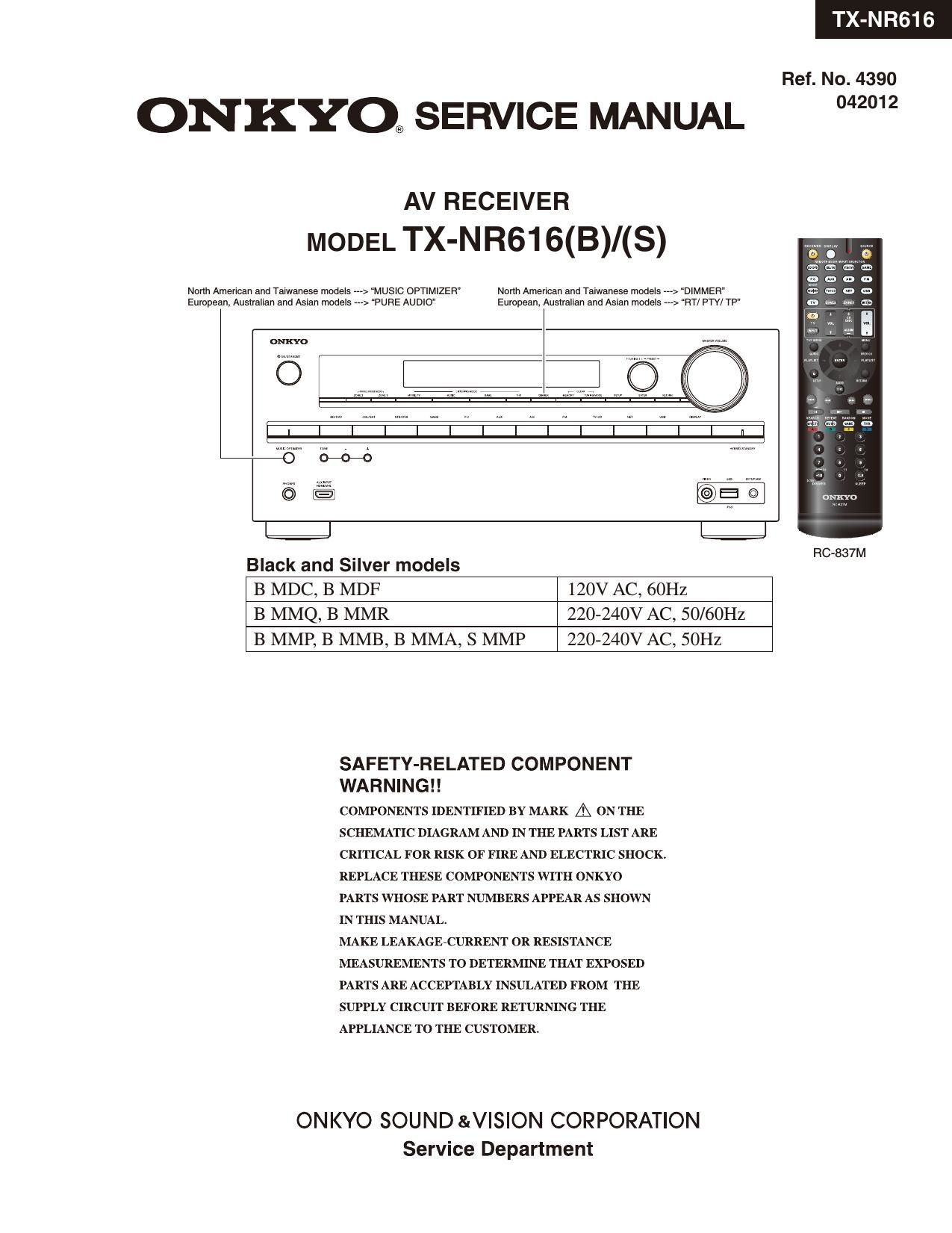

Page 1

TX-NR616

Ref. No. 4390

ONKYO® SERVICE MANUAL 2"

MODEL TX-NR616(B)I(S)

North American and Taiwanese models ---> MUSIC OPTIMIZEFI" North American and Taiwanese models ---> DIMMEFI
European, Austlalian and Asian models ---> "FUFIE AUDIO" Euiopean. Australian and Asian models ---> FIT/ PTY/ TF"

AV RECEIVER

FIG-837M

Black and Silver models

B MDC, B MDF

120V AC, 60Hz

B MMQ, B MMR

220-240V AC, 50/60Hz

B MMP, B MMB, B MMA, S MMP 220-240V AC, SOHZ

SAFETY-RELATED COMPONENT
WA R N I N G I I

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO SOUND &V|SION CORPORATION

Service Department

Page 2

SERVICE PROCEDURE-1

1. Replacing the fuses

EE This symbol located near the fuse indicates that the
fuse used is slow operating type, For continued protection against
fire hazard, replace with same type fuse, For fuse rating, refer to
the marking adjacent to the symbol.

EE Ce symbole indique que le fusible utilise est e lent.

Pour une protection permanente, n'utiliser que des fusibles de meme
type. Ce demier est indique la qu le present symbol est apposre.

REF NO. PART NAME DESCRIPTION PART NO. REMARKS

F6401 FUSE 12A-TUL-250V 252301GR l

F6402 FUSE lZA-TUL-250V 252301GR !

F9002 FUSE 10A-UL/T-233 252330GR !

F9002 or FUSE 10A-T/UL-ST2 252333GR !

F9002 FUSE SA-SE-EAK 252078GR !
F9002 or FUSE SA-SE-TLZSOV 252278GR !
F201 FUSE 4A-SEUL-TL250V 252392T l

F9001 FUSE lA-SEUL-TL250V 252397T !

: 120V,Canadian model

2 120V,Taiwanese model

: 220-240V,CE(European) country model
: 220-240V,Australian model

: 220-24OV,UK model

: 220-240V,Hong kong model

: 220-240V,Chinese model

2. Safety check out
(U.S.A. model only)
After correcting the original service problem, perform the following safety check before releasing the unit to the customer.
Leakage current Check
Measure the leakage current to a known earth ground (water pipe or conduct etc.) by connecting a leakage current
tester between the earth ground and exposed metal parts of the unit (inpquutput ground terminals, screw heads or metal overlays etc).
Plug the power supply cord directly into a l20Vac 601-12 wall socket and turn ON/STANDBY button on.
Any current measured must not exceed 0.5mA.

3. To initialize the unit
1. Press ON/STANDBY button while pressing down CBL/SAT button when the unit is POWER ON, then the FL displays
"CLEAR", and turn to STAND-BY.
Preset memory and each mode stored in the memory, are initialized and will return to the factory settings.

Clear 6 Stand-by

2. Remove power cord from wall outlet.

ON/STAN DBY CBL/SAT

Page 17

/ HT-RC460/470/ HT- / DTR-20.4/30.4

OPERATION CHECK-1
1.0PERATION CHECK(1/2)

1-1. OPERATIONS OF VOLTAGE-DETECTION PROTECTORS.
See OPERATION CHECK-3,5 for TEST MODE operation.
NOTE: Don't connect load nor short speaker terminals.
a. Change the state to "TEST-4-21".
b. It tests by being automatic in order of TEST4-21(FL+) 4» 22(FR-) 4» 23(C+) 4» 24(SL-)
~> 25(SR+) 4» 26(SBL-/SW») a 27(SBR+). IfTEST-4-27 (DTR-20.4 is 4-25) is ok, it becomes the display of TEST-4-35."
c. It will complete, ifdisplayed on FL TUBE as "TEST-4-35."

1-2. OPERATIONS OF CURRENT-DETECTION PROTECTORS
See OPERATION CHECK-3,5 for TEST MODE operation.
a. Change the state to "TEST-4-35".
Even ifyou connect 3-ohm load for every channel ofL, R, C, SL, SR, SBL and SBRch, a relay should not cut off.
If l-ohm load is connected for every channel ofL, R, C, SL. SR,SBL and SBRch, a relay should hold the state of ON

1-3. CONFIRMATION OF RDS (RADIO DATA SYSTEM) OPERATION (Applied to MM*/MP* type )
a. Input 98MHz,30dBp signal modurated with RDS data.
b. When a PS information is received, the name of the station "RDS TEST" shall be displayed within 2 seconds instead ofthe frequency.

1-4. CONFIRMATION OF HEAD PHONE OPERATION.
Confirm the Listening Mode is automatically switched to STEREO" mode when headphones plug is inserted into the PHONESjack.

1-5. COMFIRMATION OF FRONT USB
See OPERATION CHECK-3,4 for TEST MODE operation.
a. Connect ipod to AVR USB port.
b. When set to TEST-3-09, confirm that the display of AVR change l'connecting" to "press mode" after few seconds.
iPod classic, 3G nano, 4G nano, 5G nano

1-6. COMFIRMATION OF REAR USB
See OPERATION CHECK-3,4 for TEST MODE operation.
Applied to TX-NR515(AE), HT-RC460, TX-NR616(AE), HT-RC470, DTR-20.4, DTR-30.4.
a. Connect USB»Storage to AVR USB port.
b. When set to TEST-3-9 3-10, confirm that the display ofAVR change device name.

1-7. COMFIRMATION OF AirPlay

See OPERATION CHECK-3,4 for TEST MODE operation.

Applied to TX-NRSISAE, TX-NR616AE.
a. iTunes of PC is started before testing. And Connect the receiver to the router.
b. Confirm to display IP address , when TEST MODE is set to TEST-348.

*Please wait for about 20 seconds after turning on the power supply ofthe set when you use TEST-348.

c. Select model name (ex. "TX-NR515AE") in pull-up menu by clicking AirPlay icon on iTunes.
d. Click to select an appropriate music content on iTunes, then click Play icon to play music.
e. Check sound performance and the content information displayed on AVR VFD.
f. Stop music on iTunes, and select My computer" in pull-up menu by clicking AirPlay icon on iTunes.
g. Press ON/STANDBY button, and AirPlay icon is removed on iTunes.

1-8. CONFIRMATION OF OUTPUT SENSOR AND THERMAL SENSOR.
See OPERATION CHECK-3,5 for TEST MODE operation.
a. Set the TEST MODE to "TEST»4-36" and "TEST-4-37".
After light FM STEREO on FL display ,
the relays RL69l/692 is OFF and "FM STEREO"is off.

b. Push ON/Standby button while pushing down DISPLAY button to display CPU PROGRAM version.
Push TONE button while displaying CPU PROGRAM version to display value oftemparature sensor.
Confirm outside temperature iZOC is displayed immediately after energizing.

Note that the error margin is caused by the rise of the temperature ofthe heat sink when time passes.
No singal condition (Ex. Display)

>00 O34 F.'X S.'H

HP %%

Voltage Temparature FAN condition Amplifier power

of VOLH port of thermal sensor x: Stop supply voltage condition
L: Low speed H: High-B
M: Mid speed L: Low-B

H: High speed
