Onkyo TXNR 414 Service Manual

Page 1

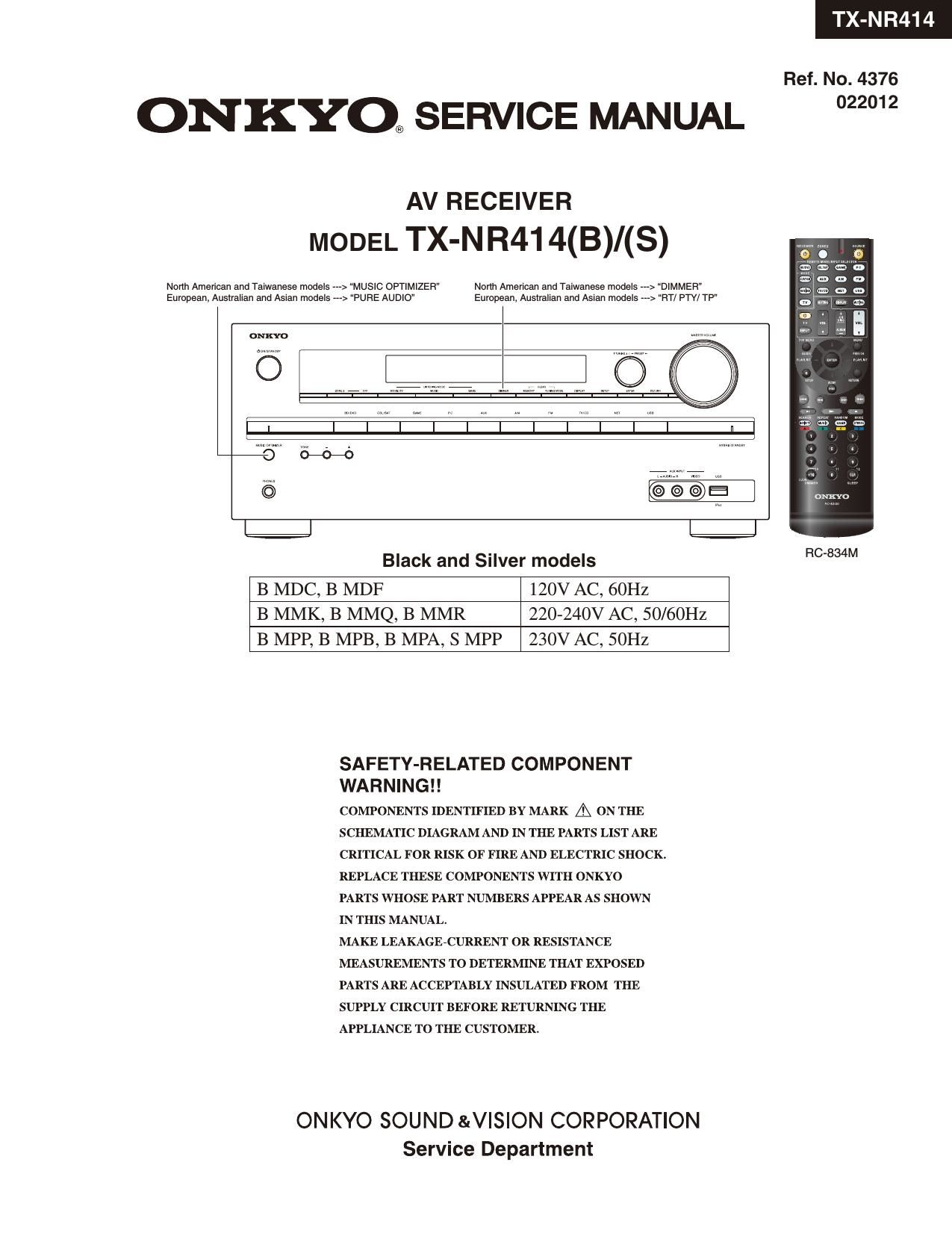

ONKYO® SERVICE MANUAL

AV RECEIVER

MODEL TX-NR414(B)/(S)

North American and Taiwanese models ---> MUSlC OPTIMIZEH"
European, Australian and Asian models ---> PURE AUDIO"

Norm Ameiican and Taiwanese models »--> DIMMEH
European, Australian and Asian models »--> FlT/ PTY/ TP"

ONKYO

Black and Silver models

B MDC, B MDF 120V AC, 60Hz

B MMK, B MMQ, B MMR

220-240V AC, 50/60Hz

B MPP, B MPB, B MPA, S MPP 230V AC, SOHZ

SAFETY-RELATED COMPONENT
WA R N l N G l !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS To DETERMINE THAT EXPOSED
PARTS ARE ACCEPTARLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

Service Department

ONKYO SOUND &V|SION CORPORATION

TX-NR414

Ref. No. 4376
02201 2

RC-834M
