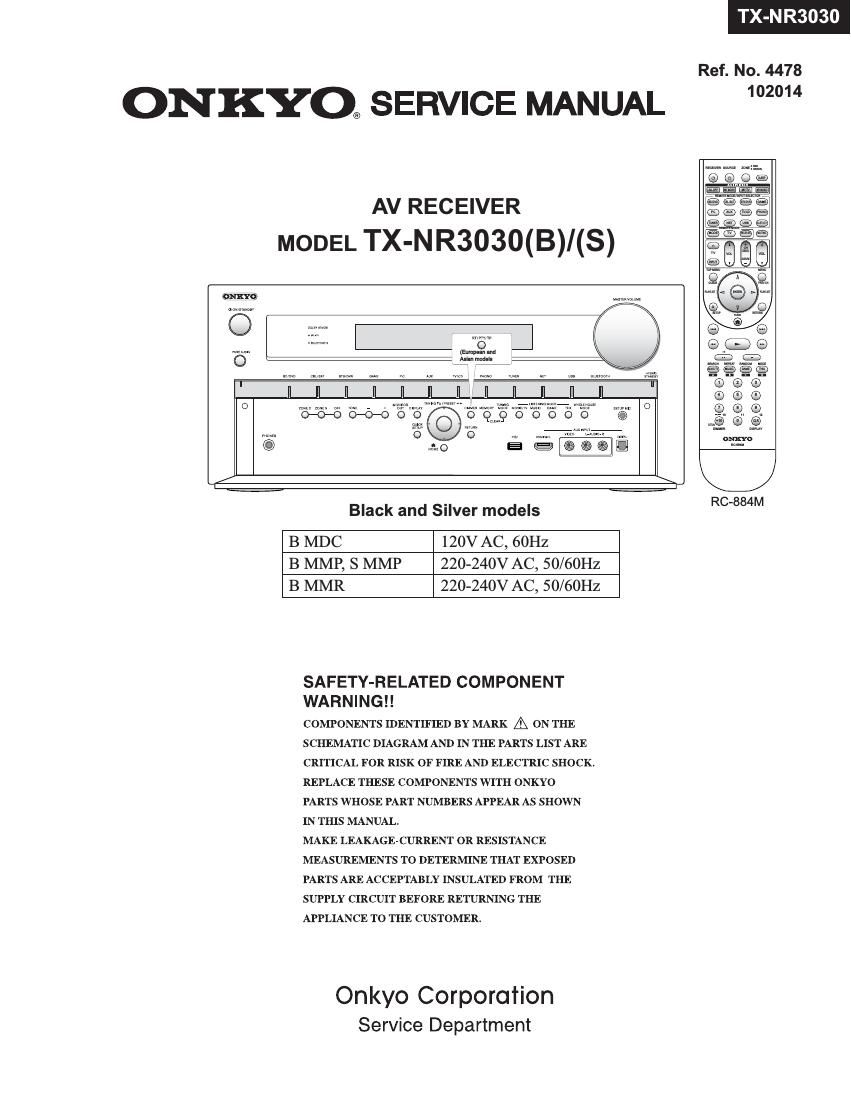

Onkyo TXNR 3030 Service Manual

Page 1

ONKYO. SERVICE MANUAL

AV RECEIVER

MODEL TX-N R3030(B)/(S)

Black and Silver models

B MDC 120V AC, 60Hz
B MMP, S MMP 220-240V AC, 50/60Hz
B MMR 220-240V AC, 50/60Hz

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

Onkyo Corporation
Service Department

TX-N R3030

Ref. No. 4478
102014

Page 2

DEBUG MODE-1
AUDIO DEBUG MODE-1I4

TX-NR1030/3030/ PR-SC553

AUDIO DEBUG MODE (Display mode of the audio information)
The operations of DSP and DIR etc are able to checked by the information displayed on FL in this debug mode.
This information will help to analysing digital audio no sound trouble.

To set in Debug mode

1. Press twice the ONISTANDBY key while pressing the DISPLAY key.

e'g' Main:

1.01/13515AE8

The version number of microprocessor is displayed

only for 3 seconds.

2. Press +(TONE) button while the version number of microprocessor is displayed.

e'g' DSP 1st/NET:

1.07/13514AEA

The version number of DSP is displayed

only for 3 seconds.

3. Press DISPLAY button while the version number of DSP is displayed.

99- 0A0002: :00
ANA:o:NON:

Step-1

4. Press DISPLAY button. I

59- 1:ANA 048k048k
2/0. 0.- 2.0:3/4

Step-2

5. Press DISPLAY button. I

69- 2:0:PCM :PCM
00:x:F: OFF

Step-3

6. Press DISPLAY button. I

99- SPO0F*00F00409
48 48256STB

Step-4

7. Press DISPLAY button. I

e-g- L:00
R:00

Step-5

8. Press DISPLAY button. I

99- 0:00

Step-6

9. Press DISPLAY button. I

e'Q'LS.00
RS:00

Step-7

%

Audio dubug mode

-i

10. Press DISPLAY button.

9"" LB:00
RB:00

11. Press DISPLAY button. 1

9"" LH:00
RH:00

12. Press DISPLAY button. I

e'g' LW:0 0
RW:0 0

13. Press DISPLAY button. I

99- sw;0 0
sw2;0 o

14. Press DISPLAY button.
Exit

Step-8

Step-9

Step-1O

Step-1 1

Page 74

5/94 PAGE

IPC BOARD PARTS LIST

m BAAF-1600-1 B : NSP
ICIRCUIT N0 PART NAME DESCRIPTION O'TY PART NO. (SN) REMARKS
:[SEMI CONDUCTOR] -
ID5009 ZENER DIODE DZ2J056MOL 1 224760560R2
ID5009 or ZENER DIODE UDZ85.GB ( 1) 224550560R2
{D5010 ZENER DIODE DZ2J056MOL 1 224760560R2
ED5010 or ZENER DIODE UDZSSBB ( 1) 224550560R2
§D6704 ZENER DIODE DZ2J036MOL 1 224760360R2
ID6901 CHIP TYPE DIODE DA2J10100 1 223303R2
ID6902 CHIP TYPE DIODE DA2J10100 1 223303R2
ID6902 or CHIP TYPE DIODE 188352 ( 1) 223234R2
{D6903 ZENER DIODE DZ2J036MOL 1 224760360R2
ID6904 DIODE RL1N4003 1 22380260T
§D6905 DIODE RL1N4003 1 22380260T
ID6906 D ID D E LN25XBGO 1 22380345
ID6907 CHIP TYPE DIODE DA2J10100 1 223303R2
ID6907 or CHIP TYPE DIODE 188352 ( 1) 223234R2
{D6908 CHIP TYPE DIODE DA2J10100 1 223303R2
ID6913 ZENER DIODE DZ2J036MOL 1 224760360R2
$05009 TRANSISTOR 2802713»BL 1 2213136R2
{05019 TRANSISTOR 2802713»BL 1 2213136R2
I05029 TRANSISTOR 2802412KvR 1 2214653R2
$05039 TRANSISTOR |NA6006AP1~T111 1 2217980R2
I05039 or TRANSISTOR 28A1200-Y(2LONK_ZE) ( 1) 2217584R2
I05049 TRANSISTOR |NA6006AP1~T111 1 2217980R2
105049 or TRANSISTOR 28A1200vY(2LONK_ZE) ( 1) 2217584R2
{05059 TRANSISTOR |NA6006AP1~T111 1 2217980R2
305059 or TRANSISTOR 28A1200-Y(2LONK_ZE) ( 1) 2217584R2
$05069 TRANSISTOR |NA6006AP1~T111 1 2217980R2
I05069 or TRANSISTOR 28A1200-Y(2LONK_ZE) ( 1) 2217584R2
I05089 TRANSISTOR IN06006AP1vT111 1 2217990R2
105089 or TRANSISTOR 2802880»Y(2LONK_ZE) ( 1) 2217594R2
{05099 TRANSISTOR IN06006AP1vT111 1 2217990R2
305099 or TRANSISTOR 2802880-Y(2LONK_ZE) ( 1) 2217594R2
$05100 TRANSISTOR 2802713»BL 1 2213136R2
{05110 TRANSISTOR 2802713»BL 1 2213136R2
I05120 TRANSISTOR 2802412KvR 1 2214653R2
$05130 TRANSISTOR |NA6006AP1~T111 1 2217980R2
I05130 or TRANSISTOR 28A1200-Y(2LONK_ZE) ( 1) 2217584R2
I05140 TRANSISTOR |NA6006AP1~T111 1 2217980R2
105140 or TRANSISTOR 28A1200vY(2LONK_ZE) ( 1) 2217584R2
{05150 TRANSISTOR |NA6006AP1~T111 1 2217980R2
305150 or TRANSISTOR 28A1200-Y(2LONK_ZE) ( 1) 2217584R2
$05160 TRANSISTOR |NA6006AP1~T111 1 2217980R2
I05160 or TRANSISTOR 28A1200-Y(2LONK_ZE) ( 1) 2217584R2
I05170 TRANSISTOR IN06006AP1vT111 1 2217990R2
105170 or TRANSISTOR 2802880»Y(2LONK_ZE) ( 1) 2217594R2
{05180 TRANSISTOR IN06006AP1vT111 1 2217990R2
305180 or TRANSISTOR 2802880-Y(2LONK_ZE) ( 1) 2217594R2
$06019 TRANSISTOR 2802412KvR 1 2214653R2
{06020 TRANSISTOR 2802412KvR 1 2214653R2
I06039 TRANSISTOR IN06006AP1vT111 1 2217990R2
106039 or TRANSISTOR 2802880»Y(2LONK_ZE) ( 1) 2217594R2
{06049 TRANSISTOR |NA6006AP1~T111 1 2217980R2
306049 or TRANSISTOR 28A1200-Y(2LONK_ZE) ( 1) 2217584R2
$06050 TRANSISTOR |NA6006AP1~T111 1 2217980R2
I06050 or TRANSISTOR 28A1200-Y(2LONK_ZE) ( 1) 2217584R2
I06060 TRANSISTOR IN06006AP1vT111 1 2217990R2
106060 or TRANSISTOR 2802880»Y(2LONK_ZE) ( 1) 2217594R2
306109 TRANSISTOR TTA004B,Q(S 1 2218012
306109 or TRANSISTOR TTA7004(Q)TO126 ( 1) 2217442
306119 TRANSISTOR TT0004B70(S 1 2218022
IQG119 or TRANSISTOR TT07004(Q)TO126 ( 1) 2217452

IQG120 TRANSISTOR TTCOO4B,Q(S 1 2218022

Page 154

85/94 PAGE

1R8098 CHIP TYPE CARBON RESISTOR RN72K1J-220JE 1 435032204R1
ER8099 CHIP TYPE CARBON RESISTOR RN72K1J~102JE 1 435031024R1
{R8100 CHIP TYPE CARBON RESISTOR RN72K1J~102JE 1 435031024R1
1R8101 CHIP TYPE CARBON RESISTOR RN72K1J-222JE 1 435032224R1
ER8102 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
{R8103 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
1R8104 CHIP TYPE CARBON RESISTOR RN72K1J-472JE 1 435034724R1
ER8105 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
{R8113 CHIP TYPE CARBON RESISTOR RN72K1J~101JE 1 435031014R1
1R8114 CHIP TYPE CARBON RESISTOR RN72K1J7101JE 1 435031014R1
ER8115 CHIP TYPE CARBON RESISTOR RN72K1J~104JE 1 435031044R1
{R8116 CHIP TYPE CARBON RESISTOR RN72K1J~100JE 1 435031004R1
1R8117 CHIP TYPE CARBON RESISTOR RN72K1J-222JE 1 435032224R1
ER8118 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
{R8121 CHIP TYPE CARBON RESISTOR RN72K1J7000JE 1 435030004R1
1R8122 CHIP TYPE CARBON RESISTOR RN72K1J-220JE 1 435032204R1
ER8123 CHIP TYPE CARBON RESISTOR RN72K1J~220JE 1 435032204R1
{R8124 CHIP TYPE CARBON RESISTOR RN72K1J7220JE 1 435032204R1
1R8125 CHIP TYPE CARBON RESISTOR RN72K1J-220JE 1 435032204R1
ER8126 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
{R8127 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
1R8128 CHIP TYPE CARBON RESISTOR RN72K1J7103JE 1 435031034R1
ER8129 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
{R8130 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
1R8131 CHIP TYPE CARBON RESISTOR RN72K1J7103JE 1 435031034R1
ER8151 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
{R8152 CHIP TYPE CARBON RESISTOR RN72K1J~100JE 1 435031004R1
1R8153 CHIP TYPE CARBON RESISTOR RN72K1J7100JE 1 435031004R1
ER8154 CHIP TYPE CARBON RESISTOR RN72K1J-562JE 1 435035624R1
{R8155 CHIP TYPE CARBON RESISTOR RN72K1J~100JE 1 435031004R1
1R8156 CHIP TYPE CARBON RESISTOR RN72K1J~562JE 1 435035624R1
ER8157 CHIP TYPE CARBON RESISTOR RN72K1J~100JE 1 435031004R1
{R8158 CHIP TYPE CARBON RESISTOR RN72K1J7562JE 1 435035624R1
1R8159 CHIP TYPE CARBON RESISTOR RN72K1J7100JE 1 435031004R1
ER8160 CHIP TYPE CARBON RESISTOR RN72K1J-562JE 1 435035624R1
{R8161 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
1R8162 CHIP TYPE CARBON RESISTOR RN72K1J7100JE 1 435031004R1
ER8163 CHIP TYPE CARBON RESISTOR RN72K1J-562JE 1 435035624R1
{R8164 CHIP RESISTOR NETWORK YCN1042227JK 1 43464C22204R1
IR8164 or CHIP RESISTOR NETWORK RM7LJ222X04 1 43484722204R2
ER8165 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
{R8166 CHIP TYPE CARBON RESISTOR RN72K1J~124JE 1 435031244R1
1R8171 CHIP TYPE CARBON RESISTOR RN72K1J~562JE 1 435035624R1
ER8185 CHIP TYPE CARBON RESISTOR RN72K1J7000JE 1 435030004R1
{R8186 CHIP TYPE CARBON RESISTOR RN72K1J7000JE 1 435030004R1
1R8188 CHIP TYPE CARBON RESISTOR RN72K1J7100JE 1 435031004R1
ER8201 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
{R8202 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
1R8203 CHIP TYPE CARBON RESISTOR RN72K1J7101JE 1 435031014R1
ER8204 CHIP TYPE CARBON RESISTOR RN72K1J~101JE 1 435031014R1
{R8205 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
1R8206 CHIP TYPE CARBON RESISTOR RN72K1J7120JE 1 435031204R1
ER8207 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
{R8208 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
1R8209 CHIP TYPE CARBON RESISTOR RN72K1J7120JE 1 435031204R1
ER8210 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
{R8211 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
1R8212 CHIP TYPE CARBON RESISTOR RN72K1J~390JE 1 435033904R1
ER8213 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
{R8214 CHIP TYPE CARBON RESISTOR RN72K1J7390JE 1 435033904R1
1R8215 CHIP TYPE CARBON RESISTOR RN72K1J7120JE 1 435031204R1
ER8216 CHIP TYPE CARBON RESISTOR RN72K1J~390JE 1 435033904R1
{R8217 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
1R8218 CHIP TYPE CARBON RESISTOR RN72K1J7120JE 1 435031204R1
ER8219 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
{R8220 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
1R8221 CHIP TYPE CARBON RESISTOR RN72K1J7120JE 1 435031204R1
ER8222 CHIP TYPE CARBON RESISTOR RN72K1J~120JE 1 435031204R1
