Onkyo TXNR 3007 Service Manual

This is the 281 pages manual for Onkyo TXNR 3007 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 281

Extracted text from Onkyo TXNR 3007 Service Manual (Ocr-read)

Page 1

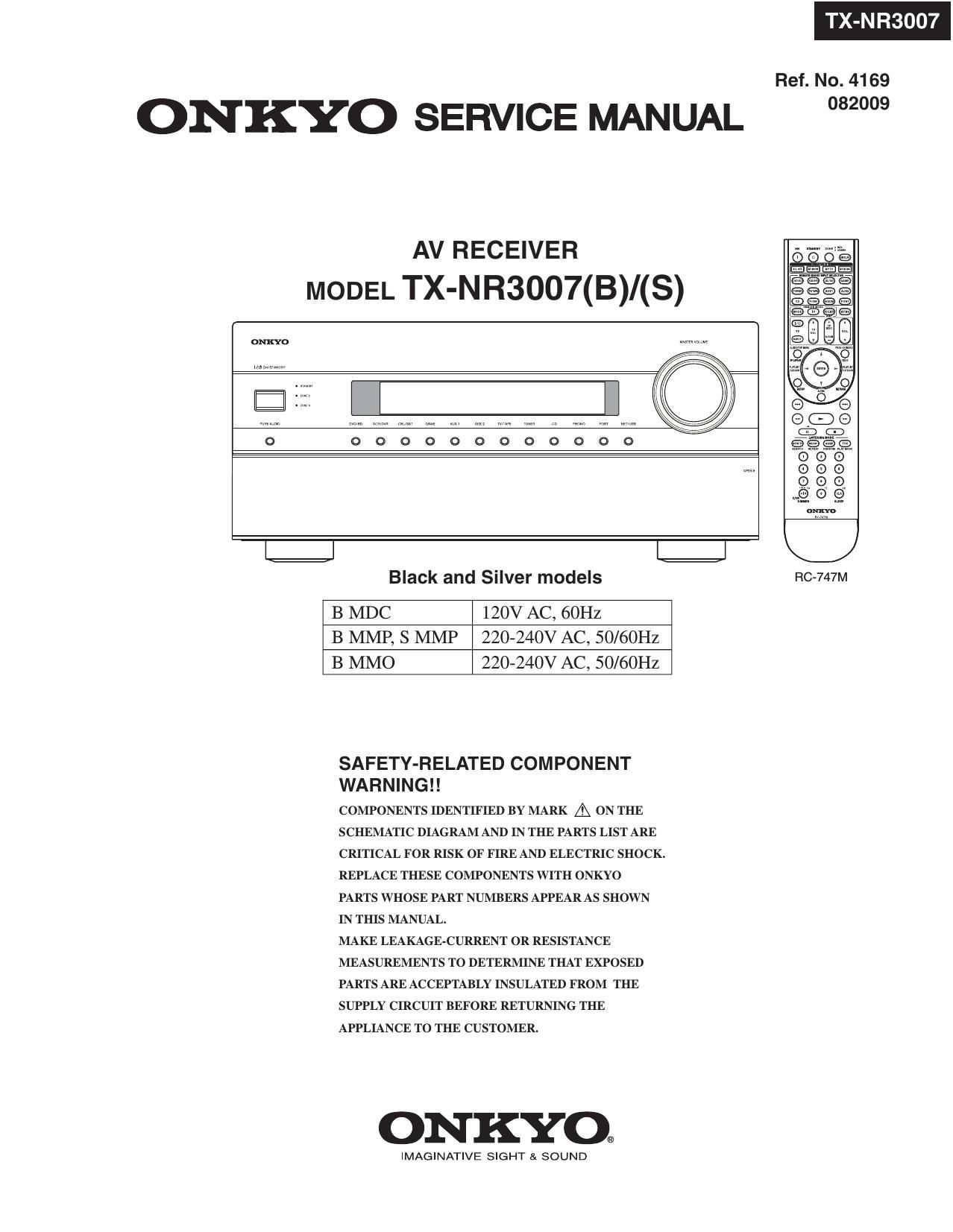

ONKYO SERVICE MANUAL

AV RECEIVER
MODEL TX-N R3007(B)/(S)

ONKYO

000000000000

Q 9

Black and Silver models

B MDC 120V AC, 60Hz
B MMP, S MMP 220-240V AC, 50/60Hz
B MMO 220-240V AC, 50/60Hz

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYO®

IMAGINATIVE SIGHT SI SOUND

TX-N R3007

Ref. No. 4169
082009

RC-747M

Page 2

SERVICE PROCEDURE-1

1. Replacing the fuses

EE This symbol located near the fuse indicates that the
fuse used is show operating type, For continued protection against
fire hazard, replace with same type fuse. For fuse rating, refer to

the marking adjacent to the symboll

EE Ce symbole indique que le fusible utilise est e lent

Pour une protection permanente, n'utiliser que des fusibles de meme
typel Ce demier est indique la qu le present symbol est apposre.

T NR3007

REF NO. PART NAME DESCRIPTION PART NO. REMARKS
F2001 FUSE 4A-UL/T»233 25232SGR !
F2001 or FUSE 4A-T/UL»ST2 252257GR l
F2004, 2005 FUSE 1,25A-UL/T-233 252318GR !
F2004, 2005 or FUSE 1,25A-T/UL-ST2 252251GR !
F6601, 6602, 6603, 6604 FUSE 20A-UL-250V 252304GR !
F9100 FUSE 6,3A-SE-EAK 252079GR !,
F9100 or FUSE 6,3A-SE-TL250V 252279GR !,
F9100 FUSE l2A-UL-ST6 25234OGR l,
F9301, 9401. 9402 FUSE 3.15A-UL/T-233 252323GR !
F9301, 9401. 9402 or FUSE 3115A-T/UL-ST2 252256GR !

: Canadian model
: European model
: Asian model

2. Safety check out
(U.SrAl model only)

After correcting the original service problem, perform the following safety check before releasing the unit to the customerl

Leakage current Check

Measure the leakage current to a known earth ground (water pipe or conduct etc) by connecting a leakage current
tester between the earth ground and exposed metal parts of the unit (input/output ground terminals, screw heads or metal overlays etc).
Plug the power supply cord directly into a 120Vac 601-12 wall socket and turn ON/STANDBY button on

Any current measured must not exceed 015mA1

3. Memory Backup

This model uses a EE-PROM IC in order to retain radio presets and other settings So, memory contents will be

kept eternally with no care

4. To initialize the unit

11 Press and hold down VCR/DVR button, then press ON/STANDBY button when the unit is powered on.
2, After " Clear " is displayed, the preset memory and each mode stored in the memory, are initialized and

will return to the factory settings.

Page 51

TX-NR1007/3007/5007/NA1007/5007,DTR-70.1/80.1

A | B | c | D E F | G. | H

PRINTED CIRCUIT BOARD VIEWS-12 I U005
MDISPLAY PC BOARD
(BADlS-0135)

Soldering side view
from component side

ﬂ

WVOLUME PC BOARD (BAETC-0139) m HEADPHONE JACK PC BOARD (BAETC-0137) -SWITCH PC BOARD (BASW-0136)

Soldering side view from component side Soldering side View from component side Soldering side view from component side

Page 65

EXPLODE

4/219 PAGE

A025 HOLDER (CLUMP) UA-O 1 27190432
A027 HOLDER WS-4NS 1 27191207
A029 RETAINER (HS-R) l 27142153A
A031 SCREW 3TTB+8B(3CM)SR 4 801637
A033 HOLDER (CLUMP) UA-O 1 27190432
A037 SCREW 3TTB+8B(3CM)SR 4 801637
A039 SCREW 3TTB+8B(3CM)SR 9 801637
A041 HEAT SINK(S) 240 1 27160608
A043 SCREW 3TTB+8B(3CM)SR 3 801637
A045 SCREW 3TTB+8B(3CM)SR 2 801637
A049 1B CUSHION W15 x 31 TAPE 1 28141585
A053 CHASSIS (SUB) 1 27100536B
A055 RETAINER (FBR) l 27142150A
A057 SCREW 3TTB+8B(3CM)SR 3 801637
A061 HOLDER SPM-4 4 27191154
A062 BUSHING CE-016 L225 1 28170097
A064 BUSHING L125 1 28170004
A065 BUSHING --- 1 28170070
A067 HOLDER KGPS-14RF 1 27190802
A069 BRACKET (FAN-L) 1 27131022A
A071 HOLDER (FAN) 4 27191307
A073 BRACKET (SUB-L) 1 27131060
A075 SCREW 3TTB+8B(3CM)SR 3 801637
A077 HOLDER WS-4NS 2 27191207
A079 BRACKET (FAN-R) l 27131023A
A081 HOLDER (FAN) 4 27191307
A083 BRACKET (SUB»R) 1 27131061
A085 SCREW 3TTB+8B(3CM)SR 3 801637
A087 HOLDER WS-4NS 1 27191207
A1 17 SCREW 4TTC+8C(3BC) 4 830440089GR
Al 19 SCREW 4TTC+8C(3BC) 4 830440089GR
A121 SPACER --- 4 27270489
A125 SCREW 3TTB+8B(3CM)SR 8 801637
