Onkyo TXNR 1030 Service Manual

Page 1

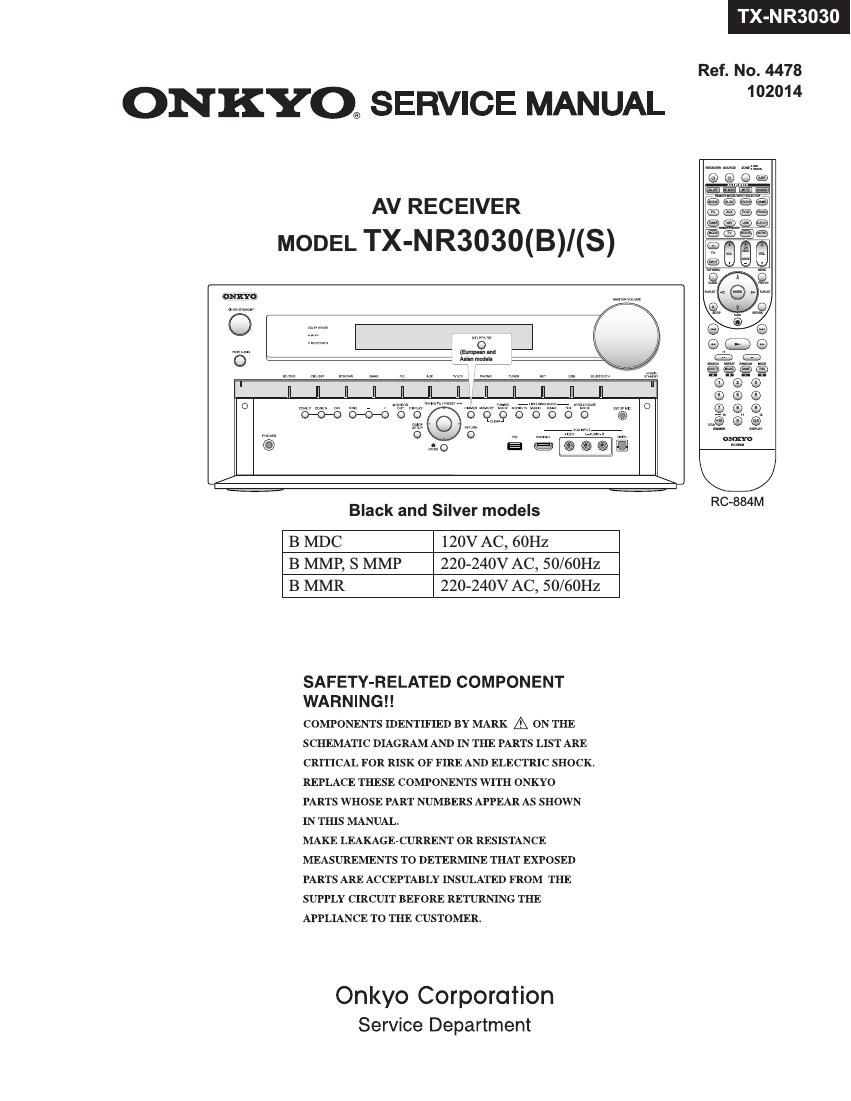

ONKYO. SERVICE MANUAL

AV RECEIVER

MODEL TX-N R3030(B)/(S)

Black and Silver models

B MDC 120V AC, 60Hz
B MMP, S MMP 220-240V AC, 50/60Hz
B MMR 220-240V AC, 50/60Hz

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

Onkyo Corporation
Service Department

TX-N R3030

Ref. No. 4478
102014

Page 2

DEBUG MODE-1
AUDIO DEBUG MODE-1I4

TX-NR1030/3030/ PR-SC553

AUDIO DEBUG MODE (Display mode of the audio information)
The operations of DSP and DIR etc are able to checked by the information displayed on FL in this debug mode.
This information will help to analysing digital audio no sound trouble.

To set in Debug mode

1. Press twice the ONISTANDBY key while pressing the DISPLAY key.

e'g' Main:

1.01/13515AE8

The version number of microprocessor is displayed

only for 3 seconds.

2. Press +(TONE) button while the version number of microprocessor is displayed.

e'g' DSP 1st/NET:

1.07/13514AEA

The version number of DSP is displayed

only for 3 seconds.

3. Press DISPLAY button while the version number of DSP is displayed.

99- 0A0002: :00
ANA:o:NON:

Step-1

4. Press DISPLAY button. I

59- 1:ANA 048k048k
2/0. 0.- 2.0:3/4

Step-2

5. Press DISPLAY button. I

69- 2:0:PCM :PCM
00:x:F: OFF

Step-3

6. Press DISPLAY button. I

99- SPO0F*00F00409
48 48256STB

Step-4

7. Press DISPLAY button. I

e-g- L:00
R:00

Step-5

8. Press DISPLAY button. I

99- 0:00

Step-6

9. Press DISPLAY button. I

e'Q'LS.00
RS:00

Step-7

%

Audio dubug mode

-i

10. Press DISPLAY button.

9"" LB:00
RB:00

11. Press DISPLAY button. 1

9"" LH:00
RH:00

12. Press DISPLAY button. I

e'g' LW:0 0
RW:0 0

13. Press DISPLAY button. I

99- sw;0 0
sw2;0 o

14. Press DISPLAY button.
Exit

Step-8

Step-9

Step-1O

Step-1 1

Page 95

26/94 PAGE

£07500 or ZENER DIODE UDZSs.2B I 1) 22455032032
£07501 ZENER DIODE DZZJ039MOL 1 22476039032
307501 or ZENER DIODE U0253.QB I 1) 22455039032
307520 CHIP TYPE DIODE DA2J10100 1 22330332
£07520 or CHIP TYPE DIODE 135352 I 1) 22323432
307521 CHIP TYPE DIODE DA2J10100 1 22330332
£07521 or CHIP TYPE DIODE 135352 I 1) 22323432
£07522 CHIP TYPE DIODE DA2J10100 1 22330332
307522 or CHIP TYPE DIODE 135352 I 1) 22323432
307523 CHIP TYPE DIODE DA2J10100 1 22330332
£07523 or CHIP TYPE DIODE 135352 I 1) 22323432
307530 ZENER DIODE DZZJ051MOL 1 22476051032
£07530 or ZENER DIODE U0235.1 B I 1) 22455051032
£07533 ZENER DIODE DZZJOSBMOL 1 22476063032
307534 ZENER DIODE DZZJ068MOL 1 22476003032
307560 CHIP TYPE DIODE DA2J10100 1 22330332
£07560 or CHIP TYPE DIODE 135352 I 1) 22323432
307561 CHIP TYPE DIODE DA2J10100 1 22330332
£07561 or CHIP TYPE DIODE 135352 I 1) 22323432
£07530 CHIP TYPE DIODE DA2J10100 1 22330332
307530 or CHIP TYPE DIODE 135352 I 1) 22323432
307531 CHIP TYPE DIODE DA2J10100 1 22330332
£07531 or CHIP TYPE DIODE 135352 I 1) 22323432
307532 CHIP TYPE DIODE DA2J10100 1 22330332
£07532 or CHIP TYPE DIODE 135352 I 1) 22323432
£07533 CHIP TYPE DIODE DA2J10100 1 22330332
307533 or CHIP TYPE DIODE 135352 I 1) 22323432
307591 LED 5053313ED2 1 225437
£07591A HOLDER (LED)LH-5-5 1 27191312
307592 LED Lw340A 1 225517
307593 LED 505331 3E7 02 1 225437
£07593A HOLDER (LED)LH-5-5 1 27191312
307594 LED Lw340A 1 225517
307593 LED SL|7343YBCVSF 1 225491
307597 LED LW340A 1 225517
307593 LED Lw340A 1 225517
:07505 TRANSISTOR KT0337503 1 221617532
£07511 TRANSISTOR KRC107S 1 221634032
307512 TRANSISTOR ZSA1162vGR 1 221437532
:07520 HYBRID IC BU2090F-E2 1 22242686R2
£07530 HYBRID IC NJM4580M-D 1 22241443R2
307532 TRANSISTOR RTAN430C-T112v1 1 221773032
E07532 0r TRANSISTOR 3N1441 I 1) 221541032
£07533 TRANSISTOR 3N2403 1 221454032
307533 or TRANSISTOR KRA1035 I 1) 221623032
:07534 HYBRID IC NJM4580MVD 1 22241443R2
£07540 PHOTO COUPLER 3331 B15 1 24120166
307560 REMOTE SENSOR IHM73638M3828 1 24130026
307597 TRANSISTOR DTCIZBJKA 1 221669032
£07597 0r TRANSISTOR KRC1053 I 1) 221729032
307350 FLUORESCENT TUBE 16*BT7165GINK 1 212276
307650A HOLDER (FL) 1 27191370
£07650Aor HOLDER (FL) I 1) 27191303
307651 TRANSISTOR 230271203 1 221314532
:07652 TRANSISTOR 230271203 1 221314532
EITRANS COIL]

3L7501 CHOKE COIL LBC2513T232M 1 231364M02232
3L7520 CHOKE COIL LB02513T470M 1 231364M47032
£L7530 CHOKE COIL LB02513T232M 1 231364M02232
3L7530 CHOKE COIL LBC2513T232M 1 231364M02232
3L7531 CHOKE COIL LB02513T232M 1 231364M02232
£L7532 CHOKE COIL LB02513T232M 1 231364M02232
3[CAPACITOR]

307500 CHIP TYPE CERAMIC CAPACITOR CK725F1E-10421 1 33216104031
£07501 CHIP TYPE CERAMIC CAPAcrrOR CK725F1E-104Z1 1 33216104031
307502 CHIP TYPE CERAMIC CAPACITOR CK725B1H»223K1 1 33210223531
307503 CHIP TYPE CERAMIC CAPACITOR CK72581H~223K1 1 33210223531
£07504 CHIP TYPE CERAMIC CAPAcrrOR CK72581H~223K1 1 33210223531

Page 149

80/94 PAGE

1R3125 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
ER3126 CHIP TYPE CARBON RESISTOR RN72K1JV470JE 1 435034704R1
{R3127 CHIP TYPE CARBON RESISTOR RN72K1J747OJE 1 435034704R1
1R3128 CHIP TYPE CARBON RESISTOR RN72K1J-472JE 1 435034724R1
ER3129 CHIP TYPE CARBON RESISTOR RN72K1JV470JE 1 435034704R1
{R3130 CHIP TYPE CARBON RESISTOR RN72K1J747OJE 1 435034704R1
1R3131 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
ER3133 CHIP TYPE CARBON RESISTOR RN72K1JV470JE 1 435034704R1
{R3134 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
1R3135 CHIP TYPE CARBON RESISTOR RN72K1JP103JE 1 435031034R1
ER3136 CHIP TYPE CARBON RESISTOR RN72K1J*000JE 1 435030004R1
{R3137 CHIP TYPE CARBON RESISTOR RN72K1J7000JE 1 435030004R1
1R3139 CHIP TYPE CARBON RESISTOR RN72K1JP101JE 1 435031014R1
ER3141 CHIP TYPE CARBON RESISTOR RN72K1JV470JE 1 435034704R1
{R3143 CHIP TYPE CARBON RESISTOR RN72K1J7392JE 1 435033924R1
1R3144 CHIP TYPE CARBON RESISTOR RN72K1JP101JE 1 435031014R1
ER3145 CHIP TYPE CARBON RESISTOR RN72K1J~392JE 1 435033924R1
{R3146 CHIP TYPE CARBON RESISTOR RN72K1J7390JE 1 435033904R1
1R3147 CHIP TYPE CARBON RESISTOR RN72K1J*000JE 1 435030004R1
ER3148 CHIP TYPE CARBON RESISTOR RN72K1J~390JE 1 435033904R1
{R3150 CHIP TYPE CARBON RESISTOR RN72K1J722OJE 1 435032204R1
1R31 54 CHIP TYPE CARBON RESISTOR RN72K1J~390JE 1 435033904R1
ER3155 CHIP TYPE CARBON RESISTOR RN72K1J~390JE 1 435033904R1
{R3156 CHIP TYPE CARBON RESISTOR RN72K1J7390JE 1 435033904R1
1R31 57 CHIP TYPE CARBON RESISTOR RN72K1J*000JE 1 435030004R1
ER3158 CHIP TYPE CARBON RESISTOR RN72K1J*000JE 1 435030004R1
{R3162 CHIP TYPE CARBON RESISTOR RN72K1J7390JE 1 435033904R1
1R3163 CHIP TYPE CARBON RESISTOR RN72K1J-220JE 1 435032204R1
ER3164 CHIP TYPE CARBON RESISTOR RN72K1JV472JE 1 435034724R1
{R3168 CHIP TYPE CARBON RESISTOR RN72K1J722OJE 1 435032204R1
1R3169 CHIP TYPE CARBON RESISTOR RN72K1J-680JE 1 435036804R1
ER3170 CHIP TYPE CARBON RESISTOR RN72K1J~391 FE 1 435033912R1
{R3171 CHIP TYPE CARBON RESISTOR RN72K1J7222FE 1 435032222R1
1R31 72 CHIP TYPE CARBON RESISTOR RN72K1J~392FE 1 435033922R1
ER3173 CHIP TYPE CARBON RESISTOR RN72K1J~390JE 1 435033904R1
{R3174 CHIP TYPE CARBON RESISTOR RN72K1J7390JE 1 435033904R1
1R31 75 CHIP TYPE CARBON RESISTOR RN72K1J-472JE 1 435034724R1
ER3176 CHIP TYPE CARBON RESISTOR RN72K1JV473JE 1 435034734R1
{R3177 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
1R3181 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
ER3182 CHIP TYPE CARBON RESISTOR RN72K1JV472JE 1 435034724R1
{R3183 CHIP TYPE CARBON RESISTOR RN72K1J747OJE 1 435034704R1
1R3184 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
ER3185 CHIP TYPE CARBON RESISTOR RN72K1JV473JE 1 435034734R1
{R3188 CHIP TYPE CARBON RESISTOR RN72K1J7473JE 1 435034734R1
1R3189 CHIP TYPE CARBON RESISTOR RN72K1J-473JE 1 435034734R1
ER3190 CHIP TYPE CARBON RESISTOR RN72K1JV472JE 1 435034724R1
{R3192 CHIP TYPE CARBON RESISTOR RN72K1J7472JE 1 435034724R1
1R3193 CHIP TYPE CARBON RESISTOR RN72K1J-472JE 1 435034724R1
ER3194 CHIP TYPE CARBON RESISTOR RN72K1JV472JE 1 435034724R1
{R3199 CHIP TYPE CARBON RESISTOR RN72K1J~102JE 1 435031024R1
1R3200 CHIP TYPE CERAMIC CAPACITOR CK72SB1H»102K1 1 332101025R1
ER3201 CHIP TYPE CARBON RESISTOR RN72K1J*000JE 1 435030004R1
{R3204 CHIP TYPE CARBON RESISTOR RN72K1J~103JE 1 435031034R1
1R3205 CHIP TYPE CARBON RESISTOR RN72K1JP103JE 1 435031034R1
ER3208 CHIP TYPE CARBON RESISTOR RN72K1J~121JE 1 435031214R1
{R3212 CHIP TYPE CARBON RESISTOR RN72K1J747OJE 1 435034704R1
1R3215 CHIP TYPE CARBON RESISTOR RN72K1J-221JE 1 435032214R1
ER3218 CHIP TYPE CARBON RESISTOR RN72K1JV470JE 1 435034704R1
{R3219 CHIP TYPE CARBON RESISTOR RN72K1J722IJE 1 435032214R1
.R3221 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
ER3224 CHIP TYPE CARBON RESISTOR RN72K1J~331JE 1 435033314R1
{R3226 CHIP RESISTOR NETWORK YCN104n4707JK 1 43464C47004R1
IR3226 or CHIP RESISTOR NETWORK RM7LJ470X04 1 43484747004R2
ER3230 CHIP TYPE CARBON RESISTOR RN72K1J~221JE 1 435032214R1
{R3232 CHIP TYPE CARBON RESISTOR RN72K1J722IJE 1 435032214R1
1R3235 CHIP TYPE CARBON RESISTOR RN72K1J-470JE 1 435034704R1
ER3237 CHIP TYPE CARBON RESISTOR RN72K1J~221JE 1 435032214R1
