Onkyo TXNR 1007 Service Manual
This is the 231 pages manual for Onkyo TXNR 1007 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXNR 1007 Service Manual (Ocr-read)
Page 1
TX-NR1007
Ref. No. 4165

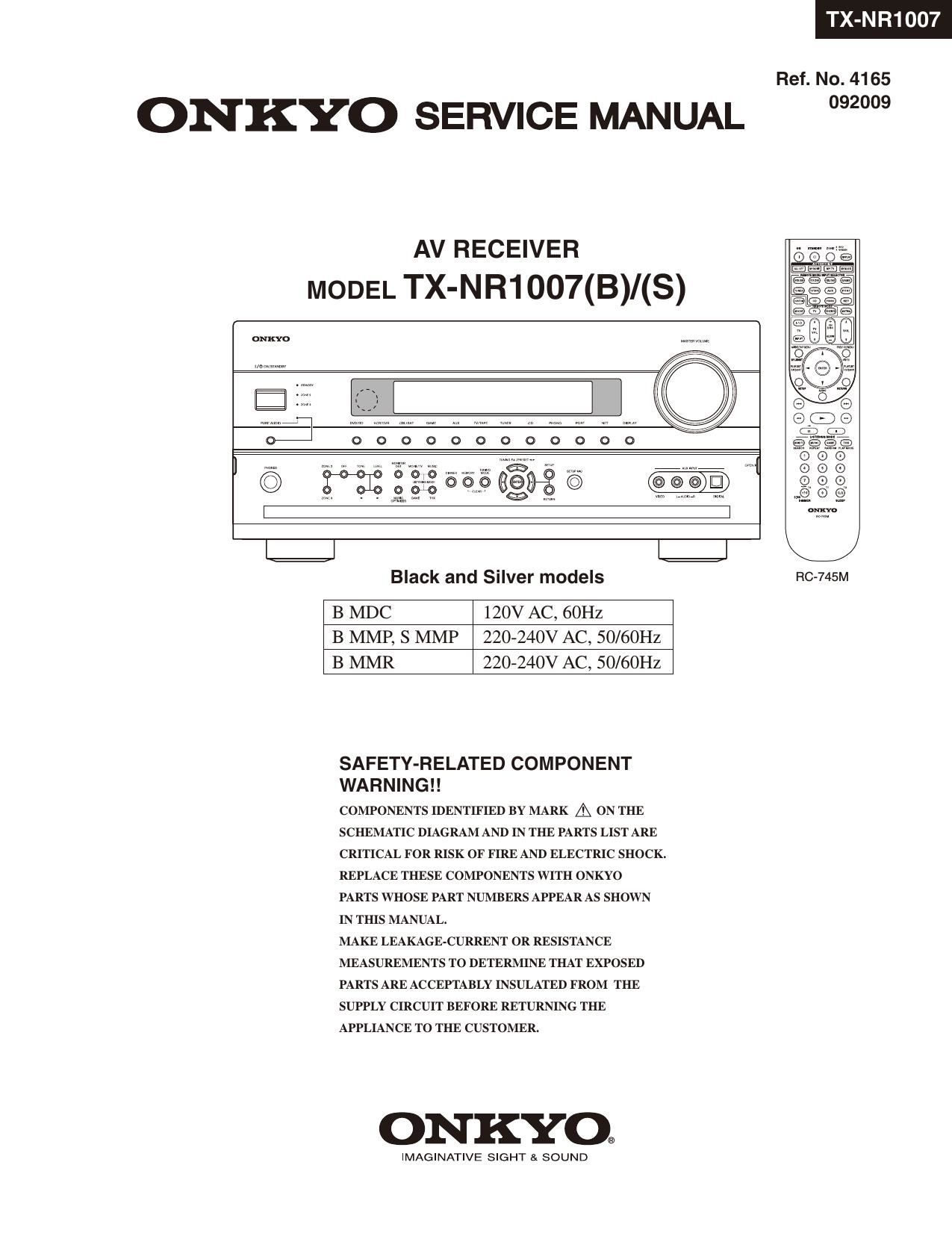

ONKYO SERVICE MANUAL °92°°9
AV RECEIVER
MODEL TX-NR1007(B)/(S)
0
g:
0
\g
In ,,,,, k
000000000000
<55 m; " 1? EM EEEE © -- "
Q |=J
Black and Silver models
B MDC 120V AC, 60Hz
B MMP, S MMP 220-240V AC, 50/60Hz
B MMR 220-240V AC, 50/60Hz
SAFETY-RELATED COMPONENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
