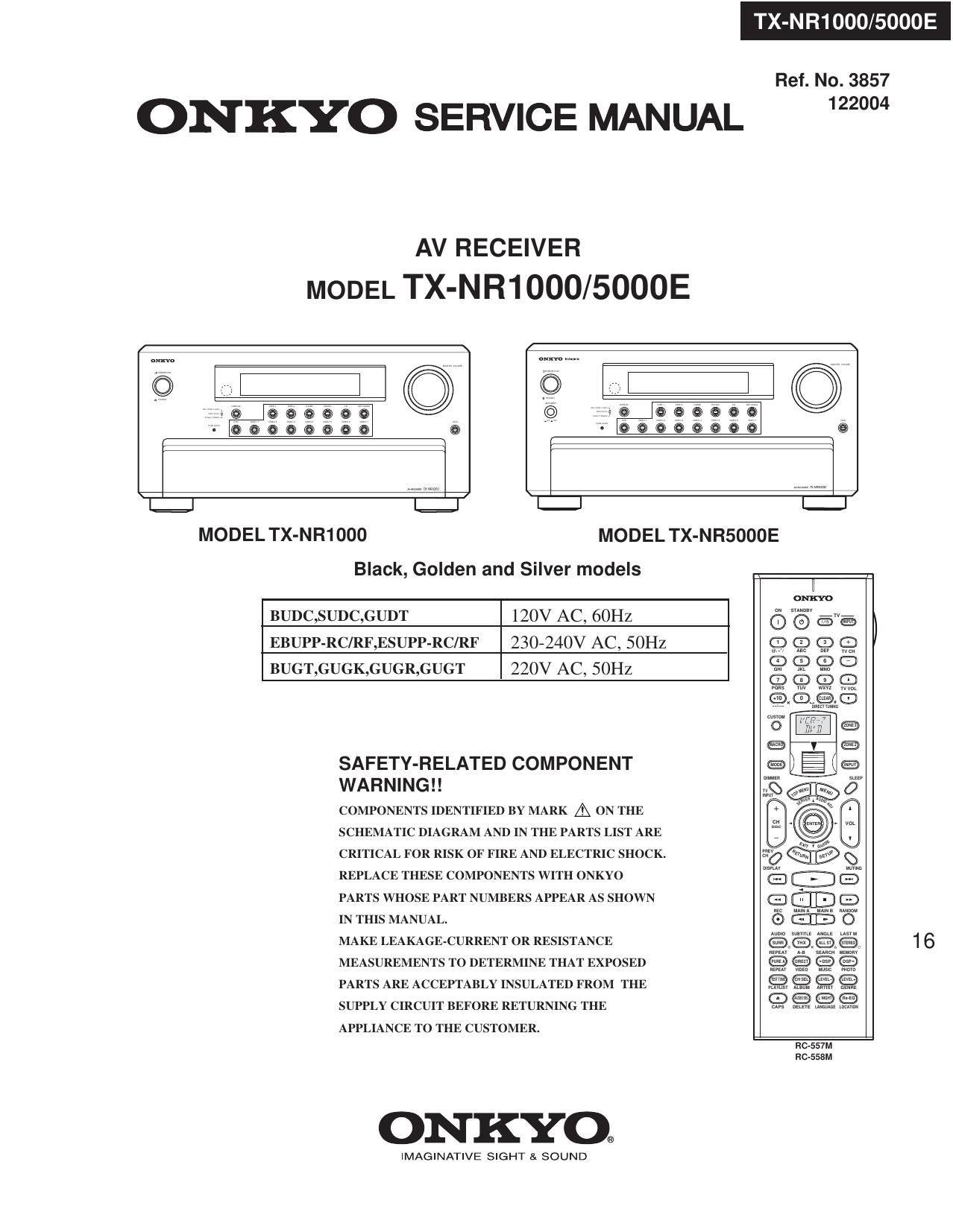

TX-NR1000/5000E

Ref. No. 3857

ONKYO SERVICE MANUAL 2°

AV RECEIVER
MODEL TX-NR1000/5000E

. e a e a e» 6 ® ® © a _
@@@®®@@@ @ ~©® @e o
L=l L; L=| L=|
MODEL TX-NR1 000 MODEL TX-NR5000E
Black, Golden and Silver models
BUDC,SUDC,GUDT 120V AC, 60Hz

EBUPP-RC/RF,ESUPP-RC/RF 230-240V AC, SOHZ
BUGT,GUGK,GUGR,GUGT 220V AC, SOHZ

SAFETY-RELATED COMPONENT
WARNING! !

COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

16

Rc-557M
Rc-558M

ONKYO.

IMAGINATIVE SIGHT & SOUND

Page 2

SPECIFICATIONS

NR1000/5000E

General

Power Supply Rating
North American and some
Asian models:
European & Australian rnodels
Asian models

Consumption Power
USA & Canadian models:

AC 120V, 60 Hz

:AC 230-240V, 50 HZ

AC 220»230V, 50 Hz
13.8A

European & Australian models:1,200 W

Asian models
Standby Power Consumption:
Dimensions (WXHXD):

Weight:
Inputs:
Audio
Multichannel (7.1ch) Inputs:
Phono (MM):
Line inputs:

Digital inputs Coaxial:
Digital inputs Optical:

Video
Composite Video inputs:

SVideo inputs:

Component Video RCA
inputs:

Component Video BNC
input:

Audio and Video

HDMI inputs (19-pin):
Miscellaneous

Outputs:
Audio
Speakers A:

Speakers B:

Pre out A:

Pre out B:

Headphones:

Line outputs:

Digital outputs Coaxial:

Digital outputs Optical:
Video

Composite Video outputs:

S Video outputs:

Component Video FICA
outputs:

Component Video BNC
output:

Audio and Video
HDMI output (19-pin):

1200 w

3.9w

435 x220>< 480.5 mm

(17-1/ "xB-11/16"x18-15/16")
33 kg (72.8 lbs)

2

1

9 (assignable), 1 (Fixed) (Video 7
on the tront panel)

6

6 (assignable), 1 (Fixed) (Video 7
on the tront panel)

6 (assignable),
1 (fixed, on the front panel)
6 (assignable),
1 (fixed, on the tront panel)

4 (USA and Canadian models),
3 (Others)

1 (other than USA and Canadian
models)

2
3»IR in (Phoenix connector) for
Main, Zone 2 and Zone 3

Front L/Ft, Center, Surround L/R,
Surround Back L/R

Front L/Ft, Center, Surround UFI,
Surround Back L/R or Powered
Zone 2 UR

Front L/Ft, Center, Surround L/FI,
Surround Back L/R, Subwoofer
Subwooter

1

5 (assignable to Recout, Zone 2 out
and Zone 3 out)

2 (assignable to Recout, Zone 2 out
and Zone 3 out)

2 (assignable to Recout, Zone 2 out
and Zone 3 out)

3 (assignable to Monitor out A/B,
Recout, Zone 2 out and Zone 3 out)
1 (fixed, Monitor out A)

3 (assignable to Monitor out ND
and Recout)

1 (fixed, Monitor out A)

2 (USA & Canadian models),
1 (Others)

1 (other than USA & Canadian
models)

1

Miscellaneous
IR out(1/8-inch mini-jack):
12V Trigger out (1/8-inch
mini-jack):
Inputs/Outputs:
Miscellaneous
l. LINK(A UDIO) (4 pin):
Ethernet (Net-Tune):
RI (1/8»inoh mini-jack):
RS232 (9 pin D»SUB
Female connector):
Antennas:
FM:
AM:

AC Inlet:
AC Outlets:

USA & Canadian models:
Asian & Australian models:
European models

Amplifier Section

Power Output (All channels):
USA & Canada (FTC):

Europe (DIN):

Asia (JEIAT)

Dynamic Power:
THD (Total Harmonic Distor-
tion):

Damping Factor:
IM Distortion:

3 (fot Main, Zone 2 and Zone 3)

5 (forA, B, C, D, E)

2
1
1

1

75 ohms unbalanced

Included loop antenna and external
terminal

1 (IEC type)

1 (Switched, 120W 1A max.)
1 (Switched, 100W max.)
1 (Switched, 100 W max.)

150Watts perchannel min. RMS
lnto 8 ohms 2 channel driven,
from 20 to 20,000 Hz with no
more than 0.05% total harmonic
distortion.

200Watts per channel min. RMS
into 6 ohms 2 channel driven, 1,000
Hz with no more than 0.1% total
harmonic distortion.

260Watts per channel min. RMS
into 8 ohms 2 channel driven,
1,000 Hz with no more than 0.1%
total harmonic distortion. [BTL]
200Watts per channel min. RMS
into 6 ohms 2 channel driven, 1,000
HZ DIN

280Watts per channel min. RMS
into 8 ohms 2 channel driven, 1,000
Hz DIN [BTL]

2x240 Watts into 6 ohms, 1,000

Hz

2x350 Watts into 6 ohms, 1,000
Hz (BTL)

2 x 340W (3 Q, 2 channel driven)
2 X 260W (4 Q, 2 channel driven)
2 X 175W (8 Q, 2 channel driven)

0.05% (rated power)
0.05% (1 watt output)
80 at 8 ohms

0.05% (rated power)
0.05% (1 watt output)

Input SensitiVity and Impedance:

Audio

Video (DVD, VIDEO 15)

Component

200 mV, 50 k9 (AUDIO IN 19/
FRONT)

2.5 mV, 50 kQ(PHONO MM)
200 mV, 50 kQ(MULT| IN FR/FL/
C/SR/SL/SBR/SBL)

36 mV, 50 kQ(MULTI IN SUB)
0.5 Vp»p,759 (DIGITAL IN
COAXIAL 1~6)

1 Vp»p, 759 (Composite \fideo)

1 Vpep,75§} (S Video,Y signal)
0.28 Vp-p,75§2 (S Video, C signal)
1 Vp-p,75§2 (Y)

0.7 Vp»p,75§2 (PE/CE, PH/CH)
