Extracted text from Onkyo TXNR 1000 Service Manual 2 (Ocr-read)

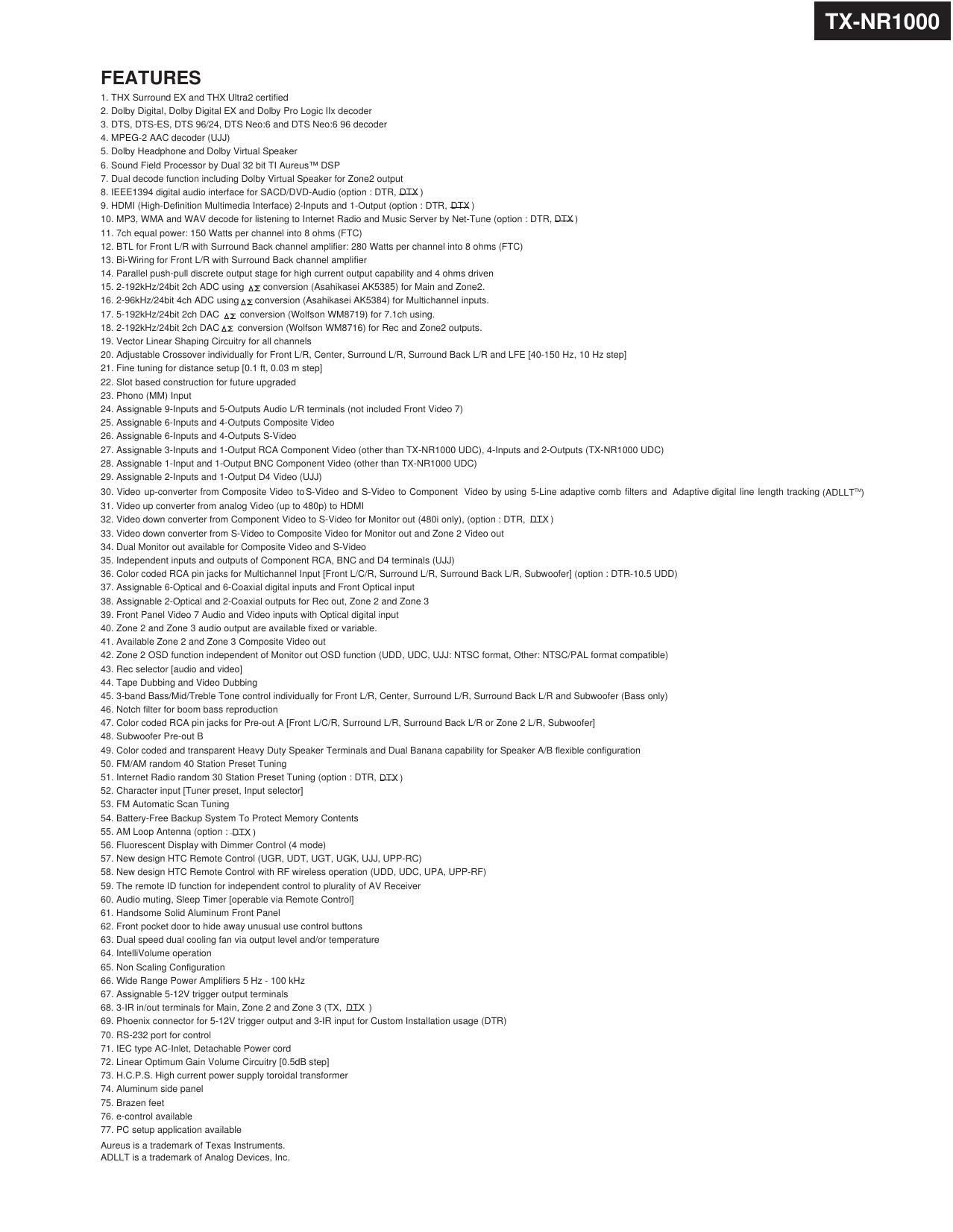

Page 1
RDC-7.1 FEATURES 1. THX Surround EX and THX Ultra2 certified 2. Dolby Digital, Dolby Digital EX and Dolby Pro Logic IIx decoder 3. DTS, DTS-ES, DTS 96/24, DTS Neo:6 and DTS Neo:6 96 decoder 4. MPEG-2 AAC decoder (UJJ) 5. Dolby Headphone and Dolby Virtual Speaker 6. Apogee master clock 7. Sound Field Processor by Dual 32 bit TI Aureus™ DSP 8. Dual zone decode function including Dolby Virtual Speaker for Zone2 output 9. IEEE1394 digital audio interface for SACD / DVD-Audio 10. HDMI (High-Definition Multimedia Interface) 2-Inputs and 1-Output (option for UDD, UJJ) 11. MP3, WMA and WAV decode for listening to Internet Radio and Music Server by Net-Tune (option for UDD, UJJ) 12. BTL for Front L/R with Surround Back channel available 13. Bi-Wiring for Front L/R with Surround Back channel available 14. 2-192kHz/24bit 2ch ADC using conversion (Asahikasei AK5385) for Main and Zone2. 15. 2-96kHz/24bit 4ch ADC using conversion (Asahikasei AK5384) for Multichannel inputs. 16. 5-192kHz/24bit 2ch DAC conversion (Wolfson WM8719) for 7.1ch using. 17. 2-192kHz/24bit 2ch DAC conversion (Wolfson WM8716) for Rec and Zone2 outputs. 18. Vector Linear Shaping Circuitry for all channels 19. Adjustable Crossover individually for Front L/R, Center, Surround L/R, Surround Back L/R and LFE [40-150 Hz, 10 Hz step] 20. Fine tuning for distance setup [0.1 ft, 0.03 m step] 21. Slot based construction for future upgraded 22. Phono (MM) Input 23. Assignable 9-Inputs and 5-Outputs Audio L/R terminals 24. Assignable 6-Inputs and 4-Outputs Composite Video (option for UDD, UJJ) 25. Assignable 6-Inputs and 4-Outputs S-Video (option for UDD, UJJ) 26. Assignable 3-Inputs and 1-Output RCA Component Video (option for UDD, UJJ) 27. Assignable 1-Input and 1-Output BNC Component Video (option for UDD, UJJ) 28. Assignable 2-Inputs and 1-Output D4 Video (option for UJJ) 30. Video up converter from analog Video (up to 480p) to HDMI (option for UDD, UJJ) 31. Video down converter from Component Video to S-Video for Monitor out (480i only), (option for UDD, UJJ) 32. Video down converter from S-Video to Composite Video for Monitor out and Zone 2 Video out (option for UDD, UJJ) 33. Dual Monitor out available for Composite Video and S-Video (option for UDD, UJJ) 34. Independent inputs and outputs of Component RCA, BNC and D4 terminals (option for UJJ) 35. Color coded RCA pin jacks for Multichannel Input [Front L/C/R, Surround L/R, Surround Back L/R, Subwoofer] (option for UDD) 36. Assignable 1-AES / EBU (option for UDD), 6-Optical and 6-Coaxial digital inputs 37. Assignable 2-Optical and 2-Coaxial outputs for Rec out, Zone 2 and Zone 3 38. Zone 2 and Zone 3 audio output are available fixed or variable. 39. Available Zone 2 and Zone 3 Composite Video out 40. Zone 2 OSD function independent of Monitor out OSD function (UDD, UJJ: NTSC format, Other: NTSC/PAL format compatible) 41. Rec selector [audio and video] 42. Tape Dubbing and Video Dubbing 43. 3-band Bass/Mid/Treble Tone control individually for Front L/R, Center, Surround L/R, Surround Back L/R and Subwoofer (Bass only) 44. Notch filter for boom bass reproduction 45. Balanced 7.1 channel Preout for noise free signal transmission 46. Color coded RCA pin jacks for Pre-out A and B [Front L/C/R, Surround L/R, Surround Back L/R or Zone 2 L/R, Subwoofer] 47. FM/AM random 40 Station Preset Tuning (option for UDD, UJJ) 48. Internet Radio random 30 Station Preset Tuning (option for UDD, UJJ) 49. Character input [Tuner preset, Input selector] 50. FM Automatic Scan Tuning (option for UDD, UJJ) 51. Battery-Free Backup System To Protect Memory Contents 52. AM Loop Antenna (option for UDD, UJJ) 53. Fluorescent Display with Dimmer Control (4 mode) 54. New design HTC Remote Control (UDT, UGT, UGK, UJJ, UPP-RC) 55. New design HTC Remote Control with RF wireless operation (UDD, UPA, UPP-RF) 56. The remote ID function for independent control to plurality of AV Receiver 57. Audio muting, Sleep Timer [operable via Remote Control] 58. Handsome Solid Aluminum Front Panel 59. Front pocket door to hide away unusual use control buttons 60. Dual speed dual cooling fan via output level and/or temperature 61. IntelliVolume operation 62. Non Scaling Configuration 63. Wide Range Power Amplifiers 5 Hz - 100 kHz 64. Assignable 5-12V trigger output terminals 65. 3-IR in/out terminals for Main, Zone 2 and Zone 3 (UDT, UGT, UGK, UJJ, UPP, UPA) 66. Phoenix connector for 5-12V trigger output and 3-IR input for Custom Installation usage (UDD) 67. RS-232 port for control 68. IEC type AC-Inlet, Detachable Power cord 69. Linear Optimum Gain Volume Circuitry [0.5dB step] 70. H.C.P.S. High current power supply toroidal transformer 71. Aluminum side panel and top cover 72. Brazen feet 73. e-control available 74. PC setup application available Aureus is a trademark of Texas Instruments. ADLLT is a trademark of Analog Devices, Inc. Video up-converter from Composite Video to S-Videoand S-Video to Component Video by using 5-Line adaptive comb filters and Adaptive digital line length tracking (ADLLT TM) (option for UDD, UJJ) 29.
Page 2
TX-NR1000 FLOW CHART Analog 2 channels TX-NR1000 A 1 2 3 4BCDE Flowchart when a signal does not pass through DSP circuit Analog 2 ch. input INPUT NCAF-814 5 NCAR-8139 (For TX-NR1000/TX-NR5000E/DTR-10.5 ) NCAF-8156 (For RDC-7.1 ) OUTPUT Zone3 Zone2 MAIN Zone2 REC/Zone3 via ANALOG INPUTNCAF-8144 via DIGITAL via ANALOG OUTPUTvia DIGITAL Zone2 Zone3 via ANALOG REC/Zone3 via DIGITAL REC/Zone3 How to check: After all speaker setting is set "Yes" and Audio Selector is set "Analog", the unit is set "DIRECT". How to clear: Hold down "CD" button and then press "STANDBY /ON" button. Q421 MAIN,Zone2,REC/Zone3 Selector PH(P1860) Audio1-3(P1861) Audio4-6(P401) Audio7-9(P402) Q4869 Selector 22,43 24,41 26,39 5,24 Q4040-Q4047 Volume Refer to a sheet "Volume" for Q4060, Q4070 etc Muting Relay PREOUT 6,23 Q4871 Selector Q4870 Selector 4,25 8,21 9,20 For Powered Zone2 To DSP Signal Flow Q1485,Q1486 Zone2 Volume Refer to a sheet "Volume" for 10,19 For Zone2 LINE OUT or PREOUT Audio4-5(P403) Audio1-3(P1862) Q420 Zone2,Zone3,RE C Selector Q1860 Zone2,Zone3,RE C Selector REC(via ANALOG/via DIGITAL) Selector Q1655,Q1656 Zone3 Volume Refer to a sheet "Volume" for 10,24 9,25 11,23 Main AMP Relay SPEAKER OUT
