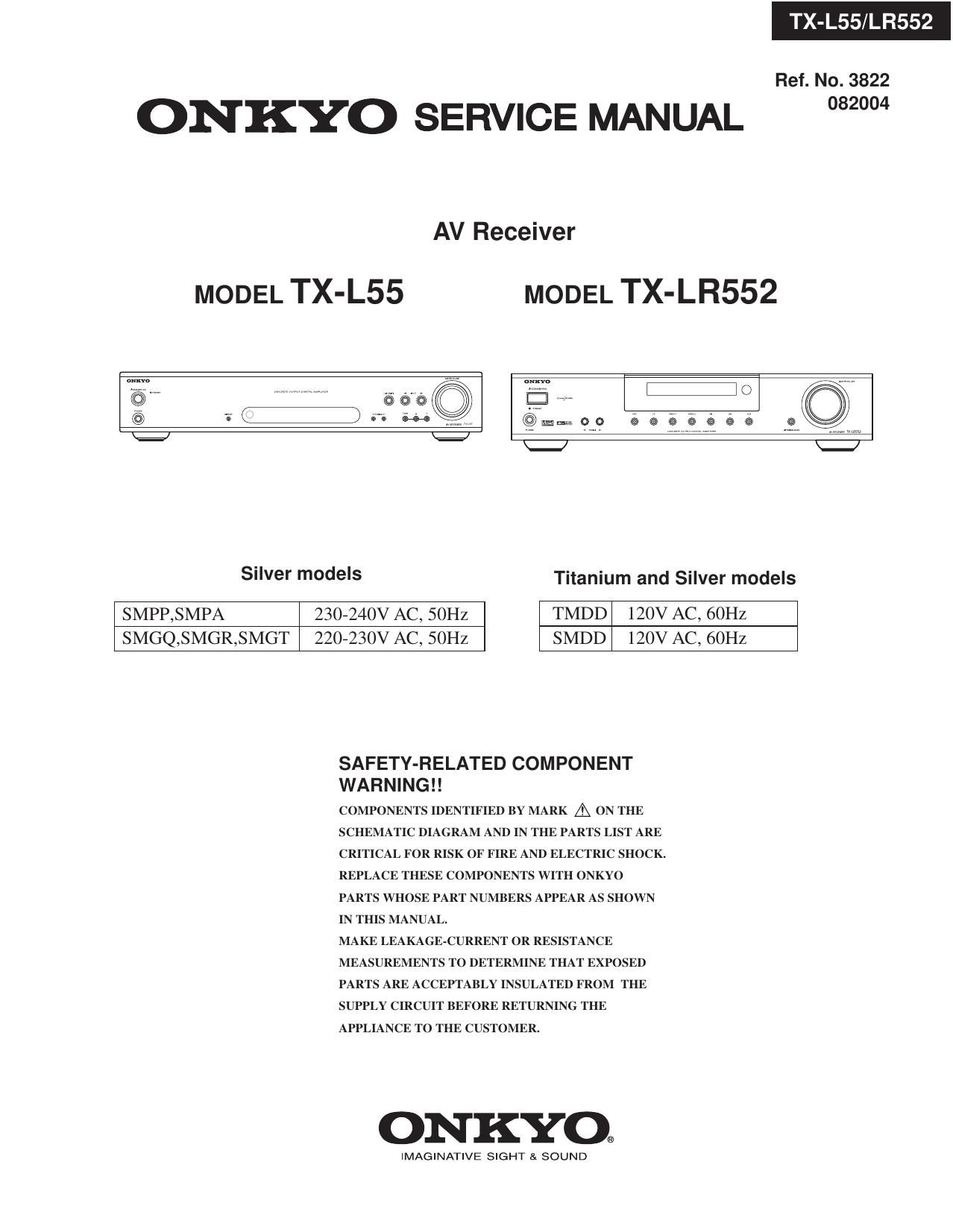

Page 1
TX-L55/LR552
Ref. No. 3822
ONKYO SERVICE MANUAL 2°
AV Receiver
MODEL TX-L55 MODEL TX-LR552
@m H mm. @@_©< .7,_ O
@ a :D a"; m ,,,,,,, @ gm. 9,}? g @ ©®® @ :@
W
Silver models Titanium and Silver models
SMPP,SMPA 230-240V AC, SOHZ TMDD 120V AC, 60Hz
SMGQ,SMGR,SMGT 220-230V AC, SOHZ SMDD 120V AC, 60HZ
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ()N THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ()NKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT ()R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
