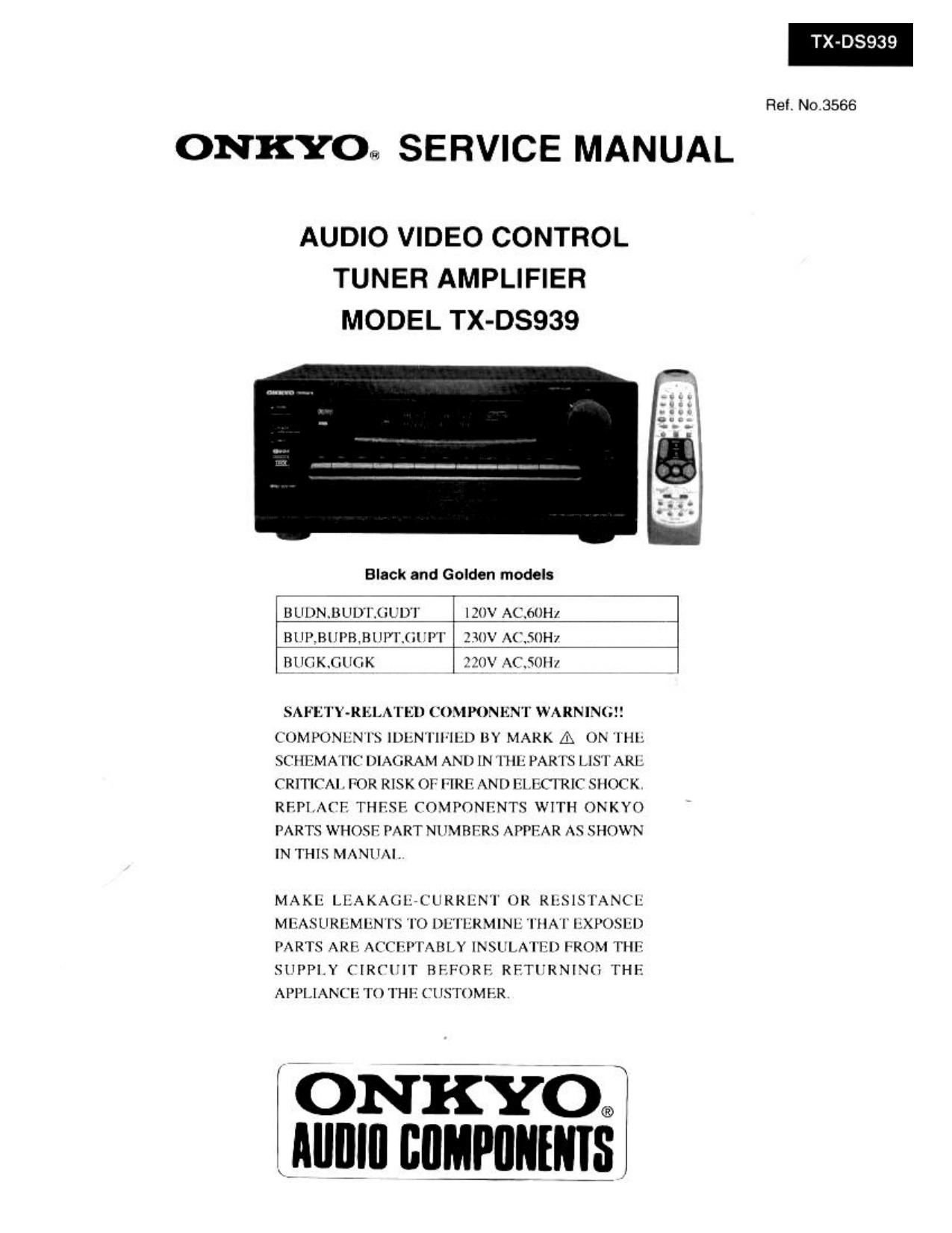

Onkyo TXDS 939 Service Manual

Page 2

D8939

SPECIFICATIONS

AMPLIFIER SECTION

Power output:

IM distortion:

Damping factor

Input sensitivity/impedance:

Output level/im

Phono overload:
Frequency response:

RIAA deviation:
Tone control:

Signal-to-noise ratio:

Muting:

VIDEO SECTIO

Television format:

(Surround mode: OFF)
L and R FRONT SPEAKERS
120 watts per channel min. RMS: at 8 ohms; both chan-
nels driven between 20 Hz and 20,000 Hz with no more
than 0:05 "/0 total harmonic distortion
Continuous power 2 x 160 Watt at (:0th (DIN)
LEFT, RIGHT, CENTER, LEFT SURROUND and RIGHT
SURROUND
100 watts per channel min: RMS at 8 ohms, three chan-
nels driven from 20 Hz to 20,000 Hz with no more than
0.08% total harmonic distortion.
0.05% at rated power
(L and R FRONT in Stereo mode)

: 60 at 8 ohms (L and R)
Phono:

2.5 mV/SO kohms
Line (CD, TAPE-1 and - 2,
VIDEO-1 ~ -7):

200 mV/SO kohms
Amp in (LEFT, RIGHT, CENTER, LEFT
SURROUND and RIGHT SURROUND):

1 V/50 kohms (100 W output)
OUTPUT (REC) (TAPEei and ~2):

200 mV/2.2 kohms
OUT (VIDEO 1-- 3, 7):

200 mV/2,2 kohms
PRE OUT (LEFT. RIGHT, CENTER, LEFT
SURROUND, RIGHT SURROUND,
SUBWOOFER):

I W470 ohms
120 mV RMS. at 1,000 Hz, 0.5 % THD.
20 to 30,000 HZ, $0.5 dB
(Line in, Stereo mode)
20 to 20,000 HZ, 10.8 dB

pedance:

BASS: iIOdB at50 HZ
MIDBASS: :10 dB at 300 Hz
TREBLE: :10 dB at 10,000 Hz
PHONO: 80 dB (IHF A, SmV input)
Line: 100 dB (IHF A)

-och

N
NTSC (US and Canadian models)
NTSC/PAL (Other models)

Input sensitivityfimpedance

Output level/im

IN (VIDEO-1 ~7) VIDEO (Composite):
1Vp7p/75 ohms
IN (VIDE071~7) S-VIDEO (Y Signal):
Wop/75 ohms
IN (VIDEO-1~7) S-VIDEO (C signal):
0:28Vp-p/75 ohms
pedance
OUT (VIDEO-14 3, 7, MONITOR OUT)
VIDEO (Composite):
Wop/75 ohms
OUT (VIDEO-1~ 3, 7, MONITOR OUT)
S-VIDEO (Y signal):
1Vp>p/75 ohms
OUT (VIDEO-1~3, 7, MONITOR OUT)
S-VIDEO (C signal):
0,28Vpp/75 ohms

DIGITAL SECTION

Digital input sampling frequency:
32, 44:1, 48 kHz

Input sensitivity/impedance:
Coaxial: 0.5 Vpp/75 ohms
AC-SRF: 0.4 Vpp/75 ohms

TUNER SECTION
FM:

Tuning range: 8750 » 106.00 MHz (50 kHz steps)

Usable sensitivity: Mono: 11.2 dBf, 101N175 ohms)
Stereo: 17,2 dBf, 2.0 (N (75 ohms)
50-dB Quieting sensitivity: Mono: 17:2 dBf, 2.0 (N (75 ohms)
Stereo: 37:2 dBf, 20 uV (75 ohms)
Capture ratio: 15 dB
Image rejection ratio: 85 dB
IF rejection ratio: 90 dB
Signal-to-noise ratio: Mono: 76 dB
Stereo: 70 dB
Alternate channel
Attenuation: 55 dB
AM suppression ratio: 50 dB
Harmonic distortion: Mono: 0.1%
Stereo: 0.2%

Frequency response:
Stereo separation:

30715,000 Hz :10 dB
45 dB at 1kHz
30 dB between 100 and 10,000 HZ

Muting level: 17.2 dBf
AM:
Tuning: U5. and Canadian models

530 to 1710 kHz (IO-kHz steps)
Others models
522 to 1611 kHz (e-kHz steps)

Usable sensitivity: 30 (W
Image rejection ratio: 40 dB
IF rejection ratio: 40 dB
Signal-to-noise ratio: 40 dB
Harmonic distortion: 0.7%

GENERAL
Power supply: U.S. and Canadian models
ACIZO V, 60 Hz
Other models
AC 230 V, 50 Hz
435 x 195 x 456 mm
(17-1/8'x 7-11/16'X 17-15/16')
21 kg(46,3 lbs.)

Dimensions (W x H x D):
Weight:

REMOTE CONTROL RC-310M
Transmitter:

Signal range:

Power supply:

Infrared
Approx. 5 meters (16 ft)
Two AA batteries (1.5 Vx 2)

Specifications and features are subject to change without notice.
