Onkyo TXDS 898 Service Manual

Extracted text from Onkyo TXDS 898 Service Manual (Ocr-read)

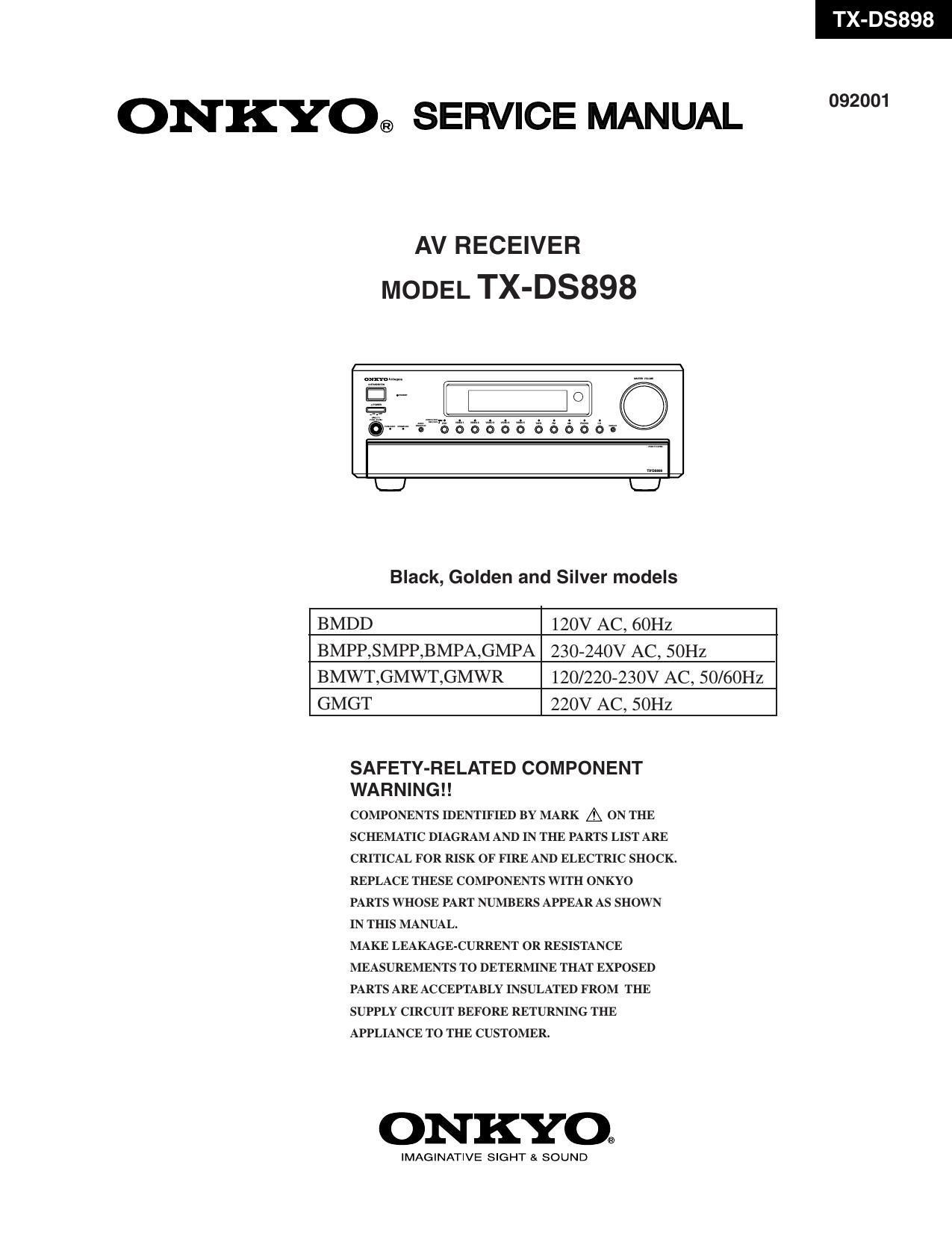

Page 1

TX-D3898

ONKYO® SERVICE MANUAL 2"

AV RECEIVER
MODEL TX-DSBQ8

Black, Golden and Silver models

BMDD 120V AC, 60Hz
BMPP,SMPP,BMPA,GMPA 230~240V AC, 50Hz
BMWT,GMWT,GMWR 120/220-230V AC, 50/60Hz
GMGT 220V AC, SOHZ

SAFETY-RELATED COMPONENT
WA R N I N G ! !

COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.

MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.

ONKYOG

IMAGINATIVE SIGHT & SOUND
