Onkyo TXDS 797 Service Manual
This is the 57 pages manual for Onkyo TXDS 797 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXDS 797 Service Manual (Ocr-read)
Page 1

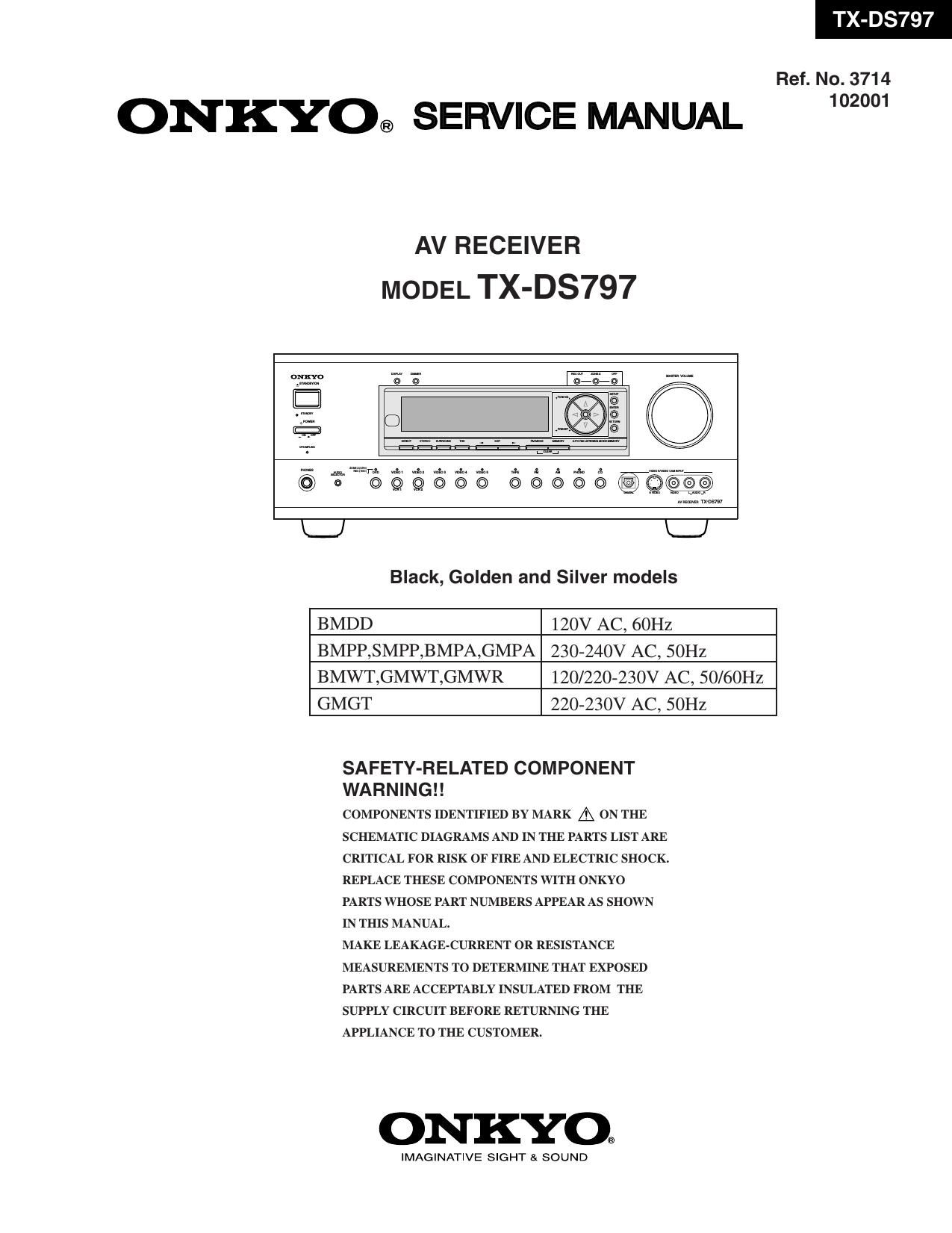

TX-DS797
Ref. No. 3714
ONKYO® SERVICE MANUAL 2"
AV RECEIVER
MODEL TX-DS797
Black, Golden and Silver models
BMDD 120V AC, 60Hz
BMPP,SMPP,BMPA,GMPA 230~240V AC, 50Hz
BMWT,GMWT,GMWR 120/220-230V AC, 50/60Hz
GMGT 220~230V AC, SOHZ
SAFETY-R ELATED COM PON ENT
WA R N I N G ! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT 0R RESISTANCE
MEASUREMENTS To DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYOG
IMAGINATIVE SIGHT & SOUND
