Onkyo TXDS 595 Service Manual

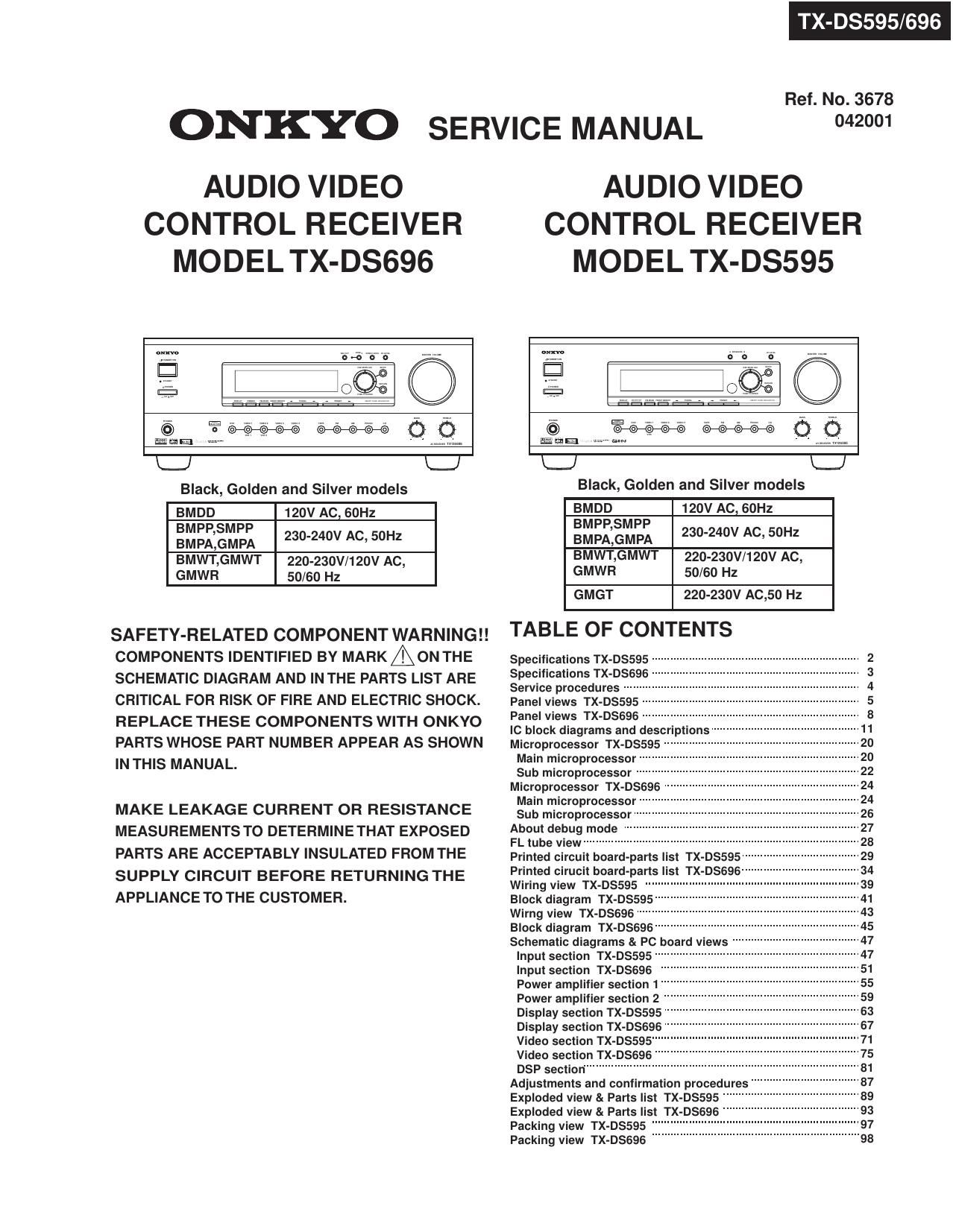

This is the 71 pages manual for Onkyo TXDS 595 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TXDS 595 Service Manual (Ocr-read)
Page 1
AMPLIFIER SECTION Continuous Average Power output (FTC) All channels: 75 W per channel min. RMS at 8 ohm , 2 channels driven from 20Hz to 20 kHz with no more than 0.08% total harmonic distortion. 100 W min. RMS at 6 ohm , 2 channels driven from 1 kHz with no more than 0.1% total harmonic distortion. Continuous Power output (DIN) 110 W at 6 ohm Maximum Power output (EIAJ) 140 W at 6 ohm Dynamic Power Output (Stereo) 2 210 W at 3 2 155 W at 4 2 90 W at 8 Total Harmonic Distortion: 0.08% at rated power 0.08% at 1 W output IM Distortion: 0.08% at rated power 0.08% at 1 W output Damping Factor: 60 at 8 Input Sensitivity and Impedance PHONO: 2.5 mV, 50 k LINE (CD, TAPE, DVD, VIDEO 1,2,3): 200 mV, 50 k MULTICHANNEL INPUT (FRONT L/C/R, SURROUND L/R): 200 mV, 50 k (SUBWOOFER): 36 mV, 50 k COAXIAL 1, 2 (DIGITAL): 0.5 Vp-p, 75 DVD, VIDEO1,2,3: 1 Vp-p, 75 1 Vp-p, 75 (Y) 0.28 Vp-p, 75 (C) Output Level and Impedance Rec out (TAPE, VIDEO 1): 200 mV, 2.2 k Pre out: 1 V, 470 ohm VIDEO (VIDEO 1, MONITOR OUT): 1 Vp-p, 75 ohm 1 Vp-p, 75 ohm (Y) 0.28 Vp-p, 75 (C) Phono Overload: 180 mV RMS at 1 kHz, 0.5% T.H.D. Frequency Response: 10 Hz to 100 kHz: +1 dB, - 3 dB RIAA Deviation: 20 Hz to 20 kHz : ±0.8 dB Tone Control Bass: ±10 dB at 50 Hz Treble: ±10 dB at 20 kHz Signal-to-Noise Ratio (Stereo) Phono: 80 dB (IHF A, 5 mV input) CD/Tape: 100 dB (IHF A, 0.5 V input) Muting: 50 dB TUNER SECTION FM Tuning Range: 87.5 to 108.0 MHz (50-kHz steps) Usable Sensitivity Mono: 11.2 dBf, 1.0 µV (75 ohm IHF) 0.9 µV (75 ohm DIN) Stereo: 17.2 dBf, 2.0 µV (75 ohm IHF) 23 µV (75 ohm DIN) 50 dB Quieting Sensitivity Mono: 17.2 dBf, 2.0 µV (75 ohm ) Stereo: 37.2 dBf, 20 µV (75 ohm ) Capture Ratio: 2.0 dB Image Rejection Ratio: USA & Canadian models: 40 dB Other area models: 85 dB IF Rejection Ratio: 90 dB Signal-to-Noise Ratio Mono: 76 dB Stereo: 70 dB Alternate Channel Attenuation: 55 dB Selectivity: 50 dB (DIN) AM Suppression Ratio: 50 dB Total Harmonic Distortion Mono: 0.2% Stereo: 0.3% Frequency Response: 30 Hz to 15 kHz, ±1.0 dB Stereo Separation: 45 dB at 1 kHz 30 dB at 100 Hz to 10 kHz AM Tuning Range USA & Canadian models: 530 to 1,710 kHz (10-kHz steps) European & Australian models : 522 to 1,611 kHz (9-kHz steps) Worldwide models: 531 to 1,602 kHz (9-kHz steps) 530 to 1,710 kHz (10-kHz steps) Usable Sensitivity: 30 µV Image Rejection Ratio: 40 dB IF Rejection Ratio: 40 dB Signal-to-Noise Ratio: 40 dB Total Harmonic Distortion: 0.7% GENERAL Power Supply: AC 120 V, 60 Hz (USA & Canadian models) AC 230-240 V, 50 Hz (European & Australian models) AC 220-230 and 120 V switchable, 50/60 Hz (Worldwide models) Power Consumption: 4.7 A 380 W Dimensions (W H D): 435 175 431 mm 17-1/8" 6-7/8" 16-15/16" Weight: 25.4 lbs. (USA & Canadian models) 12.5 kg (Other models) REMOTE CONTROLLER Transmitter: Infrared Signal range: Approx. 5 meters, 16 ft. Power supply: Two " AA " batteries (1.5 V 2) Specifications and features are subject to change without notice. Power supply and voltage vary depending on the area in which the unit is purchased. ohm ohm ohm ohm ohm ohm ohm ohm ohm ohm ohm ohm ohm ohm TX-DS595 SPECIFICATIONS
Page 2
AMPLIFIER SECTION Continuous Average Power output (FTC) All channels: 100 W per channel min. RMS at 8 ohm , 2 channels driven from 20Hz to 20 kHz with no more than 0.08% total harmonic distortion. 125 W min. RMS at 6 ohm , 2 channels driven from 1 kHz with no more than 0.1% total harmonic distortion. Continuous Power output (DIN) 130 W at 6 ohm Maximum Power output (EIAJ) 160 W at 6 ohm Dynamic Power Output (Stereo) 2 230 W at 3 2 170 W at 4 2 115 W at 8 Total Harmonic Distortion: 0.08% at rated power 0.08% at 1 W output IM Distortion: 0.08% at rated power 0.08% at 1 W output Damping Factor: 60 at 8 Input Sensitivity and Impedance PHONO: 2.5 mV, 50 k LINE (CD, TAPE, DVD, VIDEO 1-4): 200 mV, 50 k MULTICHANNEL INPUT (FRONT L/C/R, SURROUND L/R): 200 mV, 50 k (SUBWOOFER): 36 mV, 50 k COAXIAL 1, 2 (DIGITAL): 0.5 Vp-p, 75 DVD, VIDEO1-4: 1 Vp-p, 75 1 Vp-p, 75 (Y) 0.28 Vp-p, 75 (C) COMPONENT VIDEO 1, 2: 1 Vp-p, 75 (Y) 0.7 Vp-p, 75 (C B/CR, PB/PR) Output Level and Impedance Rec out (TAPE, VIDEO 1, 2): 200 mV, 2.2 k Pre out: 1 V, 470 ohm VIDEO (VIDEO 1, 2, MONITOR OUT): 1 Vp-p, 75 ohm 1 Vp-p, 75 ohm (Y) 0.28 Vp-p, 75 (C) COMPONENT VIDEO OUT: 1 Vp-p, 75 ohm (Y) 0.7 Vp-p, 75 ohm (C B/CR, PB/PR) Phono Overload: 110 mV RMS at 1 kHz, 0.5% T.H.D. Frequency Response: 5 Hz to 100 kHz: +1 dB, - 3 dB RIAA Deviation: 20 Hz to 20 kHz : ±0.8 dB Tone Control Bass: ±10 dB at 50 Hz Treble: ±10 dB at 20 kHz Signal-to-Noise Ratio (Stereo) Phono: 80 dB (IHF A, 5 mV input) CD/Tape: 100 dB (IHF A, 0.5 V input) Muting: 50 dB TUNER SECTION FM Tuning Range: 87.5 to 108.0 MHz (50-kHz steps) Usable Sensitivity Mono: 11.2 dBf, 1.0 µV (75 ohm IHF) 0.9 µV (75 ohm DIN) Stereo: 17.2 dBf, 2.0 µV (75 ohm IHF) 23 µV (75 ohm DIN) 50 dB Quieting Sensitivity Mono: 17.2 dBf, 2.0 µV (75 ohm ) Stereo: 37.2 dBf, 20 µV (75 ohm ) Capture Ratio: 2.0 dB Image Rejection Ratio: USA & Canadian models: 40 dB Other area models: 85 dB IF Rejection Ratio: 90 dB Signal-to-Noise Ratio Mono: 76 dB Stereo: 70 dB Alternate Channel Attenuation: 55 dB Selectivity: 50 dB (DIN) AM Suppression Ratio: 50 dB Total Harmonic Distortion Mono: 0.2% Stereo: 0.3% Frequency Response: 30 Hz to 15 kHz, ±1.0 dB Stereo Separation: 45 dB at 1 kHz 30 dB at 100 Hz to 10 kHz AM Tuning Range USA & Canadian models: 530 to 1,710 kHz (10-kHz steps) European & Australian models : 522 to 1,611 kHz (9-kHz steps) Worldwide models: 531 to 1,602 kHz (9-kHz steps) 530 to 1,710 kHz (10-kHz steps) Usable Sensitivity: 30 µV Image Rejection Ratio: 40 dB IF Rejection Ratio: 40 dB Signal-to-Noise Ratio: 40 dB Total Harmonic Distortion: 0.7% GENERAL Power Supply: AC 120 V, 60 Hz (USA & Canadian models) AC 230-240 V, 50 Hz (European & Australian models) AC 220-230 and 120 V switchable, 50/60 Hz (Worldwide models) Power Consumption: 5.7 A 460 W Dimensions (W H D): 435 175 431 mm 17-1/8" 6-7/8" 16-15/16" Weight: 27.8 lbs. (USA & Canadian models) 13.5 kg (Other models) REMOTE CONTROLLER Transmitter: Infrared Signal range: Approx. 5 meters, 16 ft. Power supply: Two " AA " batteries (1.5 V 2) Specifications and features are subject to change without notice. Power supply and voltage vary depending on the area in which the unit is purchased. ohm ohm ohm ohm ohm ohm ohm ohm ohm ohm ohm ohm ohm ohm ohm ohm TX-DS696 SPECIFICATIONS
