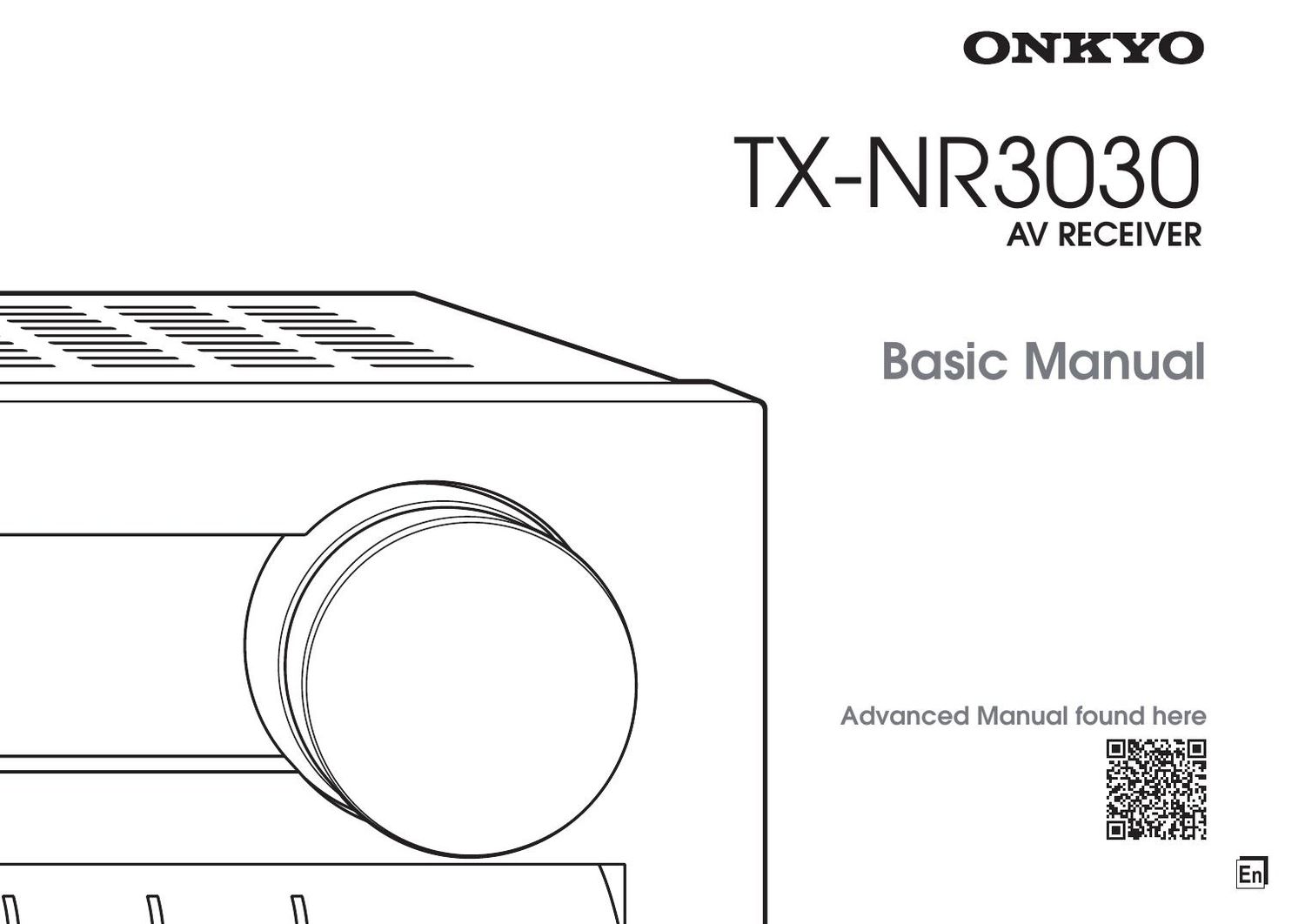

Onkyo TX NR 3030 Owners Manual
This is the 24 pages manual for Onkyo TX NR 3030 Owners Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TX NR 3030 Owners Manual (Ocr-read)
Page 1
Before Start 2 About the Basic Manual The Basic Manual leads you through the fundamental steps to enjoy the AV Receiver from connections to TV, speaker system and playback components, to necessary functions for playback. As well as that, Basic Manual informs you with the instructions on frequently used functions. Besides, there is another part of the manual called Advanced Manual to inform you with more detailed information, which we have decided to publish on the web from the ecological point of view. Advanced Manual Advanced Manual is always updated with the latest information and its user friendly interface, which does not matter whether you access from PC or Smartphone, helps you to understand more deeply about the AV Receiver. Advanced Manual is consisted of the following chapters. r Details on AM/FM Playback r Playing Music Files on a USB Storage Device r Listening to Internet Radio r Playing Music with DLNA r Playing Music Files in a Shared Folder r Operating Music Files with the Remote Controller r Listening Mode r Advanced Settings r Operating Other Components with the Remote Controller r Advanced Connection r Connecting and Operating Onkyo RI Components r Control Function between the Unit and External Component r Firmware Update r Troubleshooting r Reference Information Advanced Manual found here http://www.onkyo.com/manual/txnr3030/adv/en.html Features rEquipped with 11 channel amplifier r Supports playback in Dolby Atmos format which provides 360-degree placement and movement of sounds including overhead sound r Dolby Surround listening mode expands 2 ch, 5.1 ch or 7.1 ch source to available speaker configurations r THX Select2 Plus certified r Incorporates Qdeo™ technology for HDMI video upscaling r All HDMI jacks support displays of 4K resolution at 60 Hz r Supports the HDMI Through function which allows transmission from playback devices to the TV in standby state r Supports HDCP2.2, a strict copy-protection for providing high quality content (HDMI IN3/OUT MAIN only) r Supports ARC (Audio Return Channel) r Supports USB storage playback r Supports variety of network functions such as Internet Radio, DLNA, etc. r Supports Wi-Fi, Bluetooth and MHL-enabled mobile device r Bi-Amping capability r A/V Sync function to correct deviation of audio and video r Multi-zone function which allows you to play a different source in another room from the main room (Video can also be played in Zone 2) r 32 bit DSP (Digital Signal Processor) with excellent calculation performance r Music Optimizer™ for Compressed Digital Music files r Phase Matching Bass System r Automatic speaker setup available using supplied calibrated microphone (AccuEQ Room Calibration) r Supports playback of MP3, FLAC, WAV, Ogg Vorbis, Apple Lossless, DSD via network and USB storage device (the supported formats will differ depending on the use environment) r ISF (Imaging Science Foundation) Video Calibration Supplied Accessories Indoor FM antenna (1) AM loop antenna (1) Color labels for speaker cable (1) Remote controller (RC 884M) (1) Batteries (AA/R6) (2) Power cord (1) Speaker setup microphone (1) ¼ The n umber in parenthesis indicates the quantity. On packaging, the letter at the end of the product name indicates the color. How to use the remote controller Batteries (AA/R6) Remote control sensor About H V O AV Receiver ¼ If you do not use the remote controller for a long time, remove the batteries to prevent leakage. ¼ Note that keeping consumed batteries inside may cause corrosion resulting in damage of the remote controller.
Page 2
Step 1: Connections 3 1 Connecting the TV and players Important: The power cord must be connected only after all other connections are completed. HDMI Cable Connection The unit has many HDMI jacks on its rear panel and each of them corresponds to an input selector button of the same name on the front panel. For example, a Blu-ray Disc player will be connected to the IN 1 jack and the BD/DVD button on the front panel will be used to listen to the playback sound (if the player is CEC compliant, input will be switched automatically). If you add another Blu-ray Disc player, you can use any other jack than IN 1. It is possible to change assignment of the input jacks and input selector buttons. For how to make settings, see the Advanced Manual. To connect the TV and the unit, connect the HDMI OUT MAIN jack of the unit and the HDMI IN jack of the TV using an HDMI cable. With this connection, it becomes possible to display the setting screen of the unit on the TV or transmit video/ audio signals from the player to the TV. If your TV supports ARC (Audio Return Channel), it is possible to play the TV sound with the AV receiver's speakers with this connection only. If your TV does not support ARC, you need, in addition to the HDMI OUT MAIN jack connection, a digital optical cable connection between the digital audio out optical jack of the TV and the DIGITAL IN OPTICAL jack of the unit or an analog audio (RCA) cable connection between the audio output jack of the TV and the TV/CD analog audio input jack of the unit. DIGITAL OPTICAL OUT AUDIO OUT TV z Audio connection with a TV not supporting ARC ¼Select an appropriate connection for your TV. Another TV can be connected to the HDMI OUT SUB jack. In this case, press MONITOR OUT on the main unit several times to display "SUB" or "MAIN+SUB" and select the output method. You can also enjoy using Zone function with the HDMI OUT ZONE 2 jack. For details, see the section 6 "Using the multi-zone function" of "Step 3: Playing Back". To use the ARC function, connect to the ARC compatible HDMI jack of the TV and make an appropriate setting on the unit. See "2nd Step : Source Connection" of "Step 2: Setting Up". HDMI OUT HDMIOUT HDMI OUT HDMIOUT HDMIOUT HDM I IN Personal computer HDMI cable Blu-ray Disc/DVD playerTV Set-top box/Digital video recorder, etc. Satellite/Cable set-top box, etc. Game console
