Onkyo TX 890 Owners Manual

Extracted text from Onkyo TX 890 Owners Manual (Ocr-read)

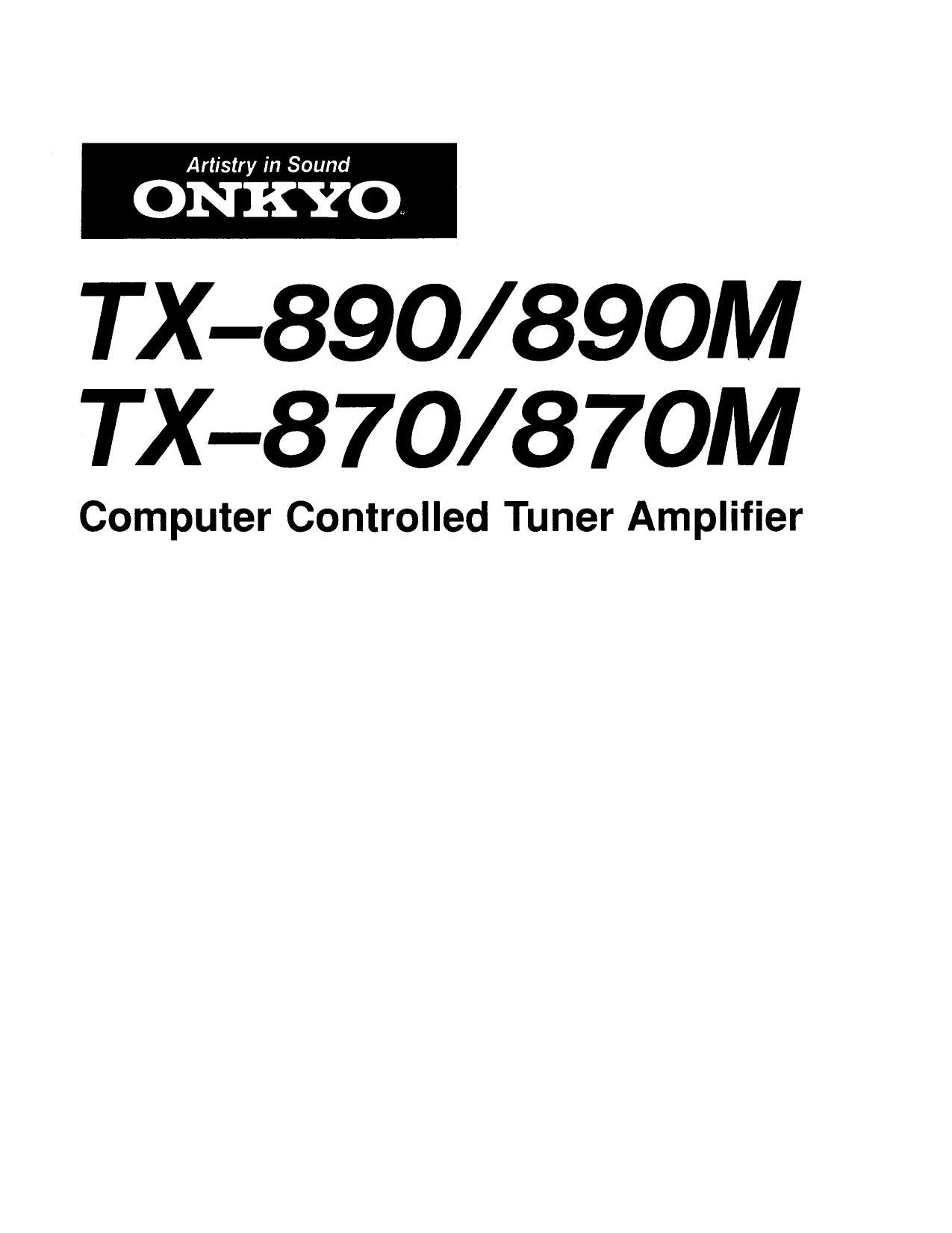

Page 1

TX -890/ 890M
TX -8 70/ 8 70M

Computer Controlled Tuner Amplifier

Page 2

0 Congratulations on your purchase of the ONKYO TX -890/890M, TX -870/870M Tun-
er-Amplifier. 0 Please read this manual thoroughly before making connections and turning
power on. 0 Following the instructions in this manual will enable you to obtain optimum
performance and listening enjoyment from your new TX #890/890M, TX -870l870M. 0 Please

retain this manual for future reference.

CONTENTS


Features . 1
Important safeguards. 2
Precautions... 2
System connections 3
Front panel facilities 7
Operations 10
Troubleshooting gmde.. 14
Specifications ..... 1 5
Features

0 Plenty of Clean Power

Tx-seo: 125 watts oi continuous power per channel into 8 ohms with no more than 0.02% total harmonic distortion (FTC).

(2 x 380 watts dynamic power at 2 ohms.)

TXA87O: 105 watts of continuous power per channel into 8 ohms with no more than 0.025% total harmonic distortion (FTC).

(2 x 310 watts dynamic power at 2 ohms.)

These tuner amplifiers are designed to consistently deliver their lull rated power even into low impedance loads.

0 Discrete Output Stage

Instead of IC power amplifier circuitry. the TX-890 and TX-870 both employ a discrete output stage for effortless drive into low impedance
loads. Low distortion linear switching and the high quality parts used throughout are further proof of Onkyo's dedication to audio ex-

cellence not only in our high end amps but across the board.
0 "CD Direct" Switch

This switch lets you bypass the tone and balance controls when listening to CD players (or other audio sources). Since noise levels in
digital audio components are extremely low, tone and balance circuitry or excessive switches are often on necessary and may even adversely

aflect the sound.
0 APR (Automatic Precision Reception) System

Onkyos exclusive APR system lets every FM broadcast sound its best. A microelectronic brain monitors the broadcast signal and selects
the optimum settings for tour reception modes: stereo/mono, hl~blend on/off, local/DX and noise reduction on/ofl. The APR system

settings are shown by indicators on the front panel.

O 20-Stetion FM/AM Random Memory with Battery- Free Backup
0 Full Logic Selector Buttons for Seven Input Sources (Including Two Video Inputs) and Video Dubbing Capabilities
0 Dynamic Bass Expander (TX-890)
0 Selective Tone Control and Simulated Stereo
0 Remote Controlled Motor Driven Volume Control
0 FM Antenna A/B Switchable (Broadcast and Cable) (TX-830)
0 Pro out/Main in Jacks
O RC-AVZOM Programmable universal Remote Control Included (TX-890M. TX-870M)
CAUTION WARNING"

TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL."

@-

RlSK OF ELECTRIC SHOCK
DO NOT OPEN

0 The lightning flash with arrowhead symbol. within
an equilateral triangle, is intended to alert the user
to the presence of uninsulated dangerous voltage
within the product's enclosure that may be ol suffi-
cient magnitude to constitute a risk of electric shock
to persons.

0 The exclamation point within an equilateral triangle
is intended to alert the user to the presence of im~
portant operating and maintenance (servicing) in-
structicns in the literature accompanying the appli-
ance.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT
EXPOSE THIS APPLIANCE TO RAIN 0R MOISTURE.

0 For models having power cards with a polarized plug.
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT use
THIS (POLARIZED) PLUG WITH AN EXTENSION CORD, FIE-
CEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE

FULLY INSERTED TO PREVENT BLADE EXPOSURE.

O Sur les modéles dont la fiche est polariséa.

ATTENTION: POUR PREVENIR LES CHOCS ELECTRIOUES
NE PAS unussn CETTE FICHE POLARISEE AVEC UN PRO-
LONGATEUR. UNE PRISE DE COURANT ou UNE AUTRE some
or; COURANT, SAUF sr LES LAMES PEUVENT Erna INSEREES
A FOND SANS EN LAISSER AUCUNE PARTIE A nEcouvaar.
