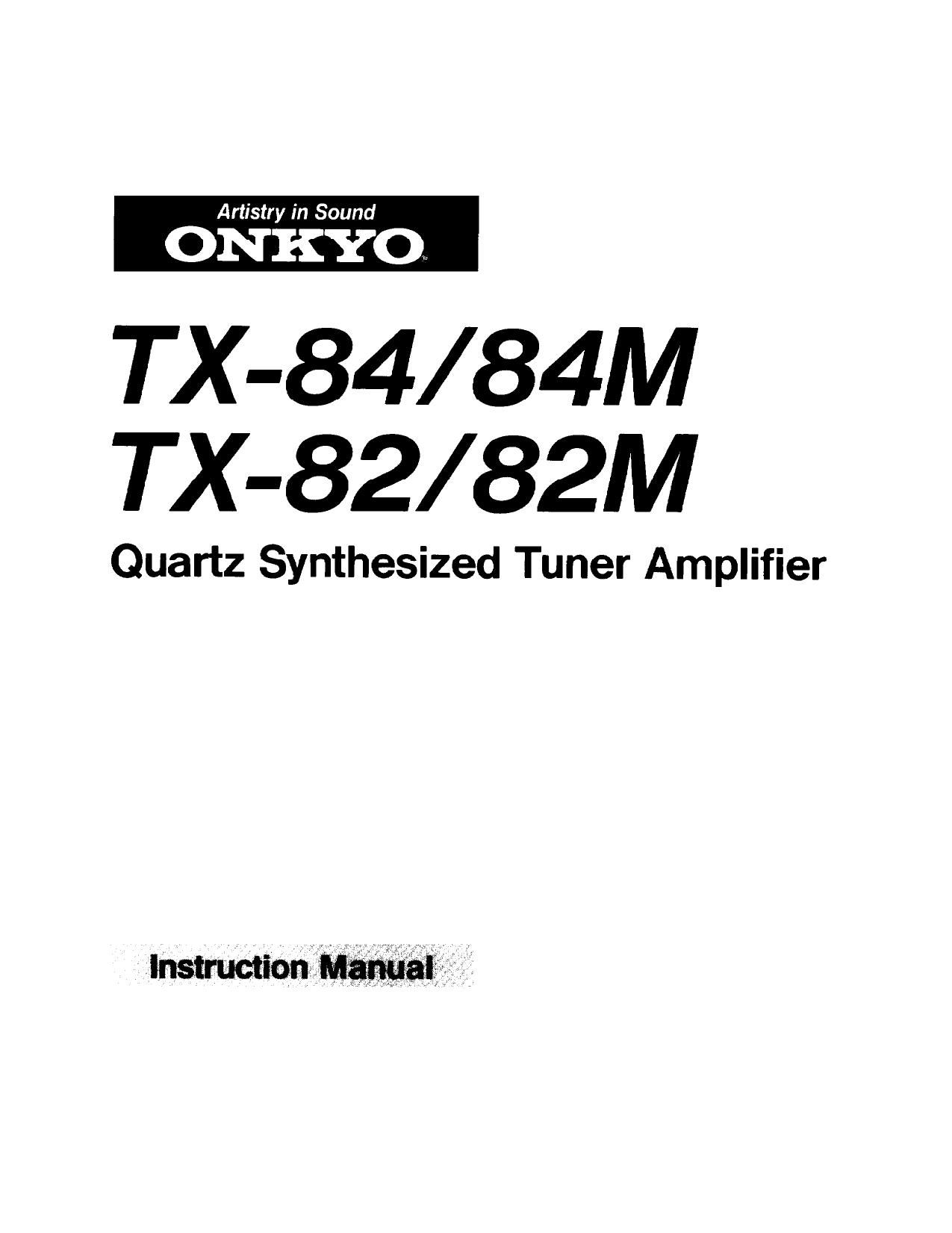

Onkyo TX 84 M Owners Manual

Page 2

0 Thank you lorpurchaslng the ONKYO TX-84/84M, TX -82/82M Miter-Amplifier. I Please
read this manual thoroughly before connecting up your new tuner-amplifier, and turning it

on, 0 Following the Instructions in this manual will enable you to obtain the utmost listening
enjoyment from your new TX -84/84M, TX 782/82M. 0 Please keep the manual for later re»

lerence.

FEATURES.
IMPORTANT SAFEGUARDS

SYSTEM CONNECTIONS...
FRONT PANEL FACILITIES

TROUBLESHOOTING GUIDE
SPECIFICATIONS

CON TEN TS

PRECAUTIONS .......................................................

OPERATIONS .....................................................................

.a
WNWHNNN-l

-l

FEATURES
-

0 7 input terminals (even video inputs)

You can connect your TX-84l82 to various audio or video equipment, including a compact disc player.

I Discrete Output Stage

The Discrete Output Stage ensures "clean" drive into a low impedance load, and a minimum distortion sound output is rendered by the
linear swnching Cll'CLlII, The Onkyo design philosophy for high quality amplifiers is incorporated in the TX784/82 through the careful

selection of high quality parts.
O The Heart of your AV System

You can connect two Video tape decks, to duplicate Video or audio tapes. The sound quality of monaural VTR signals can be enhanced
and improved by the simulated stereo function The selective tone control has its own volume adiustment, putting extra convenience
under your control. The TX7845 dynamic bass expander (DEE) and its stereo image expander (SlE) give you the feeling of a live

performance.
0 Wireless Remote Control included

The inlrared wireless remote control unit enables, from a distance, operations such as volume adjustment, power ON/OFF, input selection,
tuner preset station UP/DOWN, and audio muting. It can also work With some ONKYO cassette tapedecks and CD players (also turntables

with TX»84).

tr The TX-84M and TX782M are supplied with a universal remote control, RCVAV1M, which prowdes many convenient functions

0 Receiving section

it The TX»84/82 is equipped With Onkyo's unique APR System that automatically controls the RF sensitivity (BX/local), auto hisblend.
mode function (auto/mono) and noise reduction (on/off, TX-84) according to the signal quality. Consequently, optimum reception

is assured at all times.

* The memory preset stores all of your 16 lavorite random AM/FM stations for the expanSion oI the number of broadcasts

0 Easy, versatile operation

* The most frequently used controls are featherrtouch sensitive to avoid Signal intelerence
it All your Iavorite stations are retained in memory for a few weeks after the unit has been disconnected,

You can use two pairs of speakers at the same time.

0 The baSic features of this tuner amplifier were designed to provide a true to life" impiesslon in your home. (T he TX784/82 gives you

solid quality from top to bottom")

CAUTION

"TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL "

@-

RISK OF ELECTRIC SHOCK
DO NOT OPEN

o The lightning Ilash with arrowhead symbol, wriiiin
an equilateral triangle, IS Intended to alert the user
in the presence of uninsulaied dangerous voltage
Within inc product's enclosure that may be oI stirri-
cierii magnitude to consiituie a risk ol electric shock
to persons

0 The exclamation point wrthiri an equilateral triangle
IS intended to alert the user to the presence of TIE
portant operating and maintenance (servicing) ll'l-
stiticiions in the literature accompanying the appllr
ance

"WARNING"
"TO REDUCE THE RISK OF FIRE 0R ELECTRlC SHOCK, DO NOT
EXPOSE THlS APPLlANCE TO RAIN OR MOISTURE."

O For models havrng power cords With a polarized plug.

CAUTION: TO PREVENT ELECTRIC SHOCK

DO NOT USE THIS (POLARlZED) PLUG WITH AN EXTENSION
CORD. RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.

l Sur les modeles dont la fiche est polarise'e.

ATTENTION: POUR PREVENIR LESCHOCSELECTRIOUES
NE PAS UTILlSER CETTE FICHE POLARISEE AVEc UN PROV
LONGATEUR. UNE PRISE DE COURANT OU UNEAUTRE SORTIE
DE COURANT, SAUF SI LES LAMEs PEUVENT ETRE iNsEREEs
A FOND SANS EN LAISSER AUCUNE PARTIE A DECOUVERT.

0 The serial number is written on the rear panel or this unit Copy ihe
serial number and model number onto your warranty card and keep it
in a sale place
