Onkyo TX 800 Service Manual

This is the 20 pages manual for Onkyo TX 800 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.

Page: 1 / 20
Onkyo TX 800 Service Manual

Extracted text from Onkyo TX 800 Service Manual (Ocr-read)

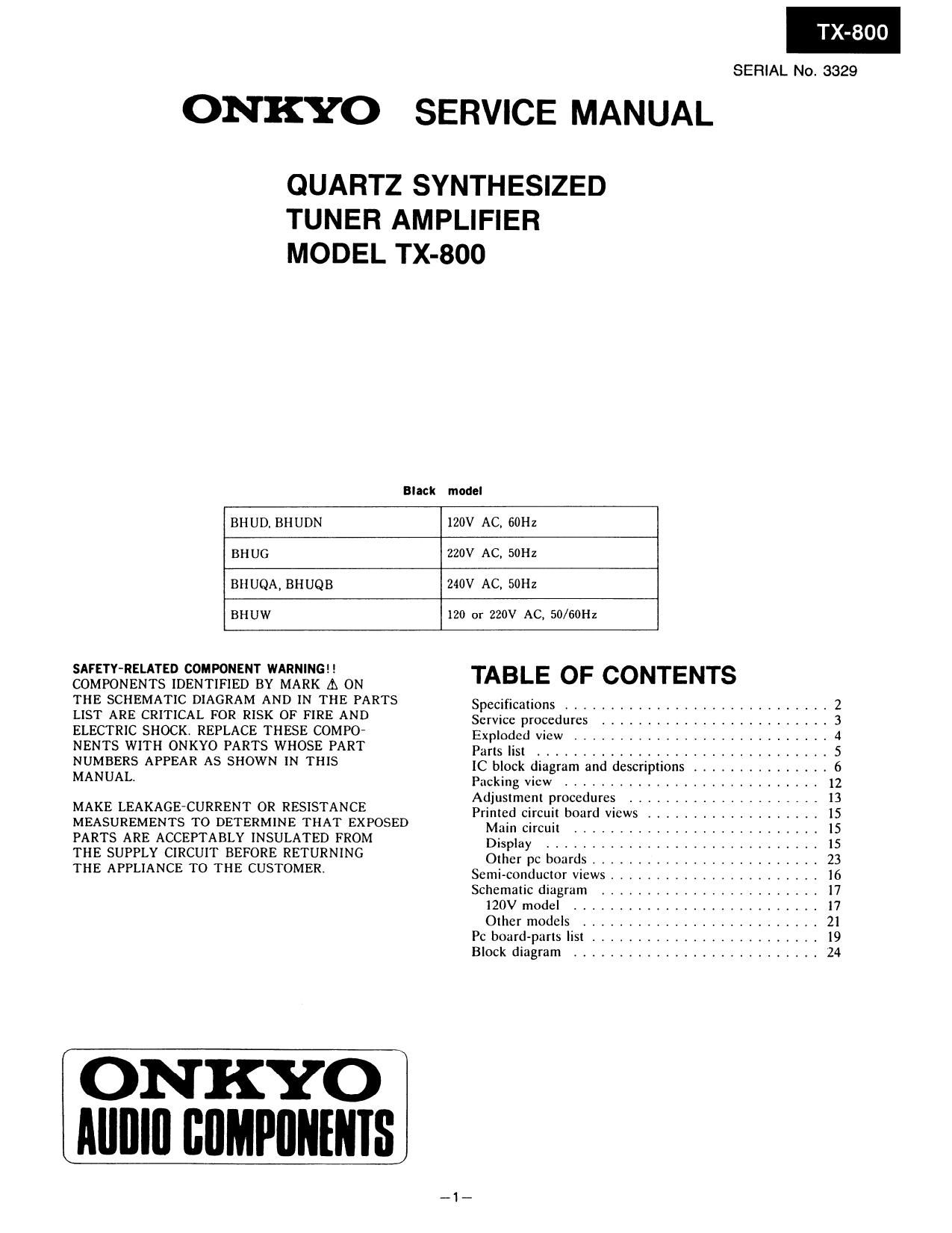

Page 1

TX-800

SERIAL No 3329

ONKYO SERVICE MANUAL

QUARTZ SYNTHESIZED
TUNER AMPLIFIER
MODEL TX-800

Black model

BHUD. BIIUDN 120V AC. 60Hz

BHUG 220V AC, 50Hz

BIIUQA, BHUQB 240v AC, 5on

BIIUW 120 or 220V AC, 50/60Hz

SAFETY-RELATED COMPONENT WARNING! !

COMPONENTS IDENTIFIED BY MARK A ON

TABLE OF CONTENTS

THE SCHEMATIC DIAGRAM AND IN THE PARTS Specifications ............................ 2
LIST ARE CRITICAL FOR RISK OF FIRE AND Service procedures ......................... 3
ELECTRIC SHOCK. REPLACE THESE COMPO- Exploded View _________________________ 4
NENTS WITH ONKYO PARTS WHOSE PART Parts list ____________________________ 5
NUMBERS APPEAR AS SHOWN IN THIS IC bIock diagram and descriptions ............... 6
MANUAL Packing vicw ............................ 12
Adjustment procedures ..................... 13

MAKE LEAKAGE-CURRENT OR RESISTANCE Printed circuit board views ................... 15
MEASUREMENTS TO DETERMINE THAT EXPOSED Main Circuit ________________________ 15
PARTS ARE ACCEPTABLY INSULATED FROM Display ____________________________ 15
THE SUPPLY CIRCUIT BEFORE RETURNING Other pc boards IIIIIIIIIIIIIIIIIIIIII 23
THE APPLIANCE TO THE CUSTOMER Semi-conductor vicws ....................... 16
Schematic diagram ........................ l7

120V model ........................... 17

Other models .......................... 21

PC b0urd

Block diagram ........................... 24

ON KYO
IIIIIIII BIIMPIIIIIIIIS
