Onkyo TX 670 Service Manual

Extracted text from Onkyo TX 670 Service Manual (Ocr-read)

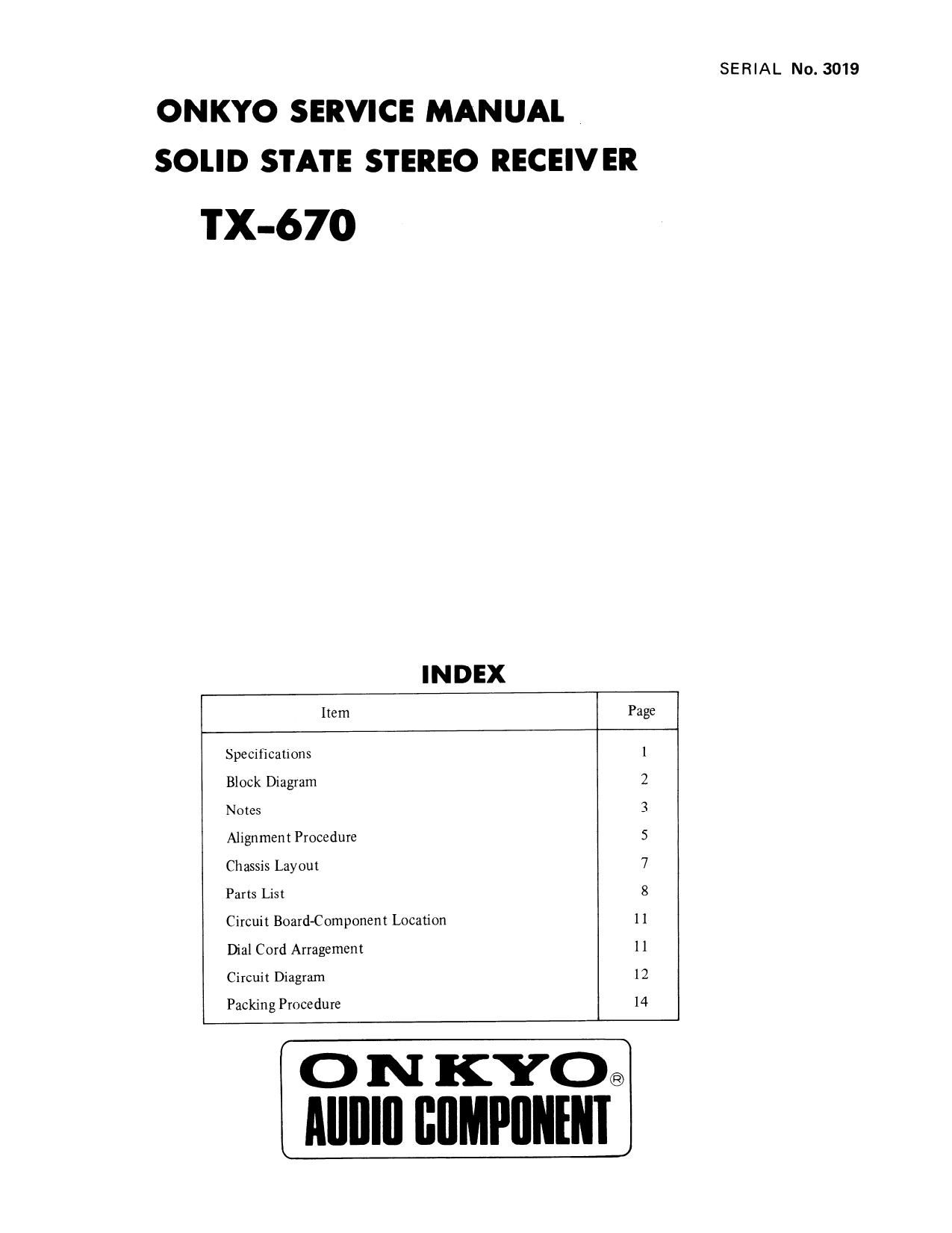

Page 1

ON KYO SERVICE MANUAL

SOLID STATE STEREO RECEIVER

TX-670

IN DEX
Item Page
Specifications 1
Block Diagram 2
Notes 3
Alignment Procedure 5
Chassis Layout 7
Parts List 8
Circuit Board-Component Location 11
Dial Cord Arragemem 11
Circuit Diagram 12
Packing Procedure 14

o N KYO®
Alllllll BIIMPIIIIIIII

SERIAL No. 3019
