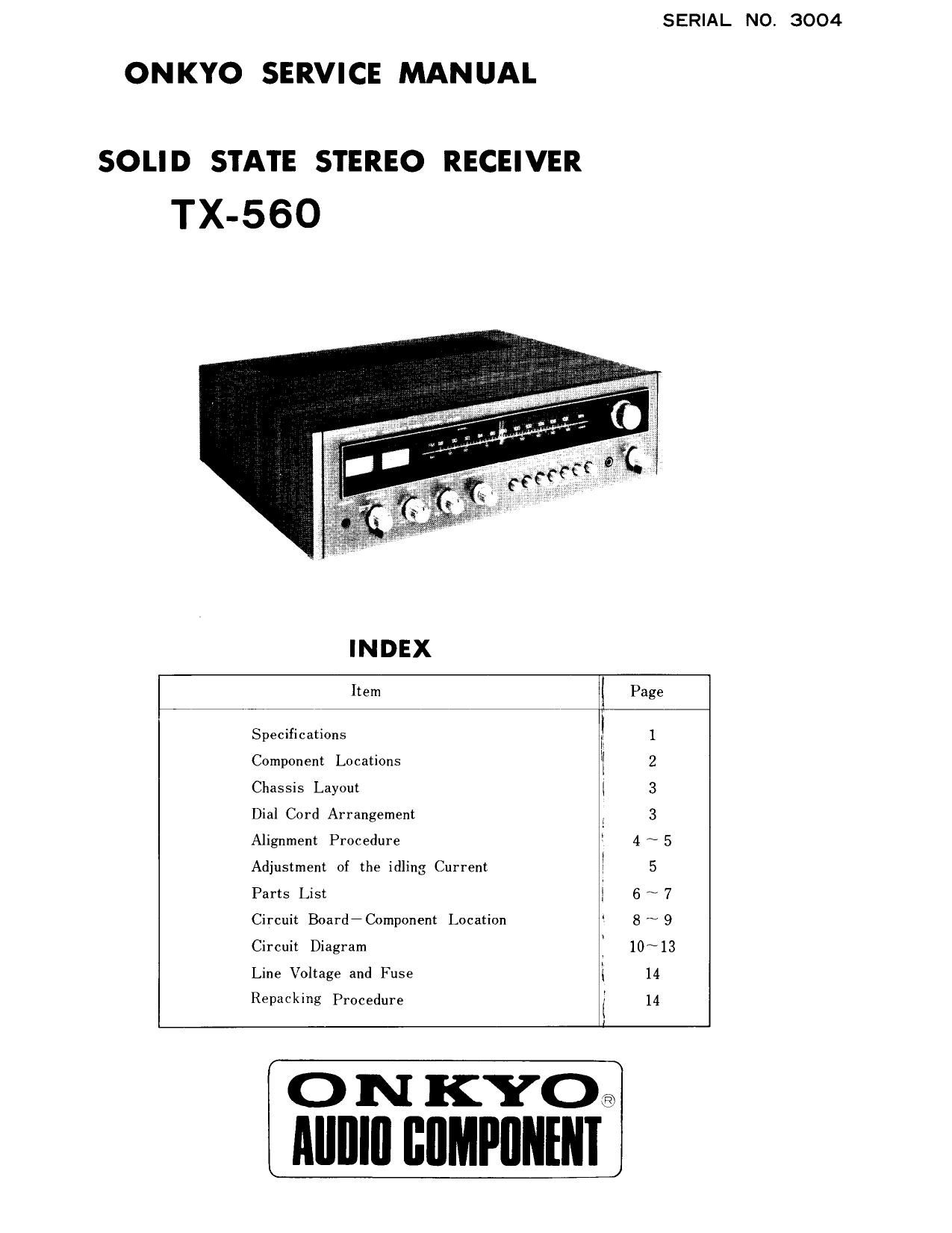

Page 1
ON KYO SERVICE MANUAL
SOLID STATE STEREO RECEIVER
TX-560
SERIAL N0. 3004
INDEX
Item I Page
Specifications I 1
Component Locations ll 2
Chassis Layout . 3
Dial Cord Arrangement 1 3
Alignment Procedure ' 4 5
Adjustment of the idling Current I 5
Parts List l 6 N 7
Circuit Board-Component Location 8 V 9
Circuit Diagram : 10~13
Line Voltage and Fuse l 14
Repacking Procedure ( 14
:
AIIIIIII lilIMPllNIIII
