Onkyo TX 37 Service Manual
This is the 29 pages manual for Onkyo TX 37 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TX 37 Service Manual (Ocr-read)
Page 1

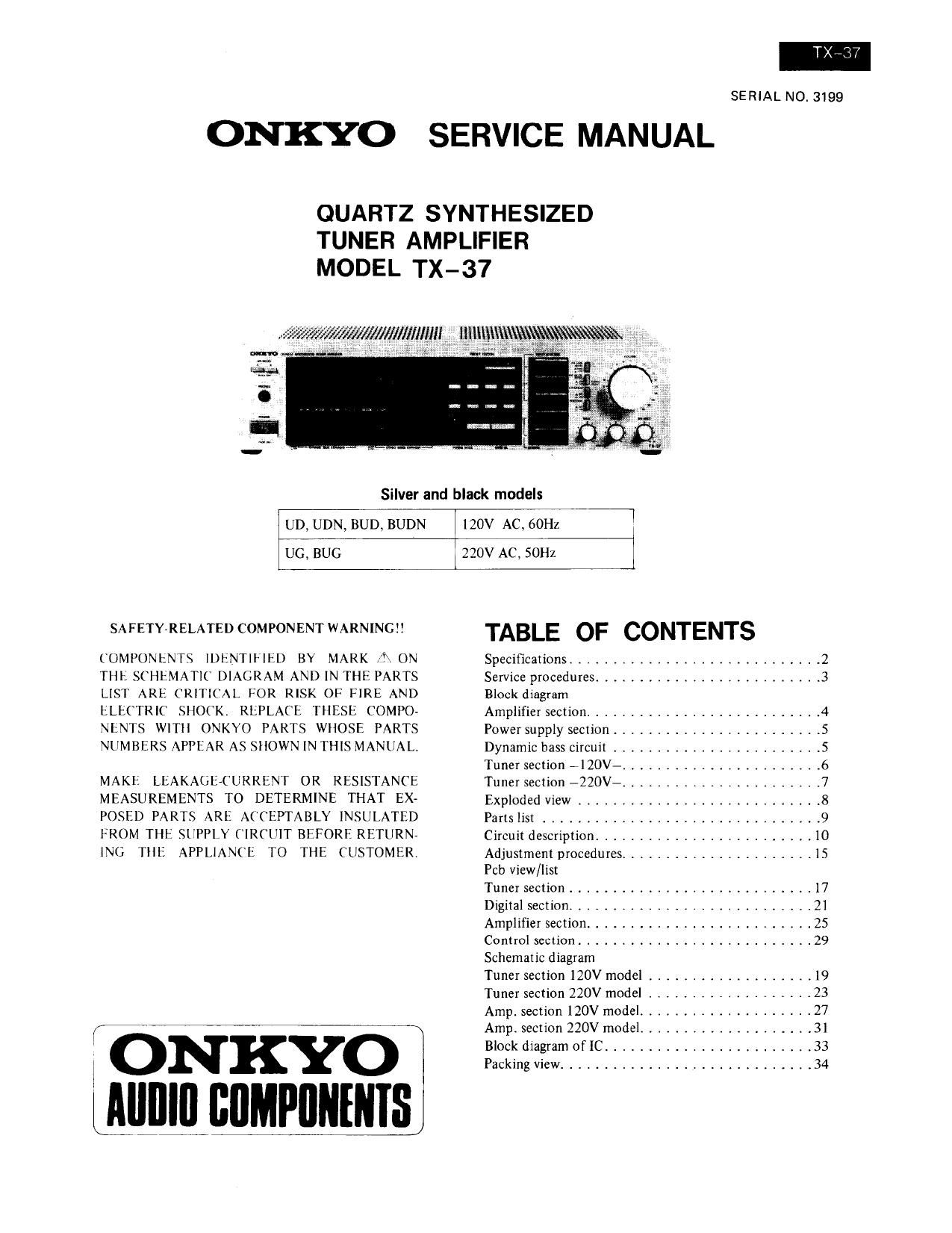

SERIAL NO. 3199
ONKYO SERVICE MANUAL
QUARTZ SYNTHESIZED
TUNER AMPLIFIER
MODEL TX-37
.. fnymwmmmu mutt gm
, w tit
Silver and black models
UD, UDN, BUD. BUDN l20V AC, 60Hz
UG, BUG 220V AC, 50Hz
SAFETY-RELATED COMPONENT WARNING TABLE OF CONTENTS
COMPONENTS IDENTIFIED BY MARK ,1. ON Specifications ............................. 2
THE SCHEMATIC DIAGRAM AND IN THE PARTS Service procedures ......................... 3
LIST ARE CRITICAL FOR RISK OF FIRE AND Block diagram
ELECTRIC SHOCK. REPLACE THESE (OMPO- Amplifier section ........................... 4
NLNTS WITH ONKYO PARTS WHOSE PARTS Power supply section ........................ 5
NUMBERS APPEAR AS SHOWN IN THIS MANUAL. Dynamic bass circuit ................... 5
Tuner section vl20V- .................. 6
MAKI: LEAKAGE-CURRENT OR RESISTANCE Tuner section -220V- .................. 7
MEASUREMENTS TO DETERMINE THAT EX- Exploded view ............................ 8
POSED PARTS ARE AICEPTABLY INSULATED Parts list ................................ 9
FROM THE SUPPLY CIRCUIT BEFORE RETURN Circuit description .................... 10
INC THE APPLIANCE TO THE CUSTOMER. Adjustment procedures ...................... 15
Pcb view/list
Tuner section ............................ 17
Digital section ............................ 2i
Amplifier section .......................... 25
Control section ........................... 29
Schematic diagram
Tuner section 120V model ................... l9
Tuner section 220V model ................. 23
Amp. section 120V model .................. 27
Amp. section 220V model ............... 31
Block diagram of 1C ........................ 33
Packing View ............................. 34
