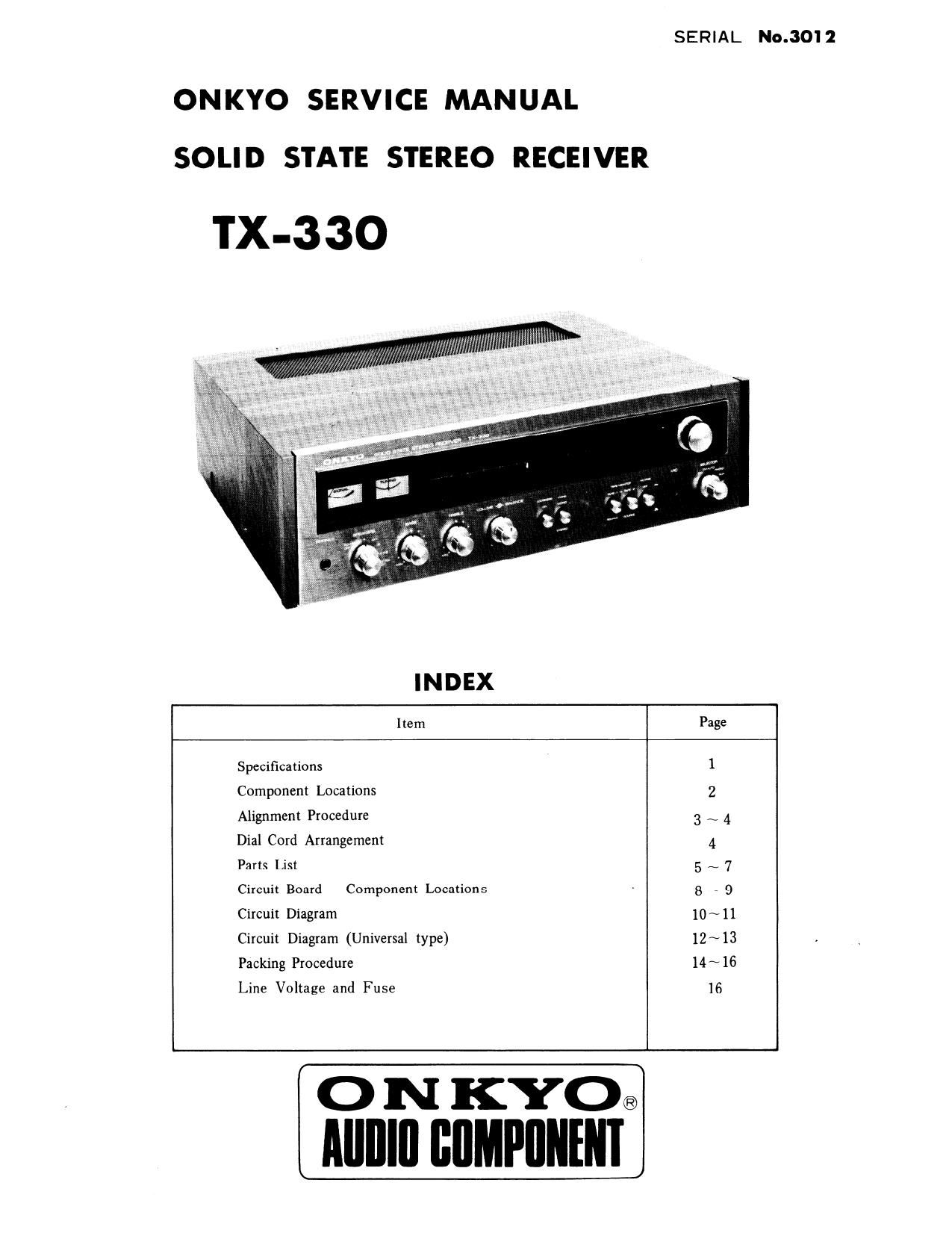

Page 1
SERIAL No.30'l2
ON KYO SERVICE MANUAL
SOLID STATE STEREO RECEIVER
TX-33O
INDEX
Item Page
Specifications 1
Component Locations 2
Alignment Procedure 3 N 4
Dial Cord Arrangement 4
Parts List 5 ~ 7
Circuit Board 7 Component Locations - 8 W 9
Circuit Diagram 10~11
Circuit Diagram (Universal type) 12~l3
Packing Procedure MN 16
Line Voltage and Fuse 16
o N KYO®
Alllllll BIIMPIINENI
