Onkyo TX 30 Service Manual
This is the 19 pages manual for Onkyo TX 30 Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo TX 30 Service Manual (Ocr-read)
Page 1
SERIAL NO. 3096

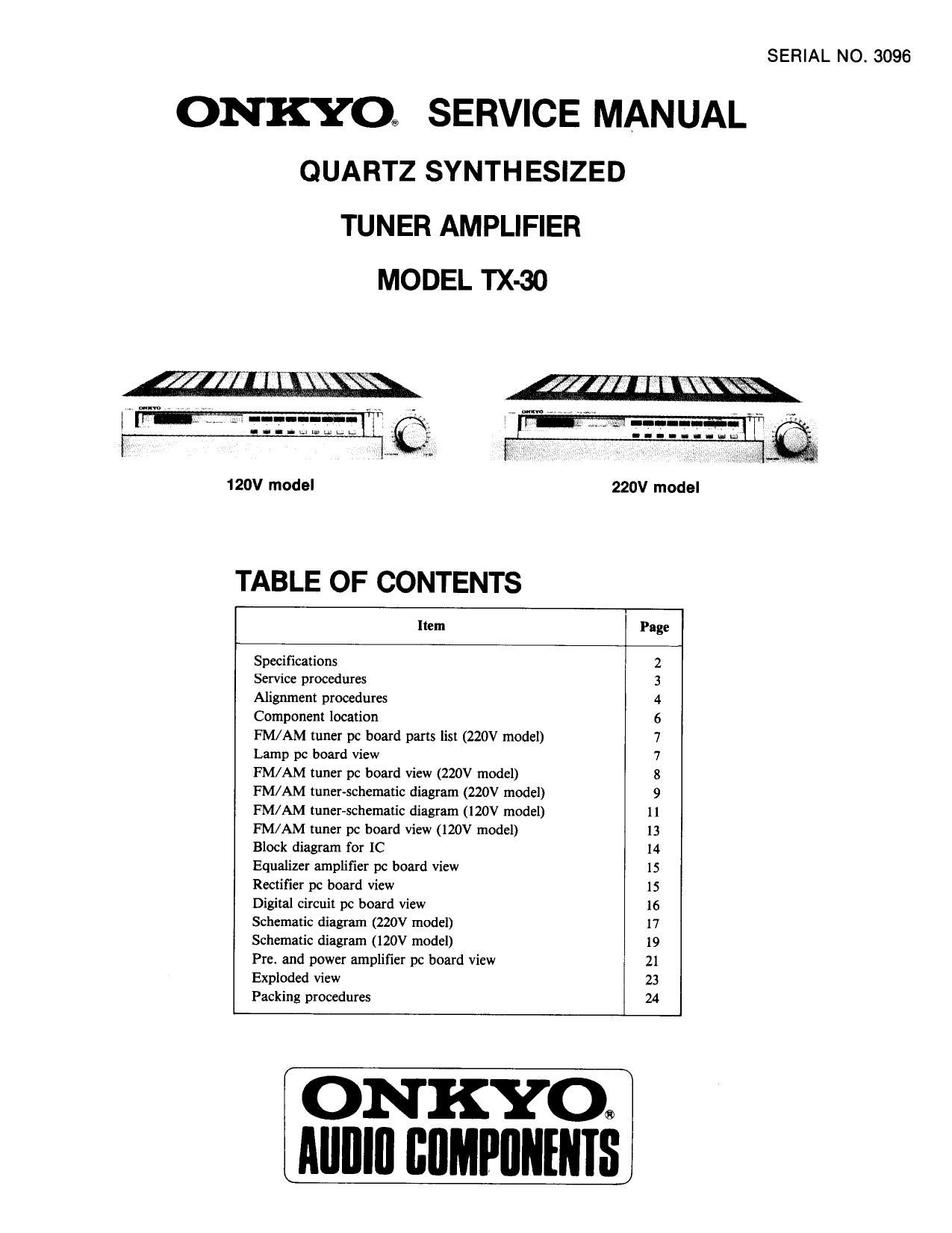

ONKYOQ SERVICE MANUAL
QUARTZ SYNTHESIZED
TUNER AMPLIFIER
MODEL TX-30
120V model 220V modal
TABLE OF CONTENTS
Item Page
Specifications 2
Service procedures 3
Alignment procedures 4
Component location 6
FM/AM tuner pc board parts list (220V model) 7
Lamp pc board view 7
FM/AM tuner pc board View (220V model) 8
FM/AM tuner-schematic diagram (220V model) 9
FM/ AM tuner-schematic diagram (120V model) 11
FM/AM tuner pc board View (120V model) 13
Block diagram for IC 14
Equalizer amplifier pc board View 15
Rectifier pc board view 15
Digital circuit pc board View 16
Schematic diagram (220V model) 17
Schematic diagram (120V model) 19
Pre. and power amplifier pc board view 21
Exploded View 23
Packing procedures 24
ONKYOE
lllllllll flllMPllllllllS
Page 19
PACKING PROCEDURES
0 0
120V model 220V model
REF. REF.
NO. PARTS NO. DESCRIPTION N0. PARTS NOI DESCRIPTION
1 29050401 Master canon box 1 29050401 Master carton box
2 282301 Sealing hook 2 28230] Sealing hook
3 29090550 Pad (R) 3 29090550 Pad (R)
4 29090549 Pad (L) 4 29090549 Pad (L)
5 29100034A 650 x 850mm, Poly bag 5 29100034A 650 x 850mm, Poly bag
6 29360363 Caution label (C) 8 260012 Damplon tape
7 29360378 Label 9 Accessary bag assy
8 260012 Damplon tape 29365005 Warranty cardI
9 Accessary bag assy 29340468 Instruction manual
29340469 Instruction manual 292064A 5059-01, FM antenna
29365006 Warranty card 29100006 250 x 350mm, Poly bag
29358002 Service station list . : Only West Germany model.
292064A 5059-01, FM antenna
29100006 250 x 350mm, Poly bag
" : Only U.S.A. model.
