Onkyo TX 108 TX 88 Owners Manual

Page 1

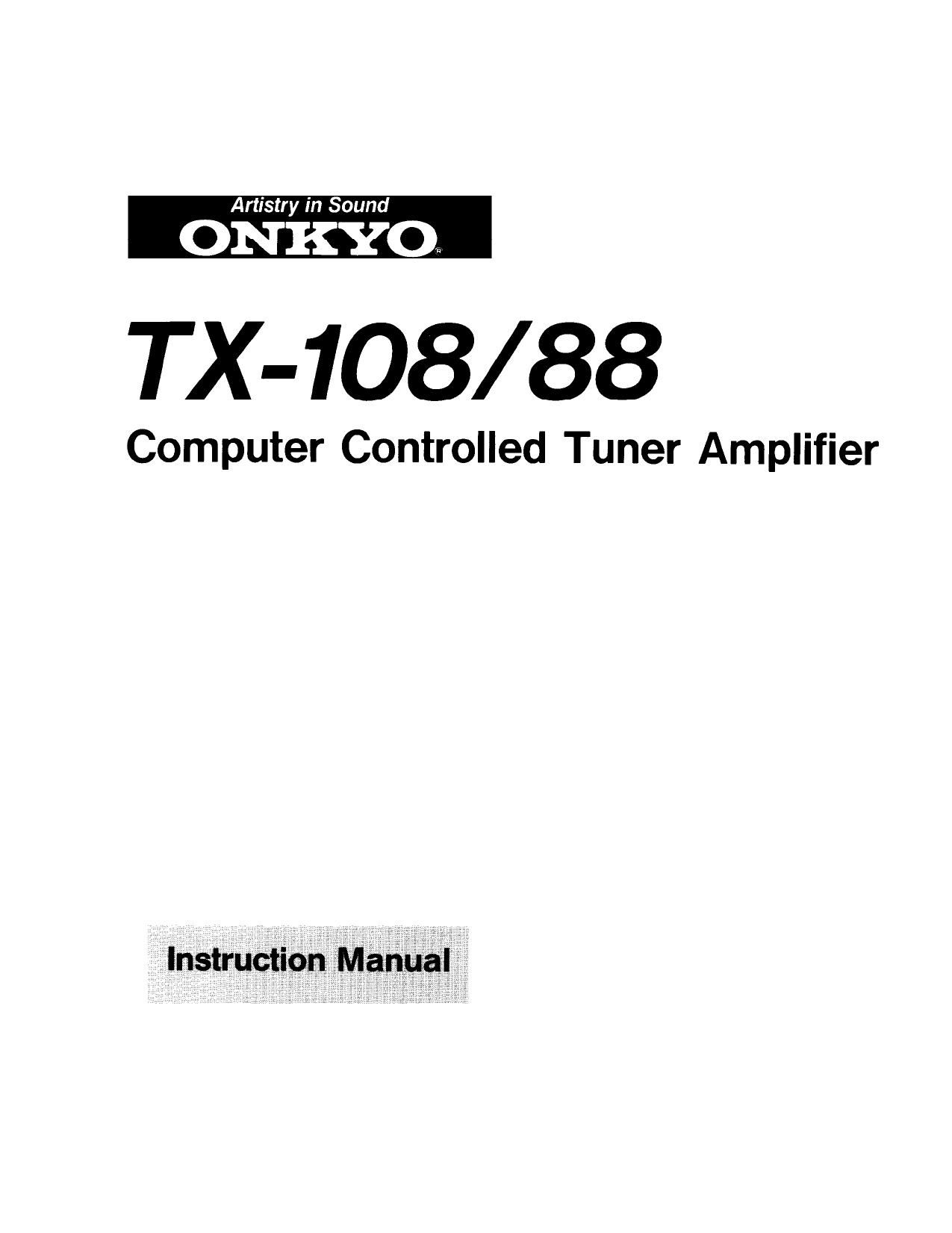

TX -108/ 88

Computer Controlled Tuner Amplifier

Page 2

0 Thank you for purchasing the ONKYO INTEGRA TX - 108/88 Tuner-Amplifier.

0 Please read this manual thoroughly before connecting up your new tuner-amplifier,
and turning It on. I Following the instructions in this manual will enable you to obtain
the utmost listening enjoyment from your new TX - 708/88, 0 Please keep the manual
for later reference.

CONTENTS

FEATURES ..............................
IMPORTANT SAFEGUARDS
PRECAUTIONS .................
SYSTEM CONNECTIONS
FRONT PANEL FACILITIES
OPERATIONS
TROUBLESHOOTING GUIDE.
SPECIFICATIONS ...........................................................................................................................................

l
2
2
3
6
10
14
15

FEA TURES

The lntegra Series brings together all of ONKYOS innovative technology and experience to deliver audio excellence, the Integra Series
TX~108/88 Tuner Amplifiers combine the best features oi standalone tuners and amplifiers to produce the ultimate in livelike sound rer
production.

The TX-108/88 Ieatures:

0 Microcomputer controlled functions
* A logic CIICUIII'Y controls the APR (Automatic Precision Reception) system, to obtain the best possible sound quality from FM

broadcasts. ONKYO's excluswe APR system automatically selects the optimum combination of RF sensitIVity, Hirblerid, mode and

noise reduction for superb reception

* The same processor also controls the random access, random program 16 station memory, and the tuning and input selectors, for

true ease of use.

0 Control center oi your audio visual system

The Real Phase Amp offers a complete range of userselectableturictions to make theTXi 08/88 the central controlling unit of a complete

home entertainment system
4' Sound Processor:
Simulated Stereo Imager (SSll, to broaden the stereo effect and sense of space. Dynamic Bass Expander (DBE), to dynamically

boost the bass according to the Input signal level.DynamIc Transient Expander (DTE), to enhance the gain for more dramatic sound

(TX<108)
.x Multiple Inputs:

Seven input terminals for full source versatility, including direct connection for CD player, two Video cassette recorders or Video disk

player to VCR (direct A/V dubbing capability), two tape recorders, tuner and turntable.
* Remote Control:

The remote control allows preCIse adjustment of the volume level from the listening position, An LED in the control knob gives a
visual indication of the volume setting, even from the other side of the room The remote control IS capable of selecting any connected
equipment, Including all inputs, all prerset stations, CD player controls, tape controls, and muting and power swnches. The ultimate
in user-convenience

High Power Output with Real Phase

The TX»108 and TX788 deliver plenty of clean power even into low impedance loads. and have lots to spare for effortless handling of
instantaneous signal peaks, making the amplifier section: truly the equal of even much more expensive integrated amps Bnih also Feature
Onkyo's excluswe Real Phase lor clear, accurate stereo Imaging and extra definition. A special "Ianhase" transformer (In addition to
the power transformer) flattens out" the charging currents in the power supply Since the currents are no longer modulated by very low
frequency input outdofrphase Signals that could muddy the sound. As an added convenience. the back panel is equipped With heavy-duty
speaker terminals, specially designed to accomodate both single and parallel banana plugs (TXJOS).

WARNING

"TO REDUCE THE RISK OF FIRE on
ELECTRIC SHOCK. DO NOT expose
THIS APPLIANCE TO RAIN on
MOISTURE.

O The lightning flash with arrowhead symbol.
Within anequilateral triangle. is intended toalert
CAUTION 1! the user to the presence of uninsulated oanv
To REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT serous v0|iaQEwithIn1he products enclosure

REMOVE COVER (OR BACK) NO USER-SERVICEABLE that may be of sufficient magnitude to constitute

PARTS INSIDE. FIEFER SERVICING TO QUALIFIED SERVICE 3 5" °' 6'90 5m '° mm

The exclamation point Within an equilateral

PERSONNEL" '
triangle is Intended to alert the user to the
CAU TION presence 0! important operating and mainte-
nance (serVICIngl Instructions In the literature

RISK OF ELECTRIC SHOCK accompanying the appliance
DO NOT OPEN

Page 5

VlDEO Disc PLAYER
or VIDEO CASSETTE
PLAYER (VCR l)

imam Y Sli.
antenna in 3
FM Oultttiur Ar

75 (mm tudxld whle
l3C 2V 5c M"

VIDEO CASSETTE

Monitor TV

Conrec: only one r V!
antenna m um- i n'u

RECORDER (VCRVZ)

75 (mm Com. mi N
AM Loop Ami-trim

from Cassette Tape
Deck»2. Turntable

,r

,__

|
|
|
i, i_J

[ll/i

/
\ //.

TURNTABLE \ \ 43f:

LVideo Cassette Recorder

Mode Swucii AC Power
W \ Supply

\ fit
, ;fi\ \ 9.3- if \@ i 34, i ~Worldimde
I ©E K @ models only

QQ COMPACT DISK . - to SPEAKEH lBi
L=& pLAVEH CASSEilE
774E? TAPE DECKV?

Ground connection is not necessary tor CASSETTE 0' GRAPHIC 4
turntables Without ground leads TAPE DECK i EDUALlZEH SPEAKER (A)

FM Antennas

The Tishaped antenna is included in the installation in
structions bag. Use the Tishaped antenna if you live in
an area where Signal strength of FM broadcasts is high.
Connect the antenna to the FM 300 ohm terminals and
place the antenna on a wall or other surface in the position
in which reception is best. If Signal strength is low in your
area, use a multi-element FM outdoor antenna and connect
to this unit using 75 ohm coaxral cable because this type
of cable is more resistant to interference than 300 ohm
cable. If the coaXial cable has an F type plug, insert it in
the 75 ohm coaxial Jack. Consult your Onkyo dealer about
the right type of antenna for your area.

NOTE;
Do not use the same antenna for both FM and TV (or
VCR) reception since the FM and TV (or VCR) signals
can interfere With each other. lf you must use a common
FM/TV (or VCR) antenna, use a directional linkage type
splitter.

Directional linkage

type splitter

To receiver To TV (or VCR)

AM Antenna

An AM loop antenna is included in the installation in-
structions bag. Insert it into the holder on the rear panel.
Swing one end of the antenna away from the rear panel
to the position that gives the best reception. lf reception
is still unsatisfactory, completely remove the loop antenna
from the rear panel and hang it on a wall or other surface
in the position that gives the best reception. Be sure the
antenna is not near speakers, power cords, television sets,
VCR's, and motorized appliances. When using an outdoor
AM antenna, do not remove the loop antenna. Connect
both antennas to the AM antenna terminals.

ri

NOTE:
AM reception lS easily affected by television sets and
VCRs Therefore, AM reception may be poor if this unit
is placed too closed to a TV or VCR.

Speaker Connections

When connecting speakers, proper polarity is important.
Always connect the (+) terminal (red) on the amplifier to
the (+) terminal on the speaker and the (7) terminal (black)
on the amplifier to the (4) terminal on the speaker.

0 Speaker load impedance is very important. Only speaker
systems rated at 8 ohms or more should be used With
this unit, If only one pair of speakers is used, the load
impedance must be at least 4 ohms.

Page 12

The frequency display will immediately stop increasing
or decreasing.

I Key Touch Tone

A soft beep is emitted each time an input selector, tuning
operation key is used or power is switched on (and
system power is switched off). A rear panel key touch
tone on/off switch is provided to allow sWItching this
function off if desired.

Memory Function

T

his unit can store a total of 16 FM and AM stations in

the memory for instant recall at any time without using the

T
F

uning selector. The stations can be any combination of
M and AM broadcasts. Read the following directions

carefully to avoid mistaken operations.

1 .

Confirm that both Tape Monitor switches
press the TUNER Input Selector switch I, press the
FM/AM Selector switch of the band of the station
to be placed in the memory and set the Shift key
to the l -8 or 9716 range, depending on which memory
channel is to be used.

. Tune in the broadcast to be placed in the memory using
the Tuning selector 2

. Depress the Memory key and, while the Memory
indicator remains lit (about 5 seconds), depress one
of the Preset keys -.

. When the Preset key is depressed, the Memory indicator
wrll go out and the indicator above the depressed Preset
key WIII light. The frequency currently shown in the
frequency display is now stored in the memory.

. If the Memory indicator goes out before you have de-
pressed one of the Preset keys, simply press the Memory

again to give yourself another 5 seconds.

. Placing another broadcast in the same memory channel

automatically cancels the station previously stored in

that channel.

Notes

p
F
6

reset frequencies can be transferred to other channels.
or example, the FM station stored on Preset key number
can be transferred to Preset key numberl in the following

manner.

1) Press the FM Selector switch

2) Press Preset key numbe 6

3) Press the Memory key
lights.)

4) Press Preset key number I.

5) The same station is now stored on both preset keys
1 and 6.

(The Memory indicator

Memory Preservation

This unit does not require memory preservation batteries A
builtrin memory power back-up system preserves the contents
of the memory during power failures and even when the unit
is unplugged. The unit must be plugged in and the Power switch
turned on and off once in order to charge the backup system.
Note that sincethis is not a permanent memory. the Power switch
must be turned on and oil a few times each month to keep the
backup system operative

The memory preservation period after power has last been turned
off varies depending on climate and placement of the unit. On
the average. memory contents are protected over a period of 3
to 4 weeks after the last time power has been turned oft This
period is shorter when the unit Is exposed to high humidity
climate.

Compact Disc Player

1

. Connect the CD player to the CD inputs.

2

3.

Press the CD Input Selectors switches I, and confirm
that the Tape-2 Monitor switch are off.
Follow the operating instructions for the CD player.

Phonograph Records

1 .

2.

3.

Connect the turntable to the PHONO inputs. Turntables
provided with GND wires shall be connected to the
ground terminal.

Press the PHONO lnputSelectorswitch ',and confirm
that the Tape-2 Monitor swrtch are off.

Follow turntable operating instructions.

Tape Playback

1.

2.

3.

Connect the output leads from the tape deck to the
TAPE-1 or 2 PLAY inputs.

Press the TAPE-1 Input Selector-SWitch or TAPE-2
Monitor switch depending on which pair of TAPE
PLAY inputs the deck is connected to.

Follow tape deck operating instructions for playback.

Tape Recording

1.

2.

Make all connections between the tape deck and the
unit as shown in the System Connections diagram.

Radio: Press the TUNER Input Selector swrtch
and set the FM/AM Selector switch
to FM or AM.
Records: Press the PHONO Input Selector switch
I.
CD: Press the CD Input Selector switch -.

VCRA1 /VDP: Press VCR-1 /VDP Input Selector swrtch

VCRVZ: Press the VCRVZ Input Selector swrtch I.

. Put the tape deck in the recording mode. The recording

can be monitored through the speakers or headphones
as desired. When recording on tape deck 2, press the
TAPE~Z monitor switch to hear the signal that,
havrng been recorded, IS returned from the deck to the
TX7108/88 (if the deck has three heads)

. Set the proper recording level using the controls on the

tape deck used for recording. Also, during recording
and dubbing operations, never change the posuions
of any controls (bass, treble, etc.) on this unit.

Tape-to-Tape Dubbing

T .

2.

Connect the two tape decks to this unit as shown in
the System Connections diagram.

Load the original tape in tape deck 1 and the blank tape
in tape deck 2.

. Press the TAPEeI Input SelectorrSWitch and

TAPEVZ Monitor switches (both indicators light)

. Put tape deck 1 in the playback mode and tape deck 2

in the recording mode. Follow tape deck operating in
structions

. Thesource signal can be monitored through the speakers

or headphones, when TAPE»2 monitor swrtch
OFF position. If tape deck] has three heads. the
JUSI'leCOIdBd Signal can be monitored (when TAPE72
monitor swnch is in "ON posrtiori)

G raphic Equalizer

l.
2.

3.
4. Follow the graphic equalizer operating instructions.
5.

-11..

Connect the graphic equalizer to the TAPE-2 Jacks,

If a second tape deck is used, connect it to the tapejacks
on the graphic equalizer.

Press the TAPEVZ Monitor swrtch [Z]

To record an equalized Signal, use tape deck 2 (con-
nected to the equalizer) for recording.
