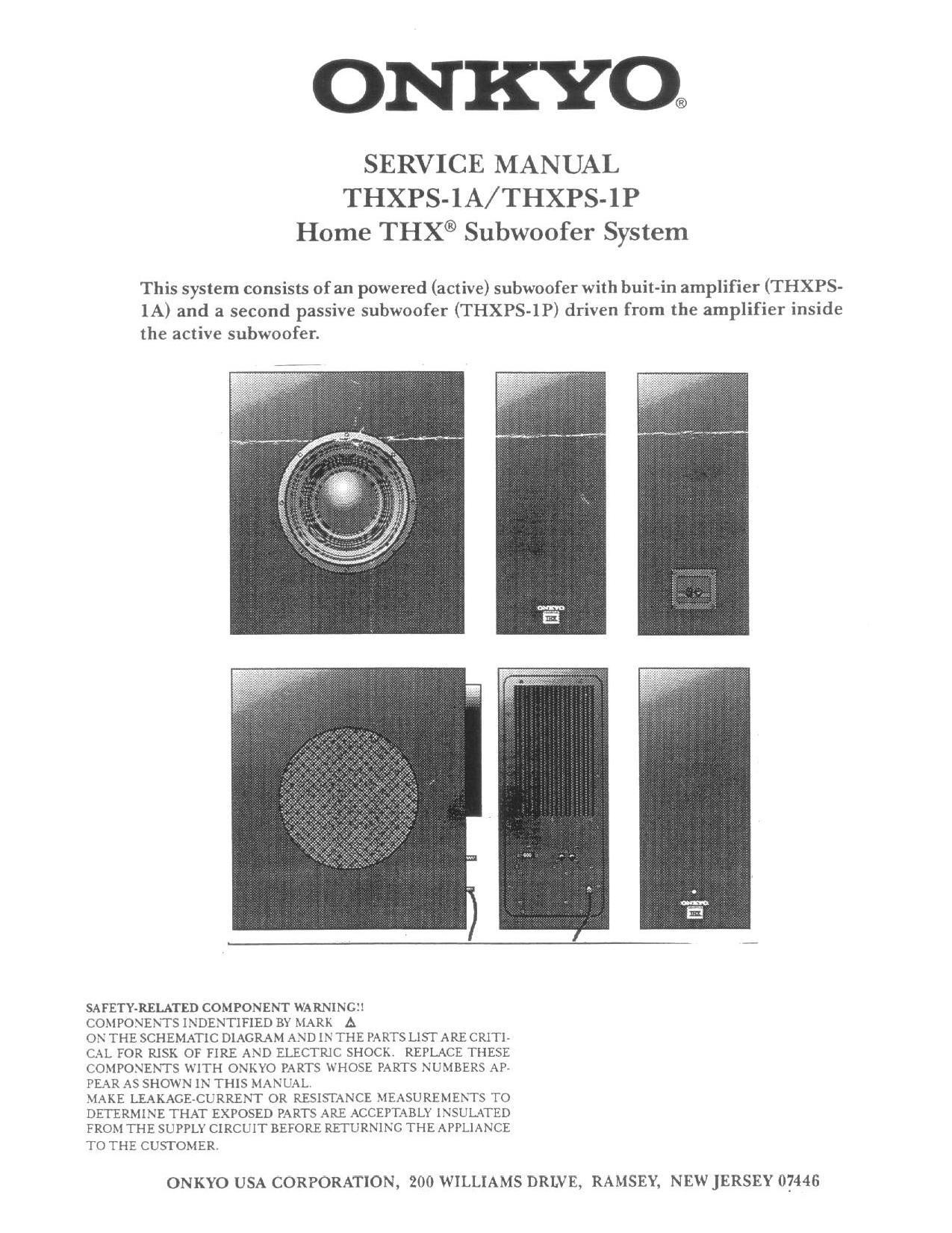

ON KYO®
SERVICE MANUAL
THXPS-lA/THXPS-l P
Home THX® Subwoofer System
This system consists ofan powered (active) subwoofer with buit-in amplifier (THXPS-
1A) and a second passive subwoofer (THXPS-IP) driven from the amplifier inside
the active subwoofer.
SAFETY-RELATED COMPONENT WA KNINGII
COMPONENTS INDENTIFIED BY MARK A
ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITI-
CAI. FOR RISK OF FIRE AND ELECTRIC SHOCK, REPLACE THESE
COMPONENTS WITH ONKYO PARTS WHOSE PARTS NUMBERS APV
PEAR AS SHOWN IN THIS MANUAL
MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO
DETERMINE THAT EXPOSED PARTS ARE ACCEPTABLY INSULATED
FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE
TO THE CUSTOMER.
ONKYO USA CORPORATION. 200 WILLIAMS DRLVE, RAMSEY, NEW JERSEY 07446
Page 2
In order to remove grille, apply heat (heat gun) on outer edge of
grille in order to loosen glue on grille pegs.
/- Wood screw
FacetQ
-1 Wood screx
assembly
\G
