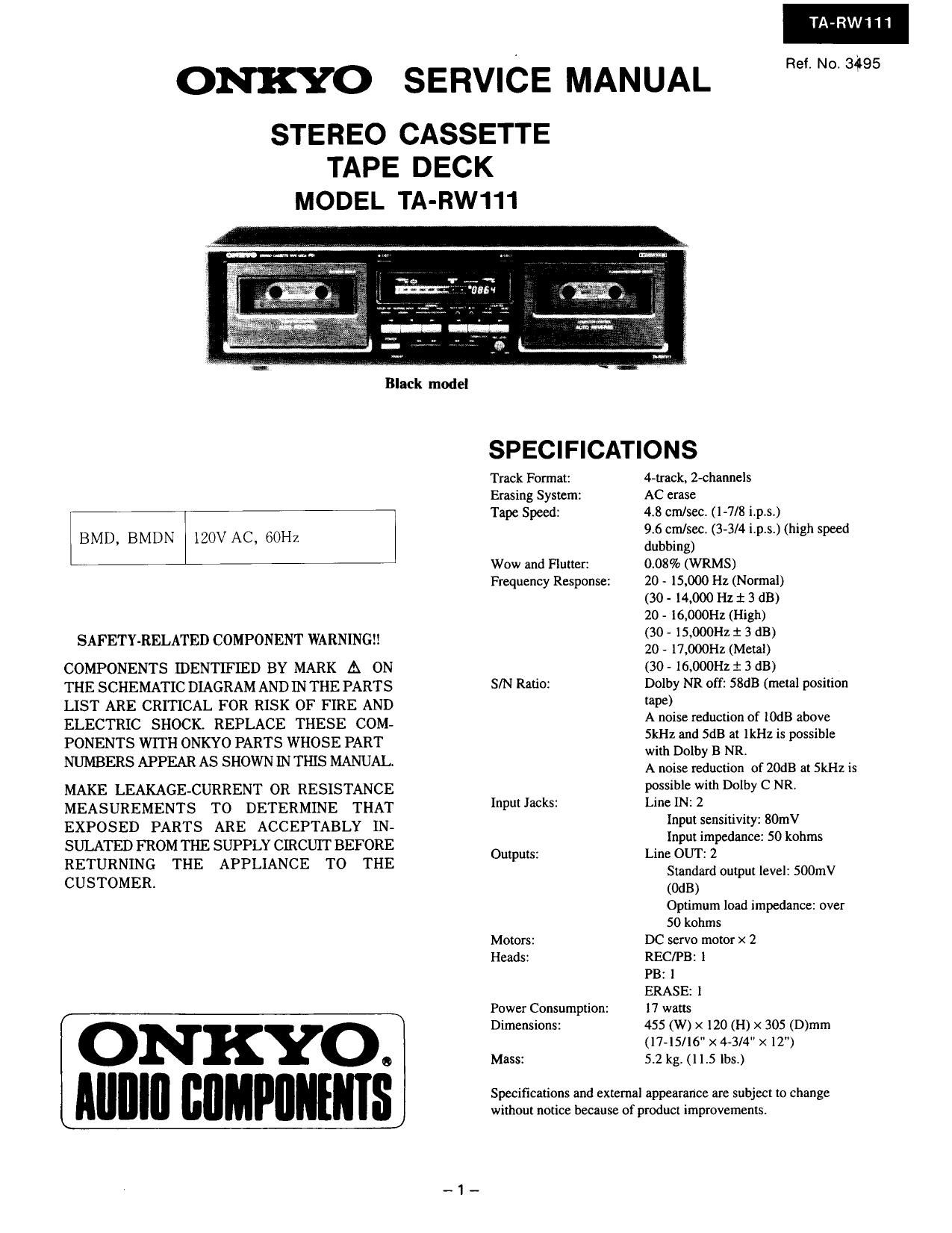

Page 1
TA-RW1 1 1
Ref. No. 3495
ONKYO SERVICE MANUAL
STEREO CASSETTE
TAPE DECK
MODEL TA-RW111
Black model
SPECIFICATIONS
BMD, BMDN 120V AC, 60Hz
SAFETY-RELATED COMPONENT WARNINGII
COMPONENTS IDENTIFIED BY MARK A ON
THE SCHEMATIC DIAGRAM AND IN THE PARTS
LIST ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE THESE COM-
PONENTS WITH ONKYO PARTS WHOSE PART
NUMBERS APPEAR AS SHOWN IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT
EXPOSED PARTS ARE ACCEPTABLY IN-
SULATED FROM THE SUPPLY CIRCUIT BEFORE
RETURNING THE APPLIANCE TO THE
CUSTOMER.
ONKYO.
MIIIIII IIIIMI'IIIIIIIIS
Track Format:
Erasing System:
Tape Speed:
Wow and Flutter:
Frequency Response:
SIN Ratio:
Input Jacks:
Outputs:
Motors:
Heads:
Power Consumption:
Dimensions:
Mass:
4-track, 2-channels
AC erase
4.8 cm/sec. (1-7/8 tips.)
9.6 cm/sec. (3-3/4 i.p.s.) (high speed
dubbing)
0.08% (WRMS)
20 - 15,000 Hz (Normal)
(30 - 14,000 Hz 1: 3 dB)
20 - 16,000Hz (High)
(30 - 15,000Hz: 3 dB)
20 - 17,000Hz (Metal)
(30 - 16,000Hz i 3 dB)
Dolby NR off: 58dB (metal position
tape)
A noise reduction of 10dB above
SkHz and SdB at lkHz is possible
with Dolby B NR.
A noise reduction of 20dB at Skl-lz is
possible with Dolby C NRI
Line IN: 2
Input sensitivity: 80mV
Input impedance: 50 kohms
Line OUT: 2
Standard output level: SOOmV
(OdB)
Optimum load impedance: over
50 kohms
DC servo motor x 2
REC/PB: l
PB: I
ERASE: l
17 watts
455 (W) x 120 (H) X 305 (D)mm
(17-15/16" x4~3/4" X I2)
5.2 kg. (11.5 lbs.)
Specifications and external appearance are subject to change
without notice because of product improvements.
