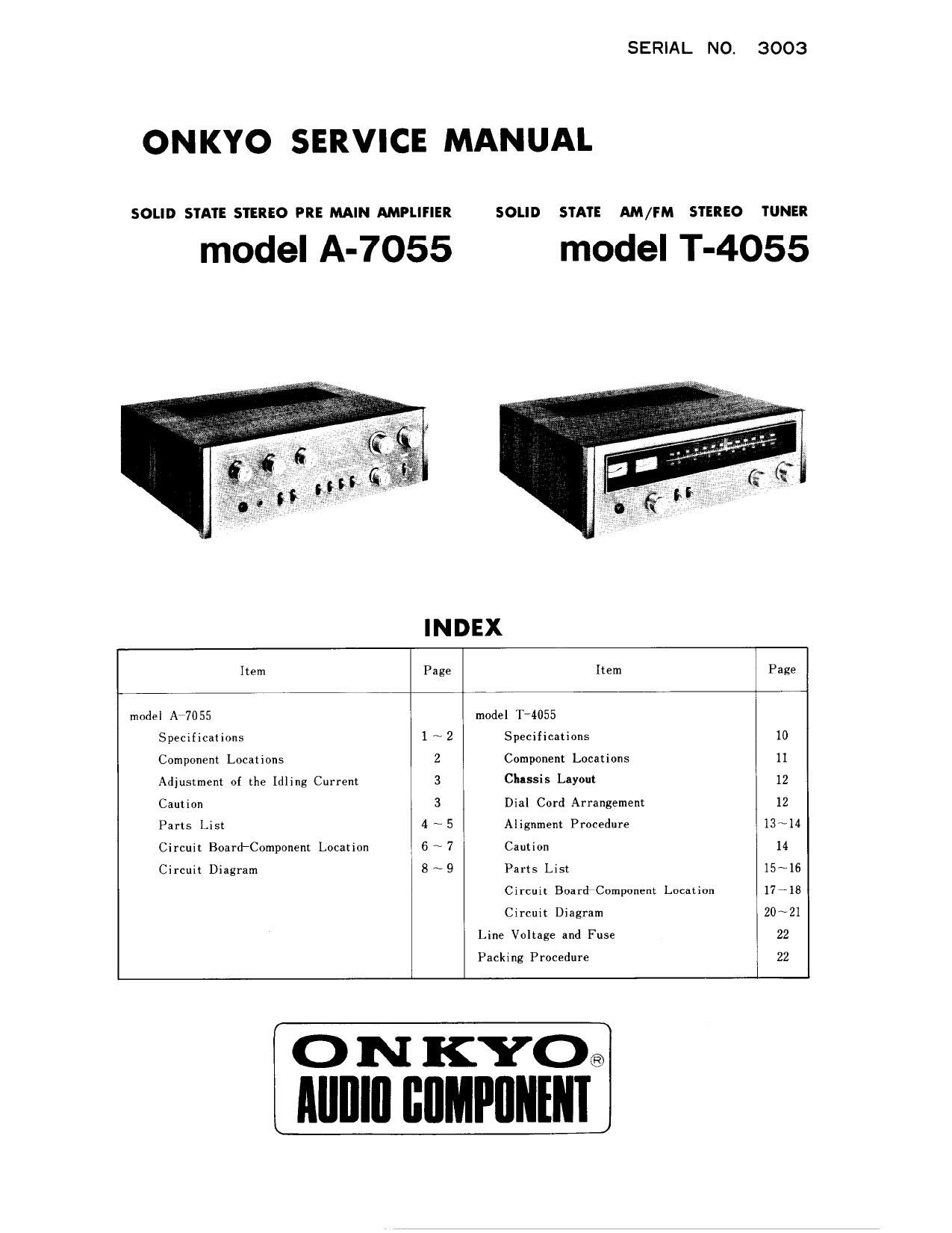

Page 1
SERIAL NO. 3003
ONKYO SERVICE MANUAL
SOLID STATE STEREO PRE MAIN AMPLIFIER SOLID STATE AM/FM STEREO TUNER
model A-7055 model T-4055
INDEX
Item Page Item Page
model A4055 model T4055
Specifications 1 *~ 2 Specifications 10
Component Locations 2 Component Locations 11
Adjusment of the Idling Current 3 Clnssis Layout 12
Caution 3 Dial Cord Arrangement 12
Parts List 4 ~ 5 Alignment Procedure ISNM
Circuit BoankComponent Location 6 N 7 Caution 14
Circuit Diagram 8 ~ 9 Parts List 15N16
Circuit BoarrkComponent Location 17-43
Circuit Diagram 20~21
Line Voltage and Fuse 22
Packing Procedure 22
o N KYO®
Alllllll IIIIMPIIIIENI
