Onkyo SWA 155 X Service Manual
This is the 13 pages manual for Onkyo SWA 155 X Service Manual.
Read or download the pdf for free. If you want to contribute, please upload pdfs to audioservicemanuals.wetransfer.com.
Extracted text from Onkyo SWA 155 X Service Manual (Ocr-read)
Page 1

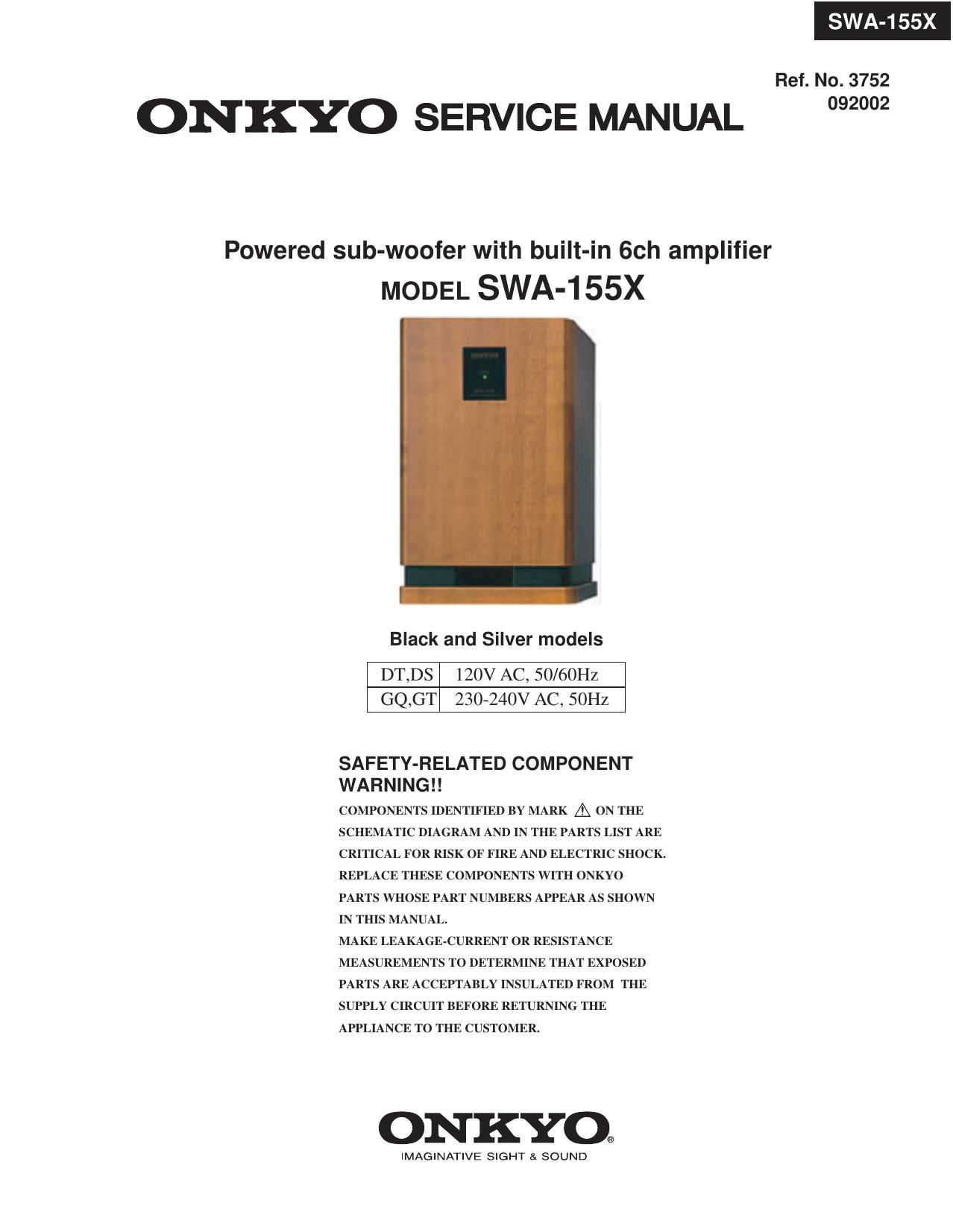

SWA-155X
Rei. No. 3752
ON KYO SERVICE MANUAL 092002
Powered sub-woofer with built-in Gch amplifier
MODEL SWA-155X
Black and Siiver models
DT,DS 120V AC, 50/60Hz
GQ,GT 230-240V AC, SOHZ
SAFETY-RELATED COMPONENT
WARNING! !
COMPONENTS IDENTIFIED BY MARK A ON THE
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
ONKYO®
IMAGINATIVE SIGHT & SOUND
